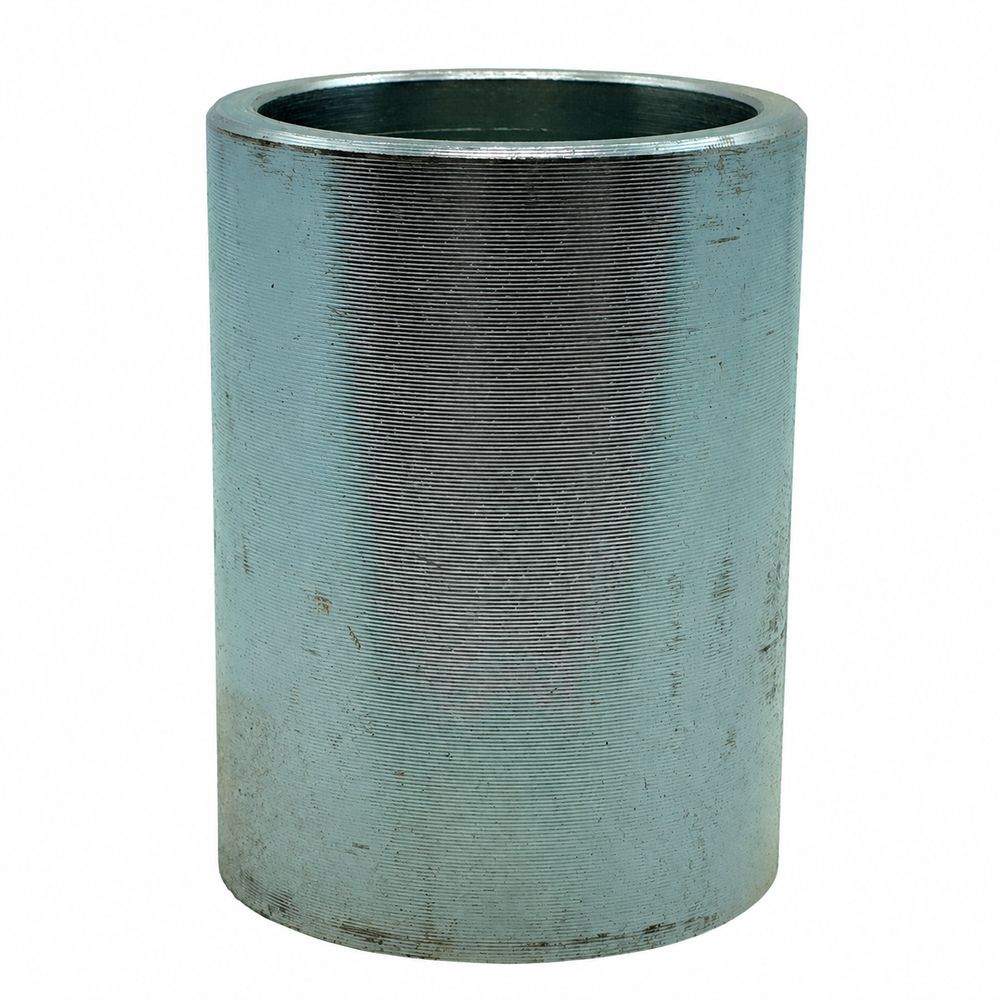

Ferrule – PTFE 100R14 Hose – FS‑R14 – Crimp-On

The crimp-on ferrule sized for SAE 100R14 PTFE hose with stainless steel braid. R14 sits at its own outside diameter and crimp figure, so it does not share a ferrule with braided hose.

Mild steel body with a plated finish, sized to suit SAE 100R14 PTFE hose with stainless braid.

This is the ferrule only – tails are sold separately

A two-piece crimp-on assembly is two separate parts: a hose tail (the stem that carries the thread) and this ferrule, which crimps over the hose. The tail is not included. You need one ferrule per tail.

🔗 Browse two-piece hose tails

How to Choose

• Match the ferrule to your hose type first, then the size. 100R14 PTFE only – the stainless braid sits at a different diameter to wire braid.
• Order the same dash size as the hose bore. One ferrule per tail.
• Never mix systems – a tail from one manufacturer with a ferrule from another will not crimp to a safe diameter.

Crimp Dimensions

Crimp to the figure on the 2026 chart for your exact hose, measured across the flats, and check it with calipers at two points 90° apart before the assembly goes near a machine.

📄 Crimp Dimensions Chart (PDF)

Technicians Advice

PTFE liners do not recover if you crush them. Crimp once, to the R14 figure, and measure it. Keep the hose straight for the first hundred millimetres out of the ferrule – PTFE kinks permanently, and a kink at the crimp is where these assemblies fail.

Where You’ll Find It

• High-temperature and chemically aggressive lines – steam, solvents, fuel, brake and clutch circuits, and food-grade transfer.

Downloads

📄 Crimp Dimensions Chart (PDF) 📄 Thread Identification Chart (PDF)

Other Ferrule Styles

🔗 See all crimp ferrules
