Female Rod Clevis for AG Hydraulic Cylinders, 3/4", 1" and 1-1/4" Pin, UNF Thread

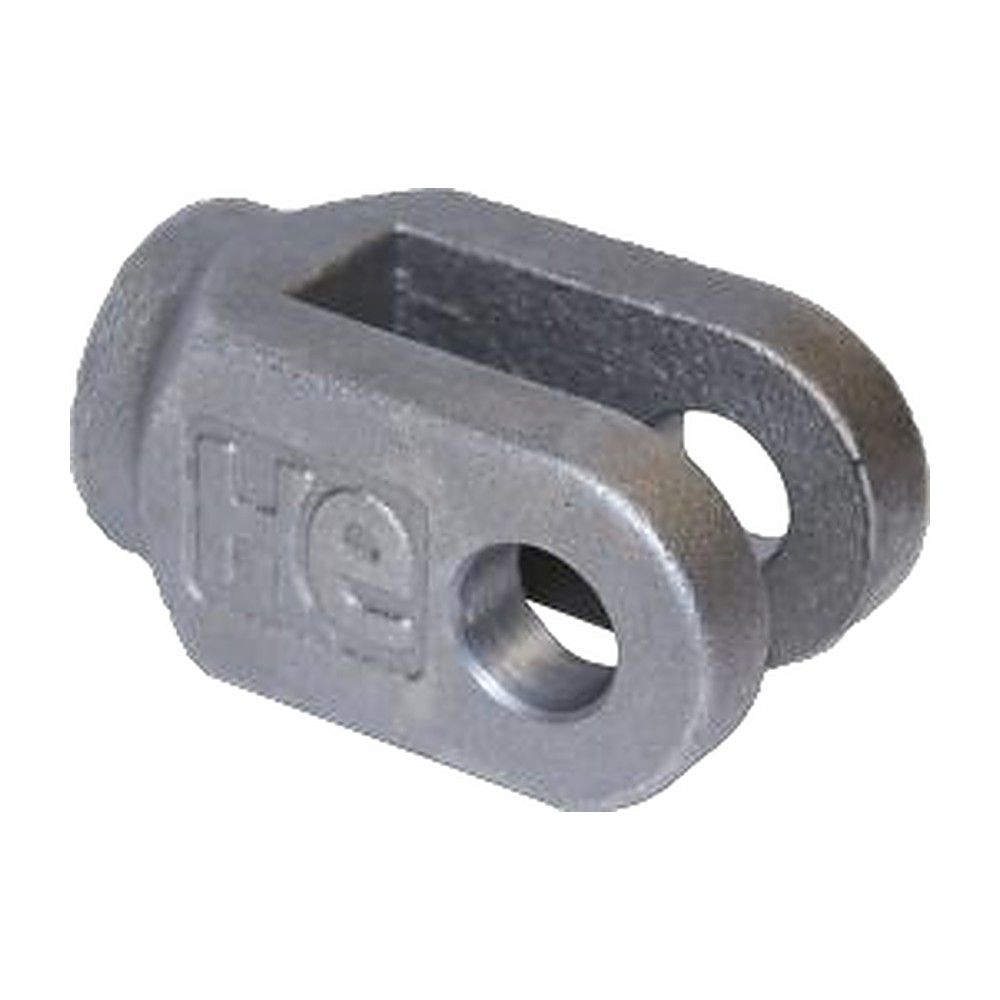

The cast steel clevis that screws onto the rod of an AG style cylinder. Use it to replace a damaged clevis, to convert a 4" cylinder up to a 1-1/4" pin, or to fit a clevis to a rod you are building yourself. Pick your pin and thread below and it is on its way.

Ways to buy this part:

• Off the shelf in four pin and thread combinations.
• Pins sold separately, see the clevis pin listing below.
• Need a different thread or pin size? Call us.

Pick your clevis

What is in the box

• 1 x cast steel female rod clevis.
• 1 x grub screw and plastic insert to lock it to the rod.
• Clevis pin not included.

Specifications

How to choose

• Match the rod thread first. Measure the thread diameter on the rod end.
• Then pick the pin size that suits the mount on your machine.
• On 4" bore cylinders the standard clevis takes a 1" pin. HC125-125CLEVIS converts the rod end to a 1-1/4" pin. You also need the matching base end parts to convert both ends.
• Not sure? Send us a photo of the rod end and we will tell you.

Technicians Advice

Clean the rod thread and the clevis thread with brake clean before fitting, then use a medium strength thread locker such as Loctite 243 as well as the grub screw. The grub screw and nylon insert stop the clevis backing off, they are not what holds the load, so the clevis must be screwed fully home onto the rod shoulder. Line the clevis up square to the base end before you tighten the grub screw. A clevis that is a few degrees out puts a twist in the rod every stroke, and that wears the gland seal and rod bush long before their time.
