Electro Remote Control Hydraulic Valve 5 Functions 3 x Remote 80LPM (NO HANDLES)

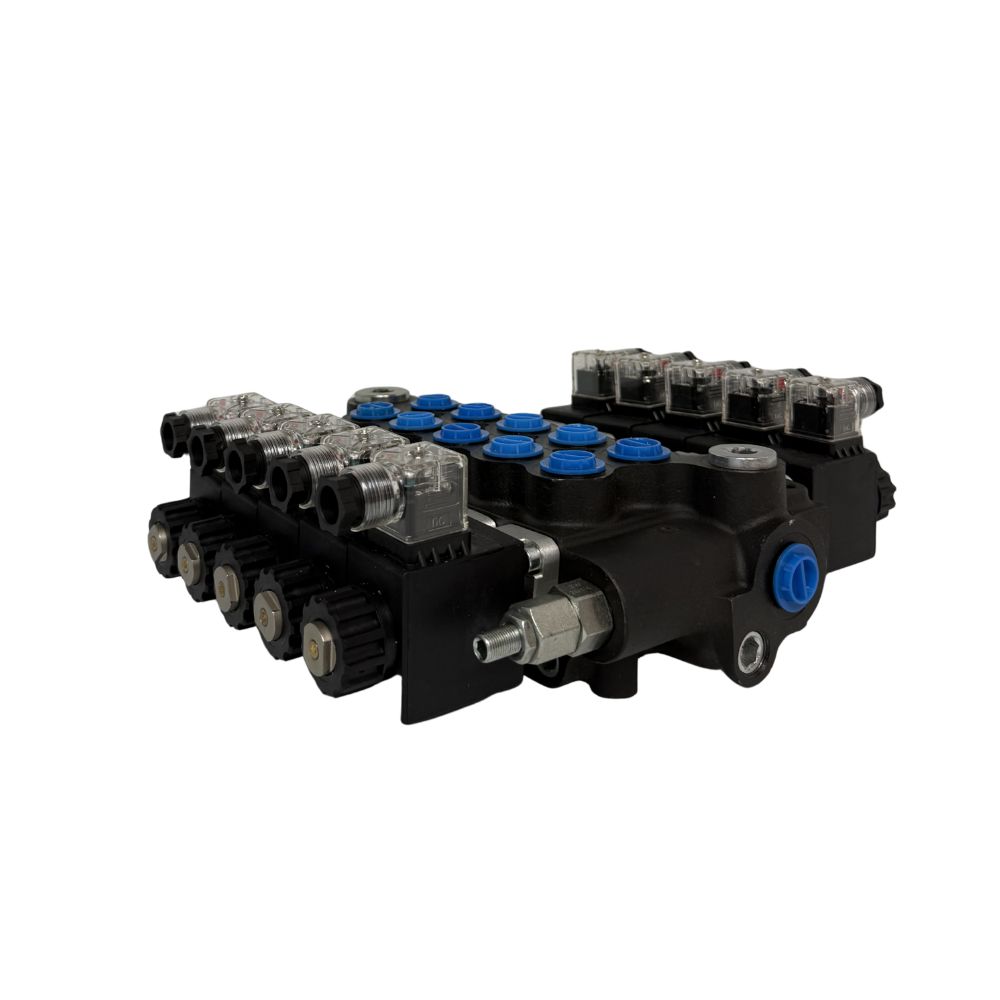

Handleless Electro-Hydraulic 5 Spool Monoblock Valve 80L/min 250 Bar – SKU MBV-80-55-EE-24, designed for fully electric hydraulic control systems in mobile plant, industrial machinery, and remote-controlled applications.

This listing is for the hydraulic valve only and includes electro-hydraulic solenoids. The radio remote kit is not included and can be purchased separately here: Remote Kit Listing

Features:

• 5 Spool Monoblock Valve (10 Functions Fully Electrically Controlled)

• Handleless Design – No Manual Levers for Clean Installations

• 10 Electro-Hydraulic Solenoids (2 Per Spool)

• Designed for Full Electric or Remote Control Operation

• Compact and High Efficiency Design

• Durable Steel Construction with Case Hardened Steel Spools

• Cylinder Spools for Load Holding When Power is Released

• Spring Return to Centre for Safe Operation

• Adjustable Built-In Relief Valve

Key Benefits:

• Ideal for Fully Automated or Remote-Controlled Systems

• Eliminates Manual Operation for Increased Safety and Efficiency

• Clean and Compact Installation Without Lever Assemblies

• Compatible with PLC, Switch Panels and Radio Remote Systems

• Reduced Operator Fatigue and Increased Productivity

Common Applications:
• Tilt Tray Trucks and Recovery Vehicles
• Crane Trucks and Mobile Plant
• Industrial Machinery and Automation Systems
• Agricultural and Excavation Equipment
• Any Hydraulic System Requiring 5 Functions with Electric Control

Specifications:

• SKU: MBV-80-55-EE-24
• Construction: Monoblock Steel
• Spool Material: Case Hardened Steel
• O-Rings: NBR (Buna-N®)
• Number of Spools: 5
• Electro-Hydraulic Actuators: 10
• Spool Type: Cylinder
• Spool Movement: Solenoid Actuated, Spring Return to Centre
• Coil Voltage: 24V DC
• Coil Duty Cycle: 100%
• Max Flow Rate: 80 Litres/Minute (20 GPM)
• Max Working Pressure: 250 Bar (Approx. 3600 PSI)

Port Sizes:

• Pressure Port: 1/2" BSPP
• Cylinder Ports: 1/2" BSPP
• Tank Port: 3/4" BSPP
• Power Beyond Port: 1/2" BSPP

Additional Information:

• Operating Temperature: -20°C to +80°C
• Compact Design for Space-Constrained Installations
• Suitable Replacement for Manual or Air Operated Valve Systems
• Requires Clean, Filtered Hydraulic Oil for Optimal Performance
• Designed for Integration with Electrical Control Systems
• Professional Installation Recommended for Electrical Integration

Hydraulic.Online supplies a full range of compatible fittings, adapters, hoses and accessories to support complete system setups.
