The ETB (Extreme Task Block) Series is a professional-grade solution for 24 Volt DC mobile hydraulic systems.

Designed for higher efficiency and lower current draw, the ETB is a fully self-contained, weather-protected hydraulic station.

With its integrated steel reservoir base and quick-connect Anderson power supply, it eliminates the need for custom fabrication and complex wiring, providing a "plug-and-play" experience for trucks, trailers, and heavy mobile machinery.

Available Configurations

• P&T (Pressure and Tank): Designed for remote / external manual or electric Hydraulic flow control Valves; includes a built-in wiring loom with 3m flying leads for external control connection.
• SA (Single Acting): Suitable for gravity return systems (such as Tippers and Scissor Lifts); includes the KCB21 quick-connect pendant controller.
• DA (Double Acting): For power extend and retract functions. Available in 1x Circuit (KCB22) or 2x Independent Circuits (KCB42) with quick-connect pendants.
• Notes on Power Supply: This unit requires a pre-wired battery cable with a 150 or 200 Amp Anderson-style plug and circuit breaker
  (Sold Separately). (order here).

Performance Specifications

Maximum Operating Pressure: 210 bar (3045 PSI) across all models.

⚠️ Operational Duty Cycle: Intermittent Use Only

This unit is engineered for high-torque, short-duration "sprinter" tasks. To protect the motor windings and oil integrity, follow the 2-on / 10-off rule:

• Maximum Continuous Run Time: 2 Minutes.
• Required Cooling Rest: 10–15 Minutes.
• Note: Not suitable for continuous-run hydraulic motors or constant-flow agricultural implements.

Industry Applications

• Demountable Systems: Skip bin loaders, hook-lift trays, and slide-on service bodies.
• Heavy Transport: Livestock crate ramps, low-loader deck leveling, and OTR tire carriers.
• Recovery & Maintenance: Tilt-tray winches, mobile tire presses, and hydraulic cabin tilts.
• Civil & Construction: Portable lighting towers, VMS signage, and temporary security bollards.

Security & Site Safety

• Removable Pendant: Prevent unauthorised use by unplugging the quick-connect pendant handset when leaving the site.
• Integrated Isolator: Features a heavy-duty battery isolator switch for mechanical lockout during transit or maintenance.
• Steel Vault Enclosure: The 2mm powder-coated steel shell protects solenoids and relays from weather, road debris, and tampering.

Pre-Installation Checklist

• Power Supply: Requires a pre-wired battery cable with a matching Anderson-style plug and circuit breaker
  (Sold Separately) (order here).


  • 2.2 kW Model → 150A Circuit Breaker
  • 2.8 kW Model → 200A Circuit Breaker
• Mounting: Unit weighs approximately 18kg (dry). Mount on a solid, level surface with adequate clearance for ventilation.
• Hydraulic Ports: Working ports are 9/16" UNO; Tank Filler Breather Port is 3/4" NPT.
• Fluid: Compatible with ATF (eg Dextron III) or ISO 32/46 hydraulic oil (Tanks are shipped dry).

What’s in the Box?

• ETB Power Unit: Fully enclosed 12V motor, pump, and steel reservoir.
• Control Interface: 3m Flying Lead (P&T models) OR Quick-Connect Pendant (SA/DA models).
• Safety Gear: Built-in battery isolator and mounting brackets.
• Manual: Full installation guide and wiring diagrams.

Technical Documents

• Download ETB Power Unit Drawing: Click here to download
• Download Wiring Diagram: Click here to download
• Download Installation Manual: Click here to download

"The ETB 24V Series: Optimized for high efficiency, lower current draw, and total reliability. Professional hydraulic power in a protected, plug-and-play package."

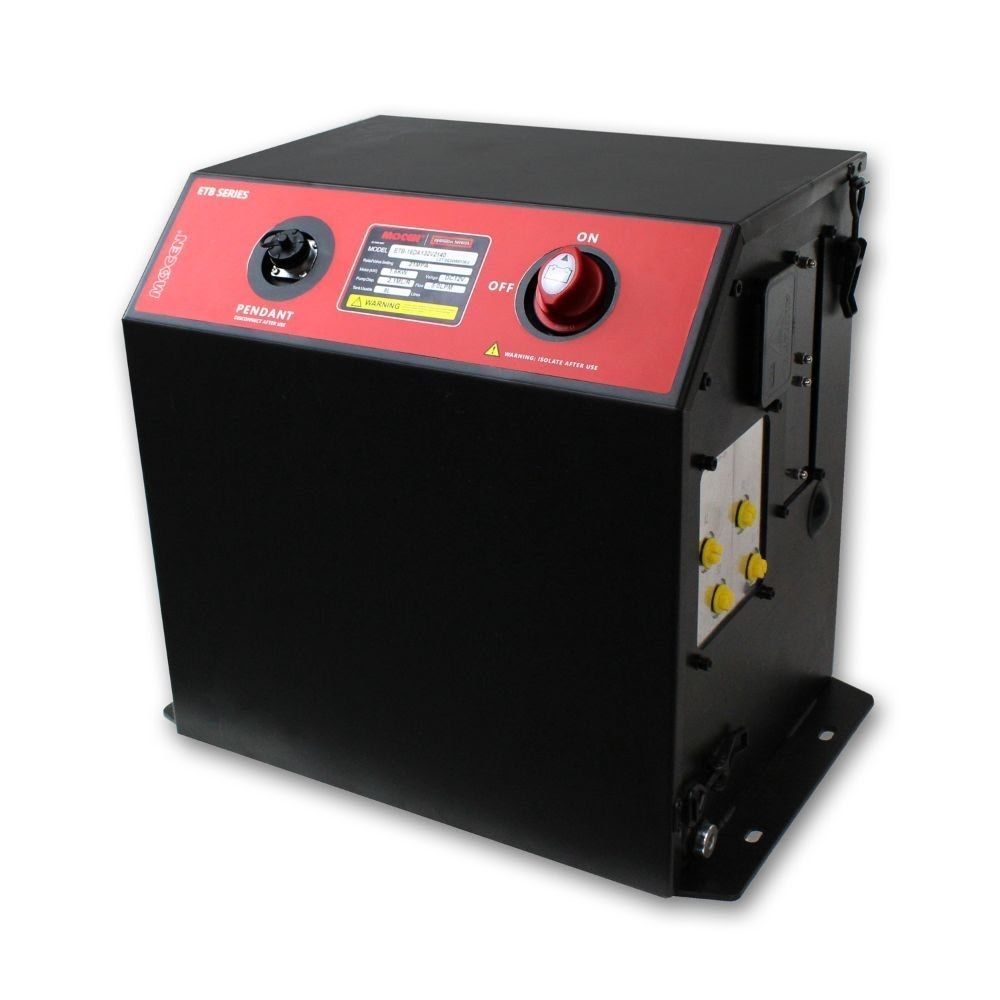

ETB 24V Hydraulic Power Pack – 2.2kW & 2.8kW

ETB Series power packs require a pre-wired battery cable with Anderson plug and circuit breaker, which must be purchased separately (order here).

Please note that all ETB power packs include the pendant control and flying lead wiring.

The ETB Series 24V Hydraulic Power Packs are designed for higher efficiency and lower current draw applications, making them ideal for trucks, trailers, and mobile hydraulic systems requiring reliable and consistent performance.

Available in 2.2kW and 2.8kW configurations, these units provide increased flow rates and smoother operation, while maintaining compact dimensions and robust construction. With multiple configurations including Power & Tipper (P&T), Single Acting, and Double Acting (1 or 2 circuits), the ETB 24V range delivers flexibility for a wide range of hydraulic applications.

Key Features

• 24V DC hydraulic power units
• Motor options: 2.2kW (2.1cc) and 2.8kW (3.2cc)
• Tank sizes: 8 litre and 15 litre
• Configurations: P&T, Single Acting, 1x Double Acting, 2x Double Acting
• Maximum operating pressure up to 21MPa
• Flow rates up to 10 LPM depending on model
• Heavy-duty steel reservoir with powder coating
• Integrated wiring and control systems
• Compact enclosed design for durability and protection

Performance Specifications

• Motor Size: 2.2kW
• Voltage: 24V
• Current: 120A
• Flow Rate: 5.2 LPM
• Tank Options: 8L / 15L

Motor Size: 2.8kW
Voltage: 24V
Current: 200A
Flow Rate: 10 LPM
Tank Options: 8L / 15L

Maximum Pressure: 21MPa across all models

Configuration Options

Power & Tipper (P&T) - Includes ETB-CM401-30 built-in wiring loom with flying leads, 3 metre cable
Designed for tipping applications with a 3 metre flying lead for external control connection

Single Acting (KCB21) - Includes ETB-KCB21 quick connec pendant controller with 3 metre cable
Suitable for single direction hydraulic systems with gravity return

1x Double Acting (KCB22) - Includes ETB-KCB22 quick connect pendant controller with 3 metre cable
Controls one double acting function

2x Double Acting (KCB42) - Includes ETB-KCB42 quick connect pendant controller with 3 metre cable

Controls two independent hydraulic circuits

Installation and Operation

The unit must be mounted on a solid, level surface with adequate clearance. Working ports are 9/16" UNO and tank port is 3/4" NPT. Each unit includes a battery isolator switch for safe operation and transport

Battery cable kits must be matched to the correct amperage:

• 2.2kW → 150A
• 2.8kW → 200A

Applications

Tipper trailers
Truck hydraulic systems
Agricultural equipment
Hydraulic lifts
Mobile hydraulic machinery

Summary

The ETB 24V Hydraulic Power Pack range provides efficient, high-performance hydraulic power with lower current draw and increased flow rates. Designed for demanding applications, these units offer reliability, flexibility, and ease of installation across a wide range of industries.
