Coupling Elements and Damping Rings for Hydraulic Drives

Store/Engines Petrol / Diesel/Bell Housings and Drive Couplers for Engines Pumps Gearboxes

Product Details

Weight: 0.05 kg

Coupling Elements (Spiders) & Damping Rings

Replacement flexible elements for series 0-6 jaw couplings, in standard rubber and high-torque polyurethane, plus noise-damping rings for electric motor drives.

Remember - a complete drive needs four parts: bellhousing + motor-side half + pump-side half + rubber element. This listing covers one of them; the others are linked below.

Use the dropdown to choose. All prices include GST.

Suits: All series 0/2/3/4/5/6 jaw coupling halves on this site; damping rings suit D80-D180 motors.

Sizes & Part Numbers

Item	SKU

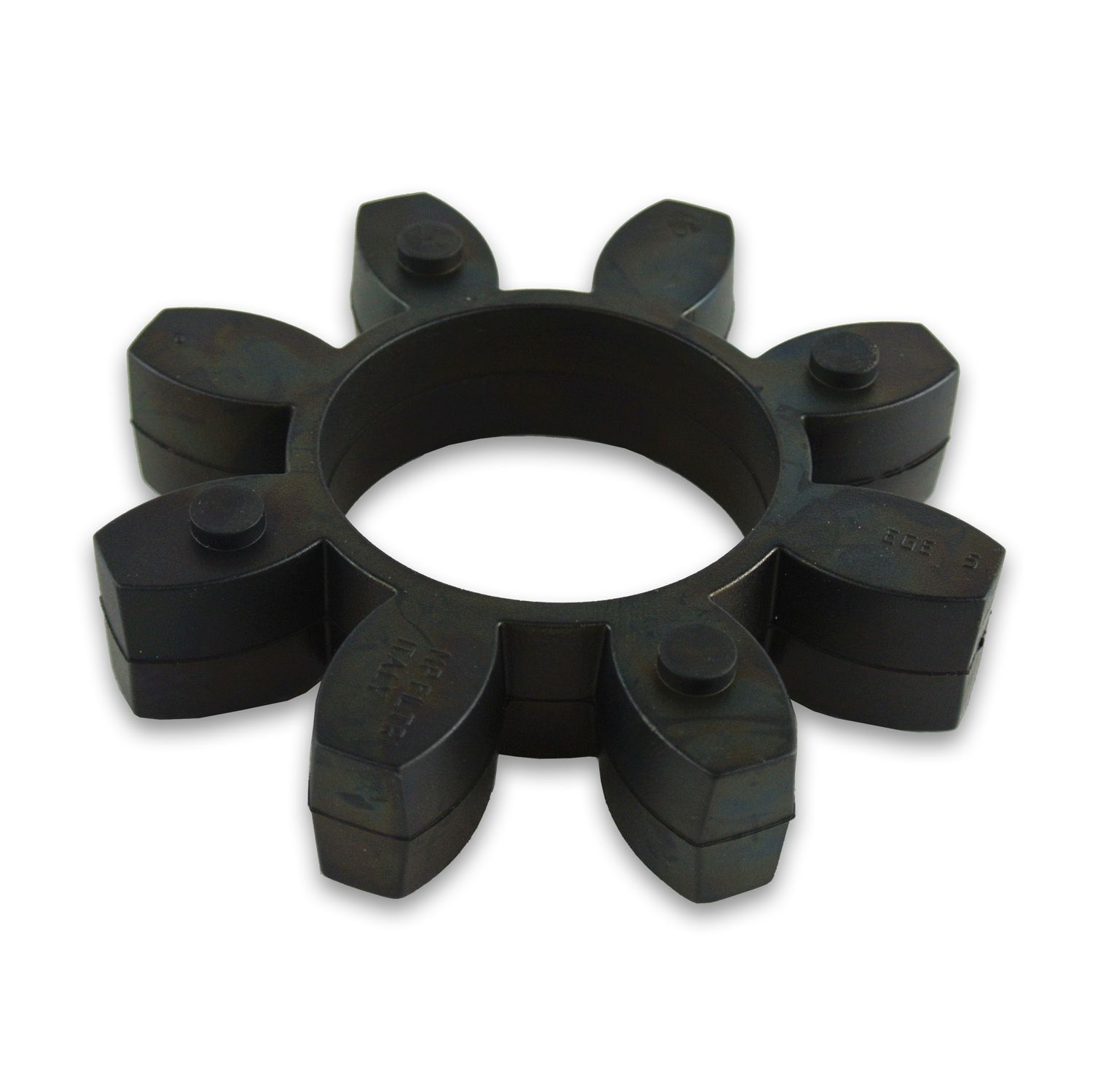

Element - Series 0 - Rubber 20Nm	EGE0
Element - Series 2 - Rubber 190Nm	EGE2
Element - Series 3 - Rubber 380Nm	EGE3
Element - Series 4 - Polyurethane 760Nm	EGE4RR
Element - Series 5 - Rubber 620Nm	EGE5
Element - Series 5 - Polyurethane 800Nm	EGE5RR
Element - Series 6 - Rubber 860Nm	EGE6
Element - Series 6 - Polyurethane 1100Nm	EGE6RR
Damping Ring - D80-90 Frame B3/B5	ANMA200
Damping Ring - D100-110 Frame B3/B5	ANMA250
Damping Ring - D132 Frame B3/B5	ANMA300
Damping Ring - D160-180 Frame B3/B5	ANMA350
Element - 48 Series - Rubber	R42
Element - 65 Series - Rubber	R62

How to Choose

Element series matches your coupling halves (0/2/3/4/5/6).
Rubber (shore 87) is the standard, quiet choice. Polyurethane (shore 92) for higher torque, shock loads and hot environments.
Damping rings sit between motor flange and bellhousing - up to 5dB noise reduction, pick by motor frame.

Technicians Advice

The element is the sacrificial fuse of the drive - inspect it yearly through the access hole. Torn lobes mean misalignment or undersized series, not bad rubber. Replace with the machine locked out; never run metal-to-metal even briefly. Keep a spare element with the machine - it is the cheapest part of the drive and the only one that wears.

Official Datasheets

📄 Elements & Damping Spec Sheet

Complete Your Drive

⭐ Complete Drive Kits - One Pick ⚙ Bellhousings DIN ⚙ Bellhousings SAE ⚙ Engine Bellhousings ⚙ Motor Side Halves ⚙ Pump Side DIN ⚙ Pump Side SAE ⚙ Elements ⚙ Flywheel Couplings ⚙ Accessories

Buy in bulk and save: 5+ units −5%, 10+ −10%, 25+ −12.5%, 50+ −15% — applied automatically in the cart.

Not sure which combination you need? Call us on 1300 146 737 or email sales@mhfgc.com.au with your motor and pump details - we will spec the full drive for you.
