Complete Drive Kit - Electric Motor or Engine to Hydraulic Pump
SKU KIT-D71-G1
AU$52.22
Bulk pricing available for quantities of 5 units or more
Motor or Engine / Pump
Please choose
In stock
1
Buy more, save more
| Quantity | Price per item | Discount |
| 5 items | AU$49.61 | 5% off |
| 10 items | AU$47.00 | 10% off |
| 25 items | AU$45.69 | 13% off |
| 50 items | AU$44.39 | 15% off |
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Complete Drive Kit - Electric Motor or Engine to Hydraulic Pump
Product Details
Weight: 2.30 kg
Complete Drive Kits - Motor or Engine to Hydraulic Pump

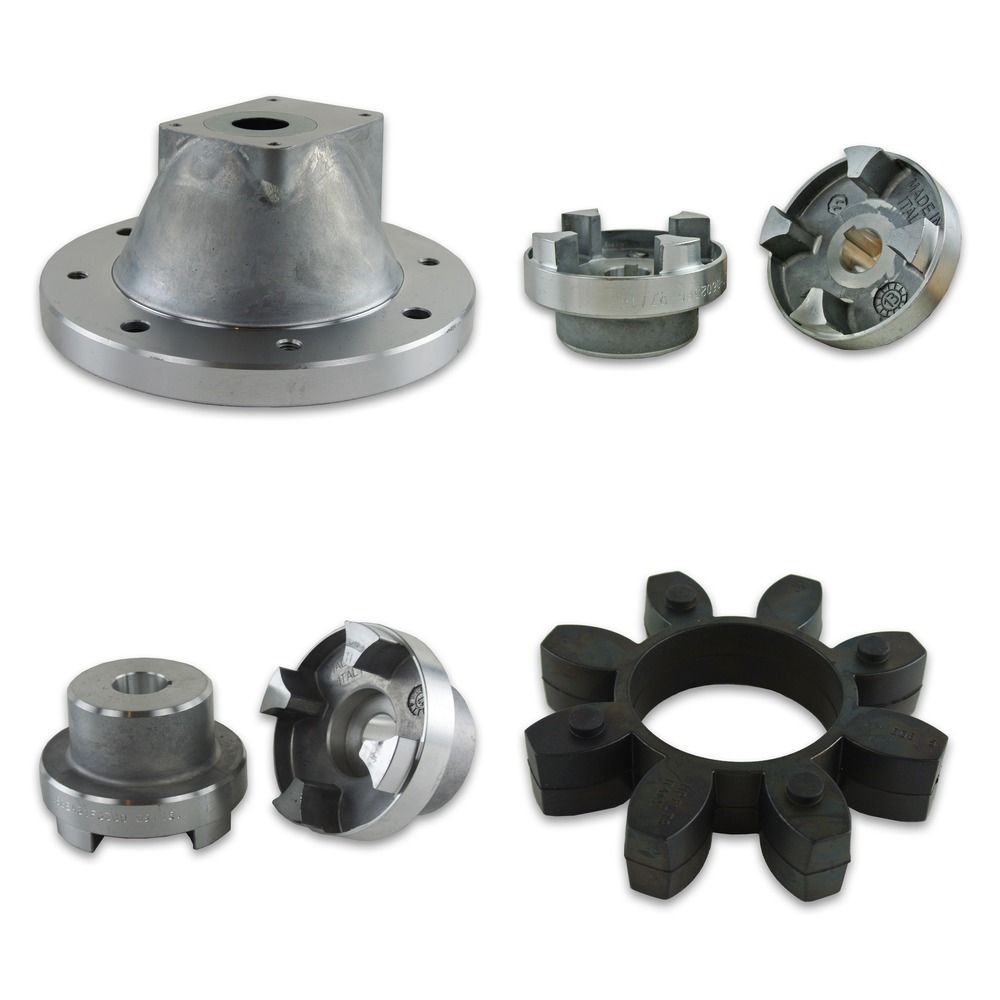

The whole drive in one pick: each kit includes the correct bellhousing, motor-side coupling half, pump-side coupling half and flexible element - matched, torque-rated and ready to bolt together. No part-number homework.
Use the dropdown: find your motor size (or engine HP) and your pump. All prices include GST.
Suits: IEC electric motors D71-D180 (0.25-22kW) driving DIN Group 1/2/3 gear pumps, and petrol/diesel engines 3-18HP driving Group 1/2 or SAE A pumps.
Kits & Part Numbers
| Drive | Kit SKU |
|---|---|
| Electric Motor D71 (0.25-0.37kW) to Group 1 Pump | KIT-D71-G1 |
| Electric Motor D80 (0.55-0.75kW) to Group 1 Pump | KIT-D80-G1 |
| Electric Motor D90 (1.1-2.2kW) to Group 1 Pump | KIT-D90-G1 |
| Electric Motor D90 (1.1-2.2kW) to Group 2 Pump | KIT-D90-G2 |
| Electric Motor D100/112 (2.2-5.5kW) to Group 1 Pump | KIT-D100-G1 |
| Electric Motor D100/112 (2.2-5.5kW) to Group 2 Pump | KIT-D100-G2 |
| Electric Motor D100/112 (2.2-5.5kW) to Group 3 Pump | KIT-D100-G3 |
| Electric Motor D132 (7.5-11kW) to Group 2 Pump | KIT-D132-G2 |
| Electric Motor D132 (7.5-11kW) to Group 3 Pump | KIT-D132-G3 |
| Electric Motor D160 (11-15kW) to Group 2 Pump | KIT-D160-G2 |
| Electric Motor D160 (11-15kW) to Group 3 Pump | KIT-D160-G3 |
| Electric Motor D180 (18.5-22kW) to Group 2 Pump | KIT-D180-G2 |
| Petrol Engine 3-5.5HP (3/4in shaft, 41.3mm spigot) to Group 1 Pump | KIT-ENG3-G1H |
| Engine 7-18HP (1in shaft, 110mm spigot) to Group 1 Pump | KIT-ENG13-G1H |
| Engine 7-18HP (1in shaft, 146mm spigot) to Group 2 Pump | KIT-ENG13-G2 |
| Engine 7-18HP (1in shaft, 146mm spigot) to SAE A Pump | KIT-ENG13-SAEA |
What is in each kit (bellhousing + motor-side coupling half + pump-side half + rubber element): KIT-D71-G1 = LMG160MFS1004E + SGEA01M02028FG + SGEA01FS100 + EGE0 | KIT-D80-G1 = LMG200MFS1004E + SGEA21M03048FG + SGEA21FS100 + EGE2 | KIT-D90-G1 = LMG200MFS1004E + SGEA21M04048FG + SGEA21FS100 + EGE2 | KIT-D90-G2 = LMG201MFS2004E + SGEA21M04048FG + SGEA21FS200 + EGE2 | KIT-D100-G1 = LMG250MFS1004S + SGEA21M05055FG + SGEA21FS100 + EGE2 | KIT-D100-G2 = LMG250MFS2004E + SGEA21M05055FG + SGEA21FS200 + EGE2 | KIT-D100-G3 = LMG251MFS3004E + SGEA21M05055FG + SGEA21FS300 + EGE2 | KIT-D132-G2 = LMG300MFS2004E + SGEA31M06077FG + SGEA31FS200 + EGE3 | KIT-D132-G3 = LMG300MFS3M04E + SGEA31M06077FG + SGEA31FS300 + EGE3 | KIT-D160-G2 = LMG351MFS2004E + SGEA51M07109FG + SGEA51FS200 + EGE5 | KIT-D160-G3 = LMG351MFS3M04E + SGEA51M07109FG + SGEA51FS300 + EGE5 | KIT-D180-G2 = LMG351MFS2004E + SGEA51M08109FG + SGEA51FS200 + EGE5 | Engine kits: KIT-ENG3-G1H = LMB110T099A002 + SGEA01G01050FG + SGEA01FS100 + EGE0 | KIT-ENG13-G1H = LMB155T140C002M3-1 + SGEA21G040502FFG + SGEA21FS100 + EGE2 | KIT-ENG13-G2 = LB1522 + ND65MC35 + ND65P2 + R62 | KIT-ENG13-SAEA = LB152825A + ND65MC35 + ND65QD10 + R62. Assembled by us before dispatch.
How to Choose
- Electric: read kW and frame size off the motor nameplate, then pick your pump group.
- Engine: match HP, crankshaft size and the engine mounting spigot.
- Combination not listed? Every part is also sold individually (links below), or call us and we will build a custom kit.
Technicians Advice
Fit the pump half and motor half so a 2-3mm gap remains at the element - couplings must float, never bind. Torque the housing bolts in a cross pattern, spin by hand before power-up, and check the element after the first week. Every kit here is the same combination we assemble in our own workshop power packs.
Official Datasheets
📄 Bellhousing DIN Spec Sheet📄 Engine Bellhousing Spec Sheet📄 Coupling Halves Spec Sheet📄 Elements Spec Sheet
Complete Your Drive
⚙ Bellhousings DIN⚙ Bellhousings SAE⚙ Engine Bellhousings⚙ Motor Side Halves⚙ Pump Side DIN⚙ Pump Side SAE⚙ Elements⚙ Accessories
Buy in bulk and save: 5+ kits −5%, 10+ −10% — applied automatically in the cart.
Call us on 1300 146 737 or email sales@mhfgc.com.au with your motor and pump details and we will confirm the right kit.
