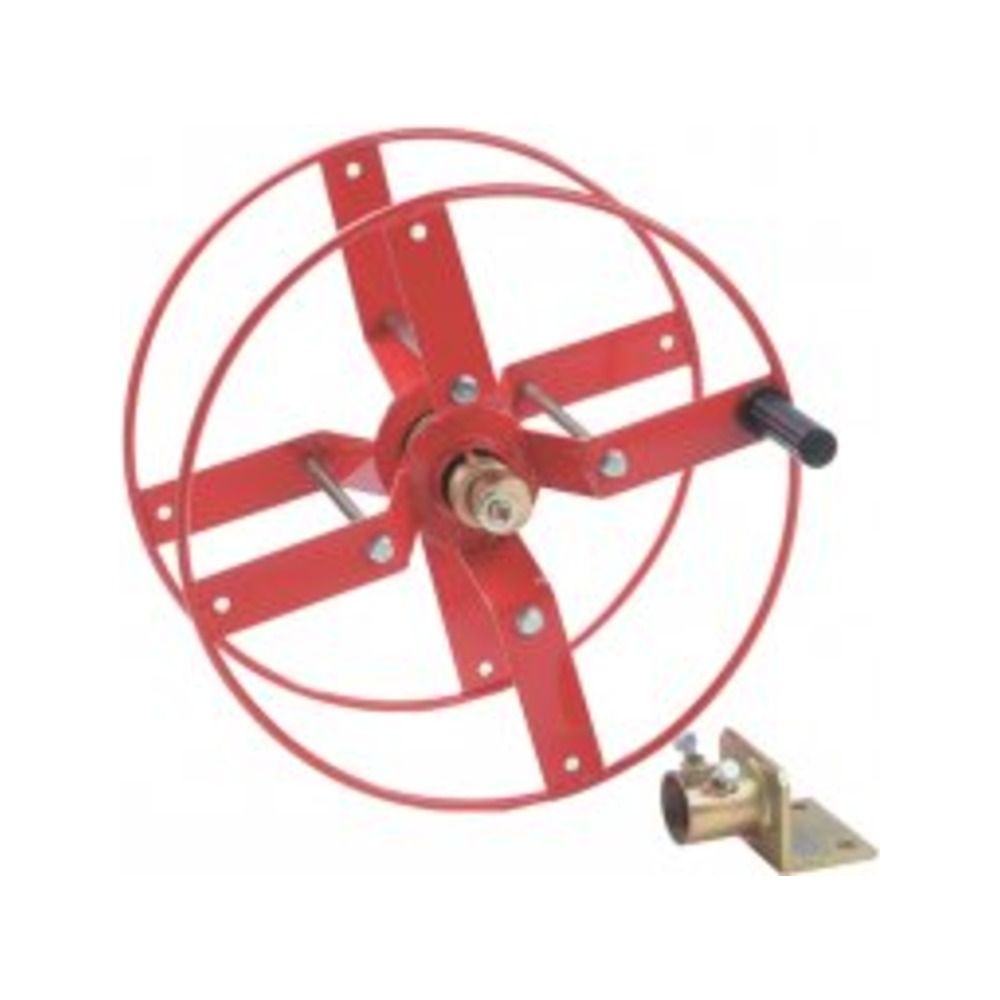

Compact Frame Hose Reel - 100 m capacity

Compact Frame Hose Reel, 100 m capacity.

Specifications

What is in the box

• Compact frame reel
• 3/8" BSP threaded ports
• Hose is not included

Technicians Advice

These are the plain, cheap drums. No swivel upgrade path and no guide, but for a spare on the truck or a second reel on a wash trailer they are hard to beat on price.

Wind the hose on with a bit of tension and lay it evenly across the drum. A bunched first layer binds everything above it and you will never get the full length back on. Dump the pressure through the gun before you wind in - reeling a hose with the gun shut traps pressure in the drum and the swivel seal takes the whole load, which is how most reel swivels die. Fit the locking pin before you drive anywhere; a drum that free-spins on a trailer pays hose onto the road and ruins the cover in one trip. Bolt the mounting plate through with backing plates or a spreader, never straight into sheet - a full drum with water in it is a lot of weight on a lever arm. One more thing on capacity: the rated length assumes nominal OD for that hose class. Two wire hose with a heavy cover will eat 10 to 15 per cent of the rating, so if you are right on the limit, go up a size.
