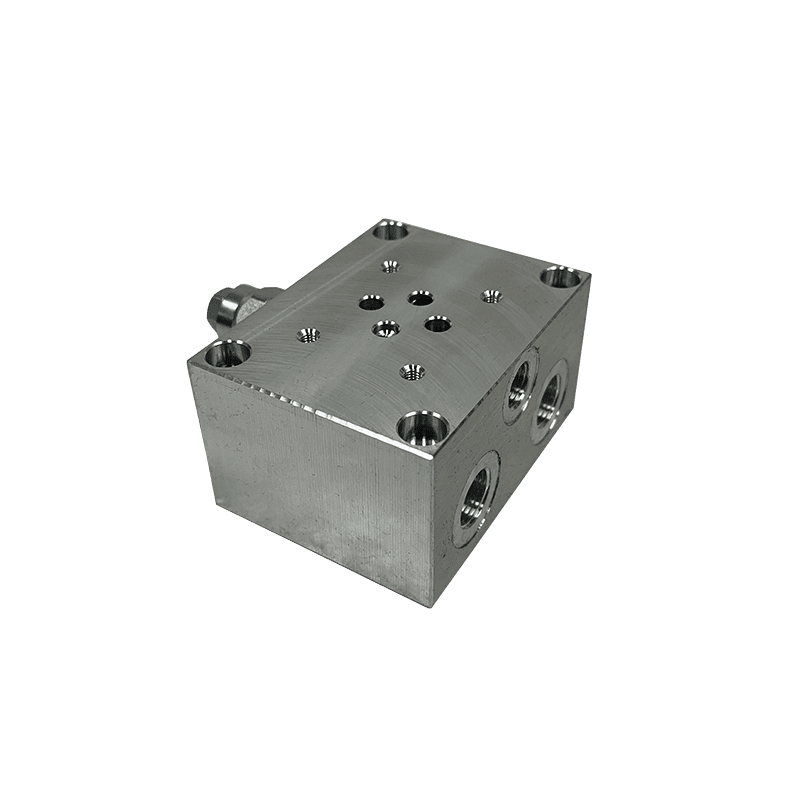

Cetop 3 and Cetop 5 Subplate - Side or Rear Ports
Product Details
Brand: Timalco
Weight: 1.80 kg
A subplate is what a Cetop valve actually bolts to. It carries the four ports — A, B, P and T — and converts the valve's machined face into threaded connections you can put a fitting into.
Side or rear ports?
Side ports bring the hoses out horizontally, which suits a valve mounted flat on a frame or a tank top. Rear ports come out the back, which is neater where the subplate is bolted to a vertical panel and you want the pipework behind it.
| Part number | Size | Ports | Material |
| THSPC3SA | Cetop 3 (NG6) | 3/8" — side | Alloy |
| THSPC3BA | Cetop 3 (NG6) | 3/8" — rear | Alloy |
| THSPC5SA | Cetop 5 (NG10) | 1/2" — side | Alloy |
| THSPC5BA | Cetop 5 (NG10) | 1/2" — rear | Alloy |
| BEC3VLP4002 | Cetop 3 (NG6) | Rear P & T, side A & B, with relief | Alloy |
| BEC5VLP8002 | Cetop 5 (NG10) | Rear P & T, side A & B, with relief | Alloy |
| BEC3VLP40RFP50 | Cetop 3 (NG6) | With relief and priority flow control | Alloy |
The BEC versions save you a valve. They have the relief built into the subplate, so a single-function power pack needs nothing else between the pump and the directional valve.
Mounting bolts not included — order an SHCS set to suit your stack.
Looking for a Cetop 3 subplate with relief? The BEC3VLP4002 and BEC3VLP40RFP50 blocks are listed separately under Cetop manifold blocks.
