CHARLIE 240V AC Pendant Control Station - 2 Button (Made in Italy)
Store/Power Packs and Hydraulic Power Units 12 & 24 VDC, 240 & 415 VAC, Petrol or Diesel/Hydraulic Power Units 240 Volt AC Single Phase 1.1 to 4.0 kW
Product Details

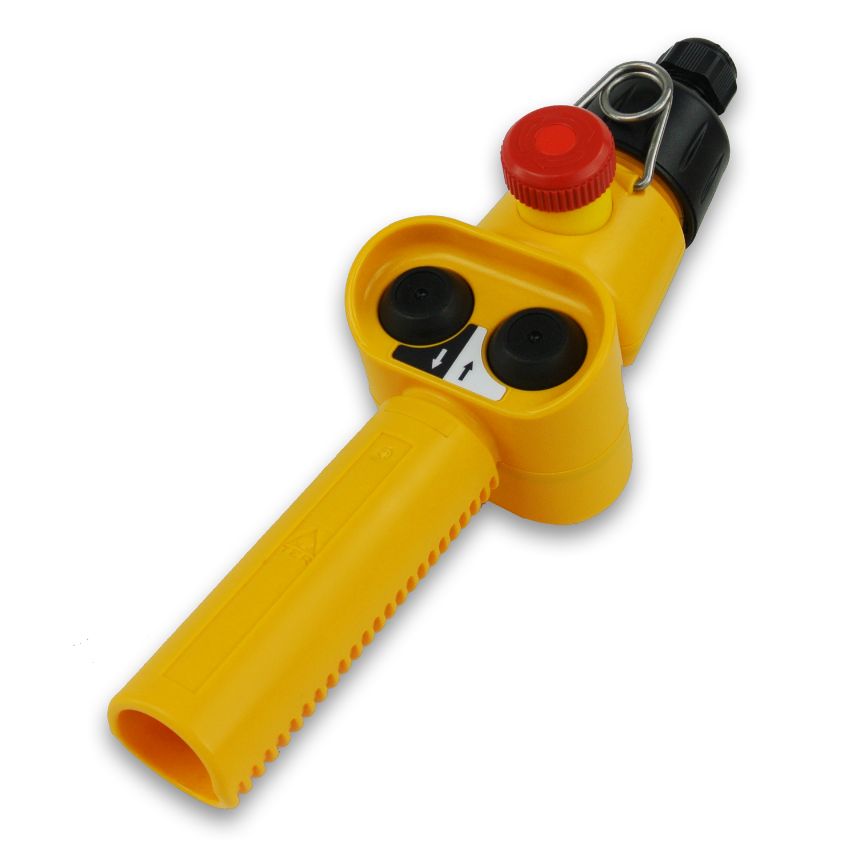

CHARLIE 240V AC Pendant Control Station - 2 Button with E-Stop (Made in Italy)
The CHARLIE is a professional-grade, compact pendant station engineered for auxiliary control of industrial machinery and hydraulic systems.
Manufactured in Italy, this station represents the pinnacle of ergonomic design, developed using anthropomorphic specifications to ensure operator comfort and technical precision.
Its innovative threaded ring closure allows for immediate internal access without the requirement for specialised tools, effectively minimizing maintenance downtime.
Technical Specifications
| Attribute | Specification |
|---|---|
| Country of Origin | Italy |
| Actuators | 2 Pushbuttons (Momentary) |
| Ingress Protection | IP65 (Dust-tight and water jet resistant) |
| Operational Temperature | -25°C to +70°C |
| Rated Operational Current (Ie) | 3 A (AC 15) |
| Rated Thermal Current (Ith) | 10 A |
| Rated Operational Voltage | 250 Vac |
| Mechanical Life | 1,000,000 Operations |
| Weight | Approximately 320 g |
Core Engineering Features
- Optimised Wiring Layout: All terminals are positioned facing the cable inlet with screws in the opposite direction to facilitate rapid, error-free installation.
- Tool-Free Access: Utilises a high-quality threaded ring to secure the enclosure and cover, allowing for manual disassembly.
- Integrated Handle Design: The hollow handle geometry allows the control station to be securely set onto a storage pin when not in use.
- Regulatory Compliance: Fully compliant with EN 60204-1, EN 60947-5-1, and EN 418 standards (for emergency stop versions).
Technician’s Advice:
In our 20+ years of hydraulic experience, the Charlie pendant stands out for its durability in high-pressure environments.
When wiring these units, ensure you adhere to the specified tightening torque of 0.6 NM (0.44 Ft/Lb) to prevent terminal fatigue. For 240V AC signal applications, we recommend using 1.5 mm² or 2.5 mm² copper conductors.
This station is highly modular; all pendants can be customised with interchangeable switches and button disc inserts to suit your specific hydraulic circuit requirements.
MM 31/03/2026 all New
