Categories
Bellhousing Gaskets Foot Mounts and Vibration Absorbers
SKU GUMP120
AU$1.78
Bulk pricing available for quantities of 5 units or more
Item / Size
Please choose
In stock
1
Buy more, save more
| Quantity | Price per item | Discount |
| 5 items | AU$1.69 | 5% off |
| 10 items | AU$1.60 | 10% off |
| 25 items | AU$1.56 | 12% off |
| 50 items | AU$1.51 | 15% off |
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Bellhousing Gaskets Foot Mounts and Vibration Absorbers
Product Details
Weight: 0.03 kg
Drive Accessories - Gaskets, Foot Mounts & Vibration Absorbers
The finishing parts for a motor-pump drive: housing and pump-face gaskets, foot mounts for motors and SAE pumps, and rubber vibration absorbers.
Remember - a complete drive needs four parts: bellhousing + motor-side half + pump-side half + rubber element. This listing covers one of them; the others are linked below.
Use the dropdown to choose. All prices include GST.
Suits: All LMG/LMC bellhousings and DIN pump groups on this site; motors D71-D180; SAE A/B/C pumps.
Sizes & Part Numbers
| Item | SKU |
|---|---|
| Gasket - LMG120 Housing | GUMP120 |
| Gasket - LMG141 Housing | GUMP140 |
| Gasket - LMG160 Housing | GUMP160 |
| Gasket - LMC/LMG200 Housing | GUMP200 |
| Gasket - LMC/LMG250 Housing | GUMP250 |
| Gasket - LMC/LMG300 Housing | GUMP300 |
| Gasket - LMC/LMG350 Housing | GUMP350 |
| Gasket - Group 05 Pump Face | GUPP001 |
| Gasket - Group 1 Pump Face | GUPP002 |
| Gasket - Group 2 Pump Face | GUPP004 |
| Gasket - Group 3 Pump Face | GUPP005 |

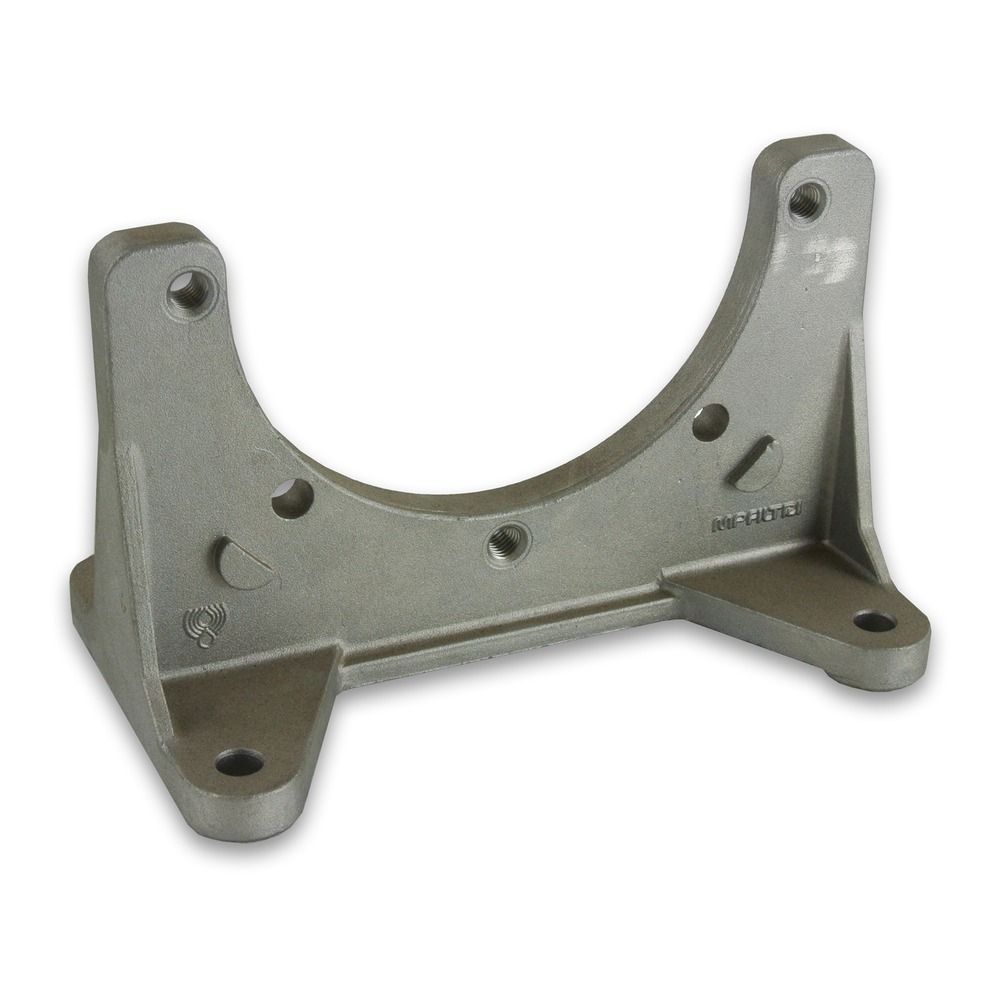

| Foot Mount - D71 Frame | PDMA160 |
| Foot Mount - D80-90 Frame | PDMA200 |
| Foot Mount - D100-110 Frame | PDMA250 |
| Foot Mount - D132 Frame | PDMA300 |
| Foot Mount - D160-180 Frame | PDMA350 |
| SAE Foot Mount Kit - SAE A | HBA-A |
| SAE Foot Mount Kit - SAE B | HBA-B |
| SAE Foot Mount Kit - SAE C | HBA-C |
| Vibration Absorber - 40x40x30 M8 | MDGQ403008IIK |
| Vibration Absorber - 50x50x45 M10 | MDGQ504510IIK |
| Vibration Absorber - 75x75x55 M12 | MDGQ755512IIK |
| Vibration Absorber - 100x100x75 M16 | MDGQ1007516IIK |
How to Choose
- Gaskets: pick by bellhousing part number (LMG/LMC size) or pump group face.
- Foot mounts: support the free end - pick by motor frame, or SAE kit by pump flange.
- Vibration absorbers: pick by stud size/load - use 4 per power pack frame.
Technicians Advice
Always fit housing gaskets - a dry aluminium joint rings like a bell and weeps oil mist. Foot mounts are cheap insurance on any pump over 10kg or any drive that sees shock loads. Vibration absorbers under the frame drop transmitted noise dramatically on indoor power units - size them so they compress 10-15% under static load.
Official Datasheets
Complete Your Drive
⭐ Complete Drive Kits - One Pick⚙ Bellhousings DIN⚙ Bellhousings SAE⚙ Engine Bellhousings⚙ Motor Side Halves⚙ Pump Side DIN⚙ Pump Side SAE⚙ Elements⚙ Flywheel Couplings⚙ Accessories
Buy in bulk and save: 5+ units −5%, 10+ −10%, 25+ −12.5%, 50+ −15% — applied automatically in the cart.
Not sure which combination you need? Call us on 1300 146 737 or email sales@mhfgc.com.au with your motor and pump details - we will spec the full drive for you.
