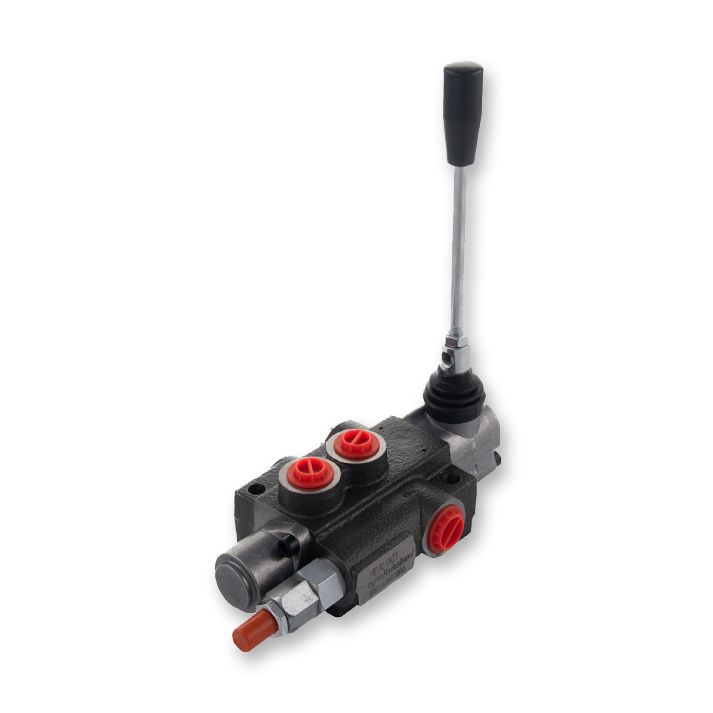

Badestnost P35 Monoblock Valve – 1 Spool, 35 L/min, 3/8" BSPP

Name: 1 Spool Hydraulic Monoblock Valve 35 LPM European | P35
Brand: Badestnost
SKU: P35-SERIES
Price: 212.96 AUD
Availability: InStock

Store/Valves for Controlling and Directing Oil Flow and Pressure/Monoblock Directional Control Valves/35 to 40 Lt/Min Monoblock Valves

SKU P35-A1-GKZ1

AU$212.96

Configuration

Please choose

In stock

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Badestnost P35 Monoblock Valve – 1 Spool, 35 L/min, 3/8" BSPP

Store/Valves for Controlling and Directing Oil Flow and Pressure/Monoblock Directional Control Valves/35 to 40 Lt/Min Monoblock Valves

Product Details

Brand: Badestnost

Badestnost P35 Monoblock Directional Control Valve - 1 Spool, 35 L/min, European Made

The compact sibling of our Z50 range - a heavy-duty European-made single-spool monoblock for smaller machines and circuits up to 35 L/min: log splitters, small loaders, tippers, winches and farm gear. Spring-return three-position lever, built-in adjustable relief valve.

Pick your spool from the dropdown - each choice is a factory-built valve with its own part number that flows straight through to our warehouse. All prices include GST.

Cylinder spool (standard) - ports closed in neutral, holds the load.
Motor spool - ports open to tank in neutral so a motor can coast.
Single-acting spools - one work port only (A or B side) for single-acting rams and tippers.

Sizes & Part Numbers - every configuration

Configuration	SKU	Best for	Price inc GST
Cylinder spool (double acting) – STANDARD	P35-A1-GKZ1	Rams/cylinders - holds load	AU$191.66
Motor spool	P35-D1-GKZ1	Hydraulic motors - coasts in neutral	AU$191.66
Single-acting spool, work on A	P35-B1-GKZ1	Single-acting rams/tippers	AU$191.66
Single-acting spool, work on B	P35-C1-GKZ1	Single-acting rams/tippers	AU$191.66

Float and custom spools can be factory-coded - call us and we will build the part number with you.

Specifications

Max flow: 40 L/min (sold as 35 L/min class) | Max pressure: 250 bar on P, 300 bar on A&B, 50 bar on T
Relief valve: adjustable 80-220 bar, factory preset 180 bar
Ports: P, T, N, A & B all 3/8" BSPP | Common load check valve
Spring-return 3-position lever | Shares Z50/P40 accessory family (spool controls, power beyond sleeves, levers)

How to Choose

Pump under 35 L/min? This valve. Between 35-50? Step up to the Z50 (link below) for headroom.
Double-acting ram = cylinder spool. Motor = motor spool. Single-acting tipper = B or C spool per your plumbing side.

Technicians Advice

Cylinder (A) spools hold a load in neutral; motor (D) spools leave A-B open so a spinning motor can coast. Set the relief to your system pressure on first start with a gauge on P. Running a second valve downstream? Fit the Z50/P40 power beyond sleeve (below) and a dedicated tank return line.

Official Datasheets

📄 Badestnost P35 Factory Spec Sheet 📄 P35 Spool & Code Nomenclature Guide

Complete Your Setup

⭐ Power Beyond Sleeves & Plugs ⚙ Z50 1-Spool (40 L/min)⚙ Z50 2-Spool ⚙ Z50 3-Spool

Buy in bulk and save: 5+ units −5%, 10+ −10%, 25+ −12.5%, 50+ −15% — applied automatically in the cart.

Not sure? Call 1300 146 737 or email sales@mhfgc.com.au - we will code the valve for you.
