Name: BSP Parallel Plugs & Caps
SKU: 10079
Availability: InStock

BSPP Caps & Plugs Various Sizes

Store/Adaptors Straight, 45 & 90 Elbows & Tees/BSP Adaptors Straights, Elbows, and Tees

Product Details

Weight: 0.10 kg

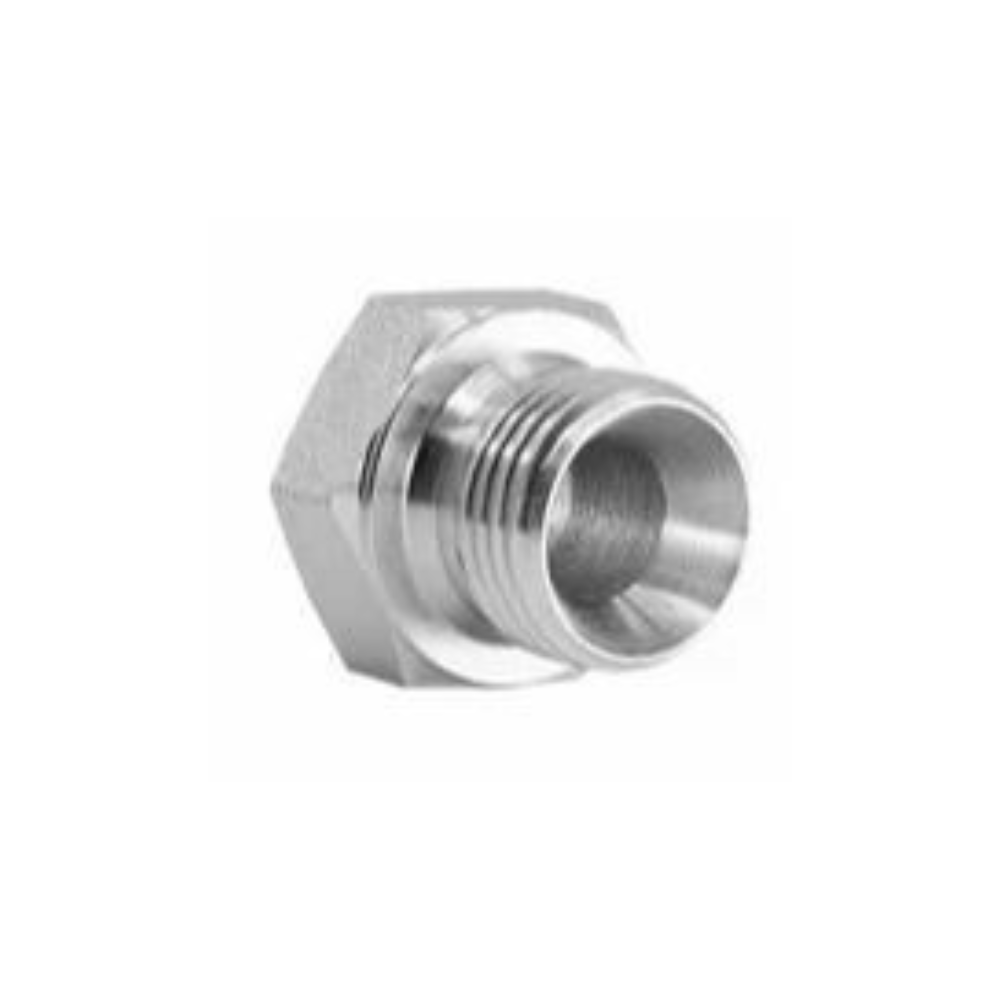

BSPP Hydraulic Plugs Or Caps
These are Hydraulic BSP Parallel plugs & plugs. Please select the required size from the above drop box, and insert the quantity into the 'quantity' box.

BSPT/BSPP THREAD ID CHART
BSPT / BSPP Size & Pitch	DASH SIZE	BSPT Male Thread OD		BSPP Male Thread OD		BSPT Female Thread ID		BSPP Female Thread ID
BSPT / BSPP Size & Pitch	DASH SIZE	BSPT Male Thread OD		BSPP Male Thread OD		BSPT Female Thread ID		BSPP Female Thread ID
inch – TPI		mm	inch	mm	inch	mm	inch	mm	inch
1/8 – 28	-02	9.5	0.37	9.6	0.38	8.4	0.33	8.6	0.34
1/4 – 19	-04	12.8	0.50	13.0	0.51	11.2	0.44	11.9	0.47
3/8 – 19	-06	16.3	0.64	16.5	0.65	14.7	0.59	15.2	0.60
1/2 – 14	-08	20.4	0.80	20.8	0.82	18.3	0.72	19.1	0.75
5/8 – 14	-10	22.5	0.89	22.8	0.90	20.6	0.81	20.8	0.82
3/4 – 14	-12	25.9	1.02	26.3	1.04	23.9	0.94	24.6	0.97
1 – 11	-16	32.6	1.28	33.1	1.30	29.7	1.17	30.7	1.21
1.1/4 – 11	-20	41.1	1.62	41.8	1.64	38.6	1.52	39.4	1.55
1.1/2 – 11	-24	47.0	1.85	47.7	1.88	44.5	1.75	45.5	1.79
2 -11	-32	58.6	2.31	59.5	2.34	56.4	2.22	57.4	2.26
2.1/2 – 11	-40	74.1	2.92	75.1	2.95	71.9	2.83	72.6	2.86
3 – 11	-48	86.6	3.41	87.9	3.46	84.6	3.33	85.4	3.36
