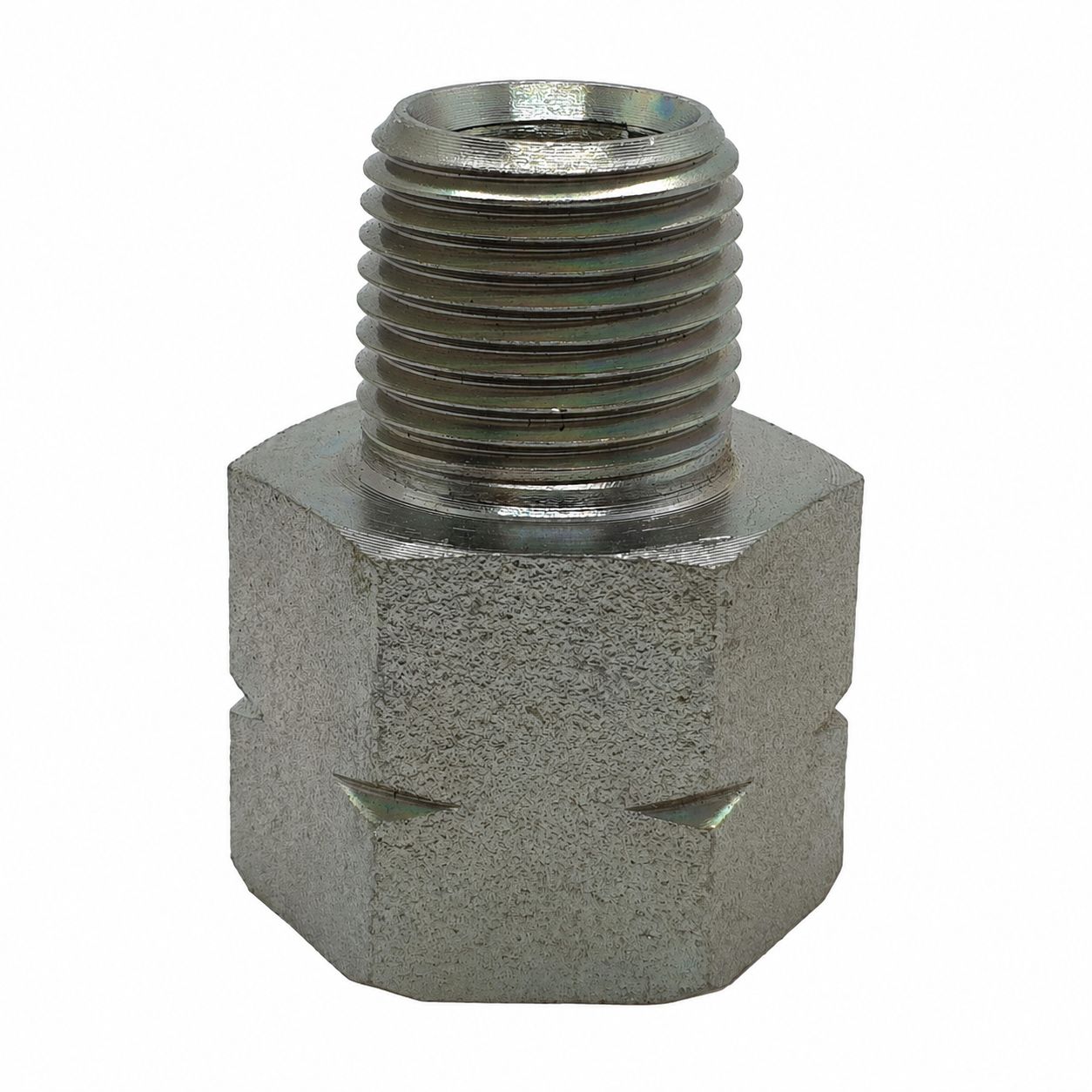

BSP Tapered Male x UNO O-Ring Boss Female Straight Adaptor

BSPT male one end, SAE O-ring boss female the other. Accepts a UNO male fitting and converts it out to a BSP tapered port on Australian-built gear.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: 90 ° Hydraulic Adaptors How They Work and the Importance of O'Rings

Thread Standards

• BSP Tapered Male – BSPT to ISO 7 / BS 21. It seals on the tapered thread itself, so it needs PTFE tape or a liquid thread sealant.
• UNO O-Ring Boss Female (UNF) – SAE J1926 / ISO 11926 straight thread O-ring boss, female. It takes a UNO male whose O-ring seals against the spotface inside the port, never on the thread.

How to Choose

• The UNO female takes a male whose O-ring seals against the spotface inside the port. Keep that face clean and unmarked.
• The BSPT male seals on the thread and needs sealant. The UNO female does not.
• UNO and UNF callouts are the same family. Go by the full callout, for example 7/8-14, not the fraction alone.

Technicians Advice

Inspect the spotface inside the female before you fit anything to it. A nick or a burr in there will weep past a perfectly good O-ring, and it is invisible once the male is wound in.

Where You’ll Find It

• BSP Tapered Male – Older Australian and British pipework, gauge ports, tank and return lines, and cast pump and gearbox housings.
• UNO O-Ring Boss Female (UNF) – American-built pumps, motors, valve banks and cylinders – Eaton, Parker, Sauer-Danfoss, Vickers – and anything built to SAE port standards. Common on skid steers, telehandlers and US-sourced attachments.

Cross-Reference

• BSP Tapered Male – BSPT to ISO 7 / BS 21, written R for male. Sometimes labelled PT or BSP taper.
• UNO O-Ring Boss Female (UNF) – SAE J1926-1 / ISO 11926 straight thread O-ring boss. Often written UNO, UN/UNF or SAE ORB. Parker call it Triple-Lok on the port side. Not the same as a JIC 37° female even where the thread size matches.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H1	Material	Finish
BTM-UNF-0812	1/2" BSPT	3/4" UNO	42mm	27mm	Mild steel	Plated finish
BTM-UNF-0814	1/2" BSPT	7/8" UNO	44mm	32mm	Mild steel	Plated finish

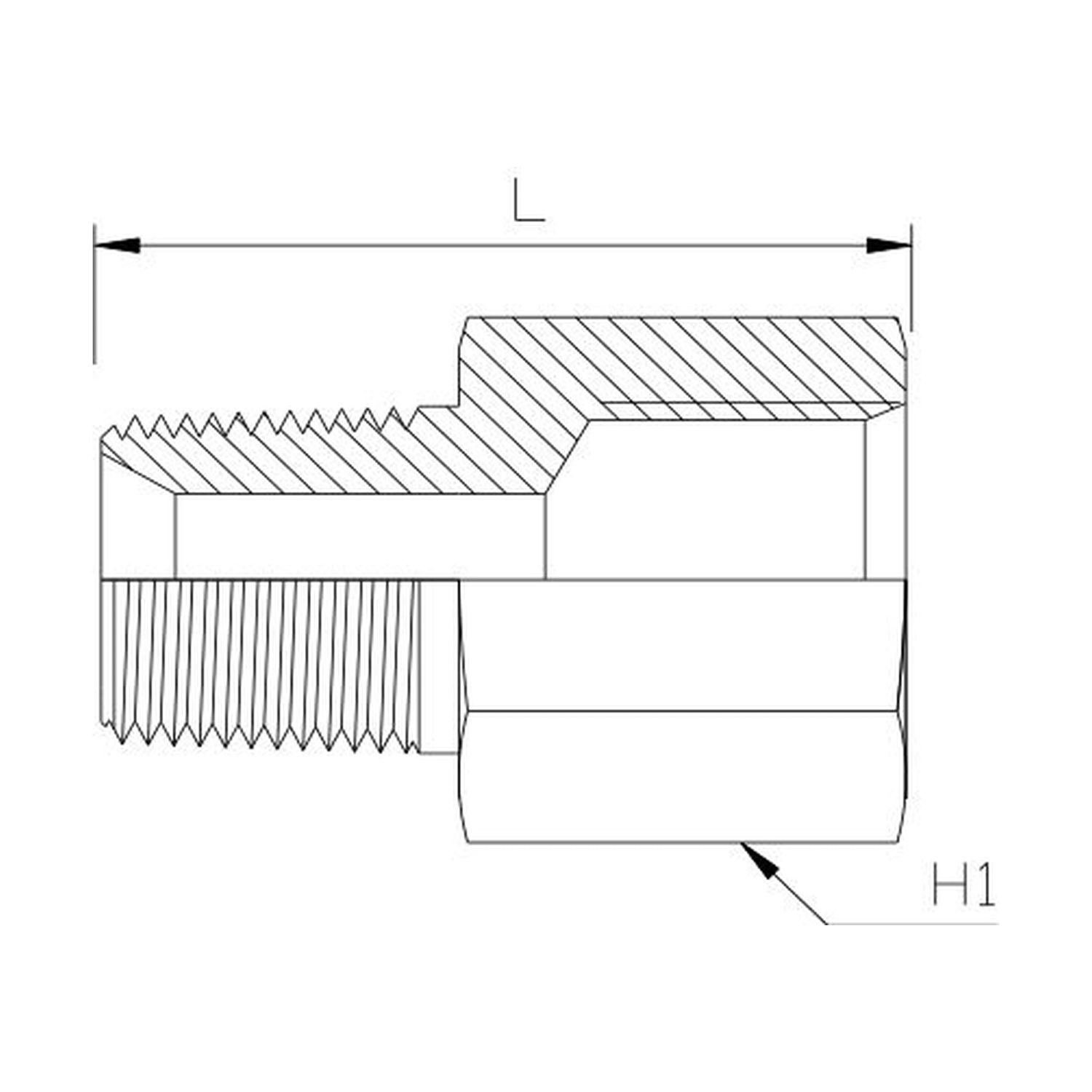

Key: L overall length, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)
