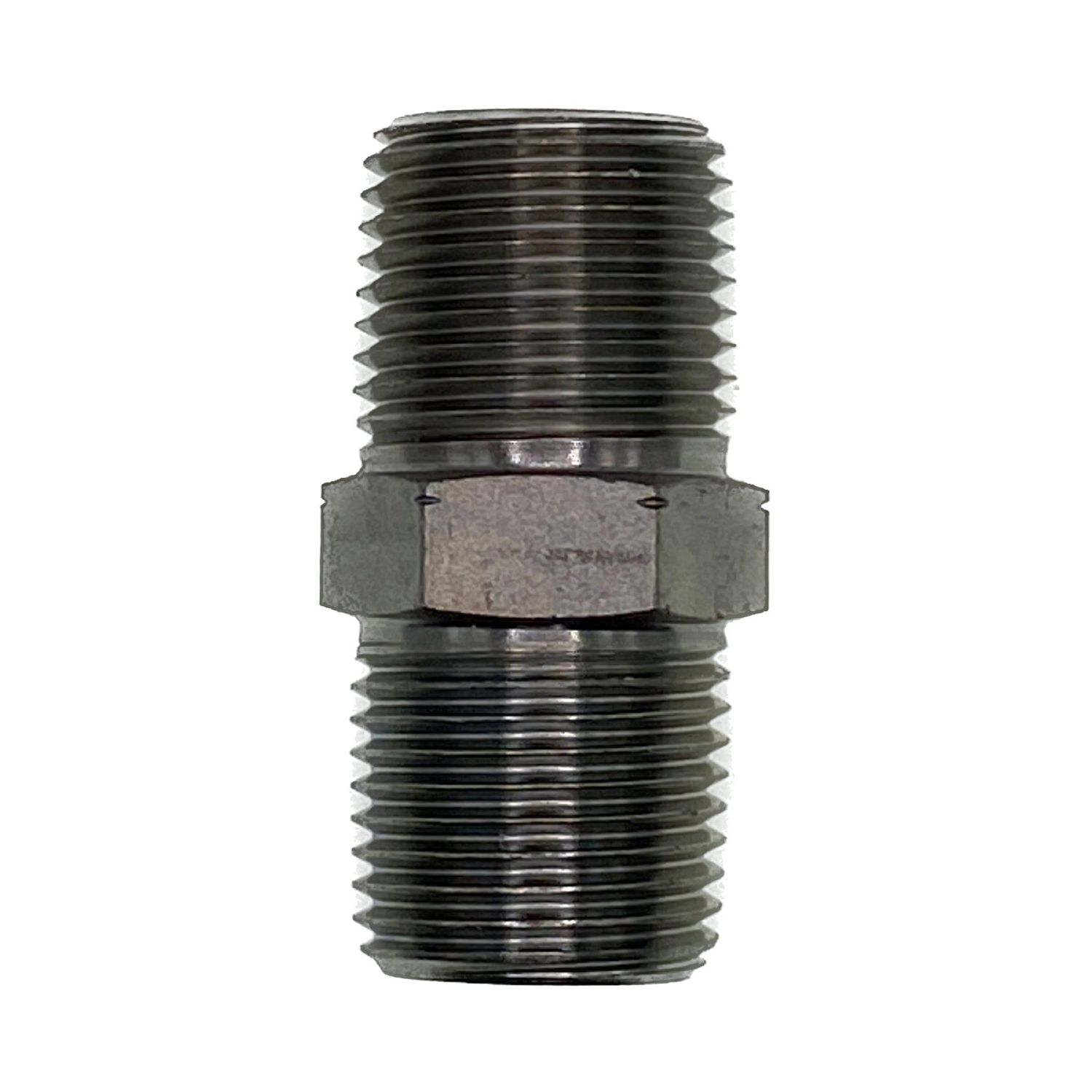

BSP Tapered Male x NPT Tapered Male Straight Adaptor

Tapered thread on both ends, BSPT one side and NPT the other. This is the joiner you reach for when American-built gear lands on an Australian machine and neither port will take the other thread.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• BSP Tapered Male – BSPT to ISO 7 / BS 21. It seals on the tapered thread itself, so it needs PTFE tape or a liquid thread sealant.
• NPT Tapered Male – ANSI/ASME B1.20.1 tapered pipe thread. It seals on thread interference, so tape or sealant is a must.

How to Choose

• BSPT is a 55° Whitworth form, NPT is 60°. They will start together and feel right for a turn or two, then tear the thread and weep.
• Both ends seal on the thread, so both need sealant. Anaerobic thread sealant or PTFE tape, kept back off the first two threads so nothing shears into the system.
• Do not go by the number on the port. 1/2" BSPT and 1/2" NPT are different pitches, so check each end against the part it screws into.

Technicians Advice

Most NPT weeps come from over-tightening, not under. A tapered thread wedges as it winds, so take it hand tight then two or three turns on the spanner and stop. Chasing a weep with more torque splits the female port and turns a fitting job into a housing job.

Where You’ll Find It

• BSP Tapered Male – Older Australian and British pipework, gauge ports, tank and return lines, and cast pump and gearbox housings.
• NPT Tapered Male – American-built gearboxes, pumps, compressors and older industrial pipework.

Cross-Reference

• BSP Tapered Male – BSPT to ISO 7 / BS 21, written R for male. Sometimes labelled PT or BSP taper.
• NPT Tapered Male – ANSI/ASME B1.20.1 tapered pipe thread. The dryseal variant is written NPTF.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

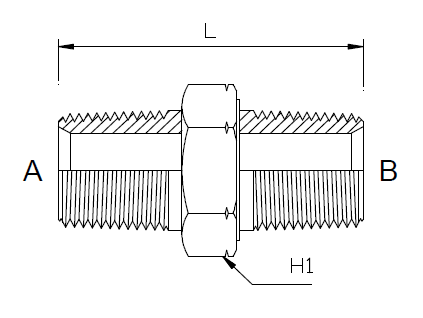

Part code	A	B	L	H1	Material	Finish
BTM-NTM-0404	1/4" BSPT	1/4" NPT	38mm	16mm	Mild steel	Plated finish
BTM-NTM-0606	3/8" BSPT	3/8" NPT	38mm	19mm	Mild steel	Plated finish
BTM-NTM-0808	1/2" BSPT	1/2" NPT	47mm	22mm	Mild steel	Plated finish
BTM-NTM-1212	3/4" BSPT	3/4" NPT	51mm	30mm	Mild steel	Plated finish
BTM-NTM-1616	1" BSPT	1" NPT	62mm	38mm	Mild steel	Plated finish
BTM-NTM-2020	1.1/4" BSPT	1.1/4" NPT	64mm	46mm	Mild steel	Plated finish
BTM-NTM-2424	1.1/2" BSPT	1.1/2" NPT	67mm	50mm	Mild steel	Plated finish
BTM-NTM-3232	2" BSPT	2" NPT	75mm	65mm	Mild steel	Plated finish

Key: L overall length, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
