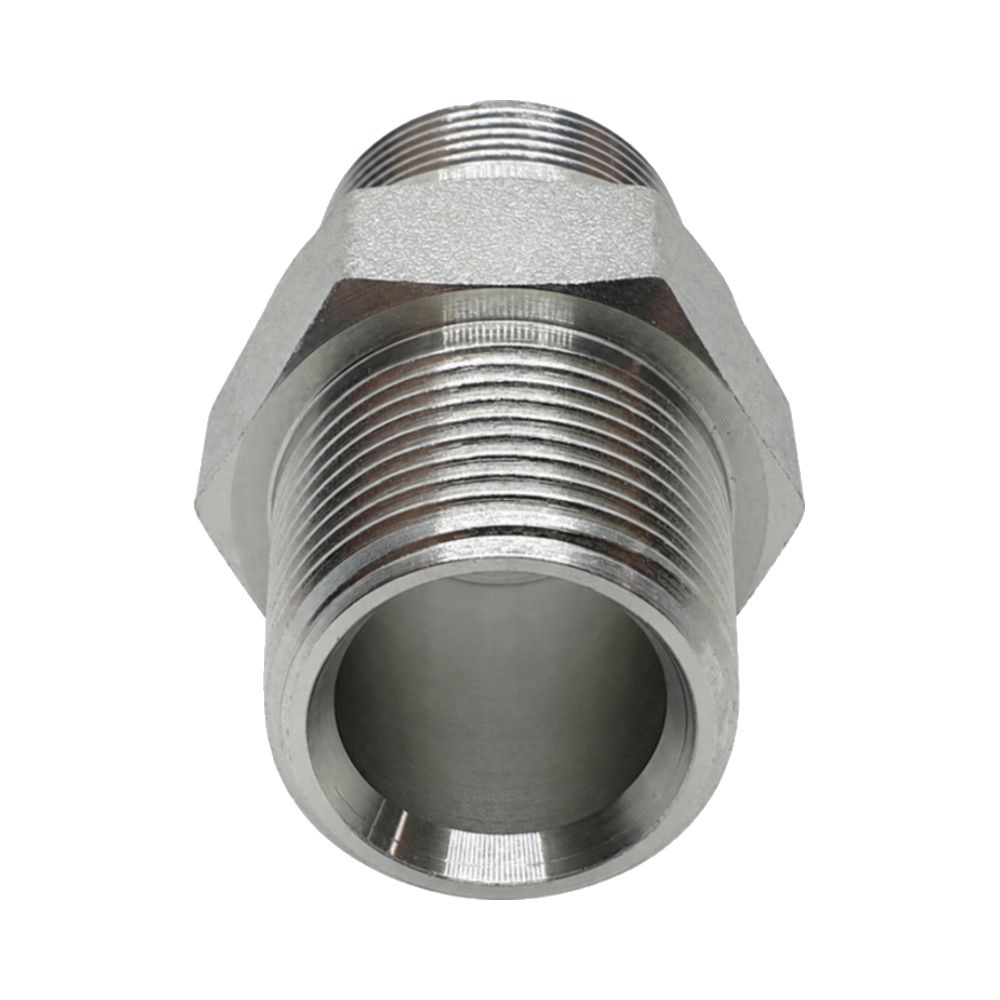

BSP Tapered Male x Metric Stud Male Straight Adaptor

BSPT into a local port, metric stud out to a European valve block or manifold. The stud seals on a soft washer under the shoulder rather than on the thread.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• BSP Tapered Male – BSPT to ISO 7 / BS 21. It seals on the tapered thread itself, so it needs PTFE tape or a liquid thread sealant.
• Metric Stud Male – metric straight thread with a captive soft seal. It seals on a bonded washer or O-ring under the stud shoulder, not on the thread.

How to Choose

• The metric stud seals under the shoulder, not on the thread. It needs its bonded washer or O-ring.
• Confirm the metric thread pitch against the block - metric ports of the same diameter come in more than one pitch.
• Tape or sealant on the BSPT end only.

Technicians Advice

One end seals on the thread and one on a washer, and they want opposite treatment. Tape the BSPT, fit a fresh seal to the stud, and make sure the block face is clean and flat. A crushed washer will not take up the gap a second time.

Where You’ll Find It

• BSP Tapered Male – Older Australian and British pipework, gauge ports, tank and return lines, and cast pump and gearbox housings.
• Metric Stud Male – European valve blocks and manifolds using a metric port with a soft seal under the shoulder.

Cross-Reference

• BSP Tapered Male – BSPT to ISO 7 / BS 21, written R for male. Sometimes labelled PT or BSP taper.
• Metric Stud Male – Metric straight thread with a bonded washer or O-ring. Confirm the port series against the block before ordering.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H1	Material	Finish
BTM-MSM-0210	1/8" BSPT	M10x1.0	26mm	14mm	Mild steel	Plated finish
BTM-MSM-0412	1/4" BSPT	M12x1.5	37mm	17mm	Mild steel	Plated finish
BTM-MSM-0414	1/4" BSPT	M14x1.5	37mm	19mm	Mild steel	Plated finish
BTM-MSM-0416	1/4" BSPT	M16x1.5	37mm	22mm	Mild steel	Plated finish
BTM-MSM-0620	3/8" BSPT	M20x1.5	41mm	27mm	Mild steel	Plated finish
BTM-MSM-0822	1/2" BSPT	M22x1.5	45mm	27mm	Mild steel	Plated finish
BTM-MSM-0826	1/2" BSPT	M26x1.5	49mm	32mm	Mild steel	Plated finish
BTM-MSM-0827	1/2" BSPT	M27x2	49mm	32mm	Mild steel	Plated finish
BTM-MSM-1226	3/4" BSPT	M26x1.5	50mm	32mm	Mild steel	Plated finish

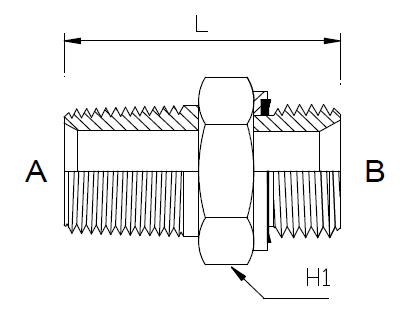

Key: L overall length, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
