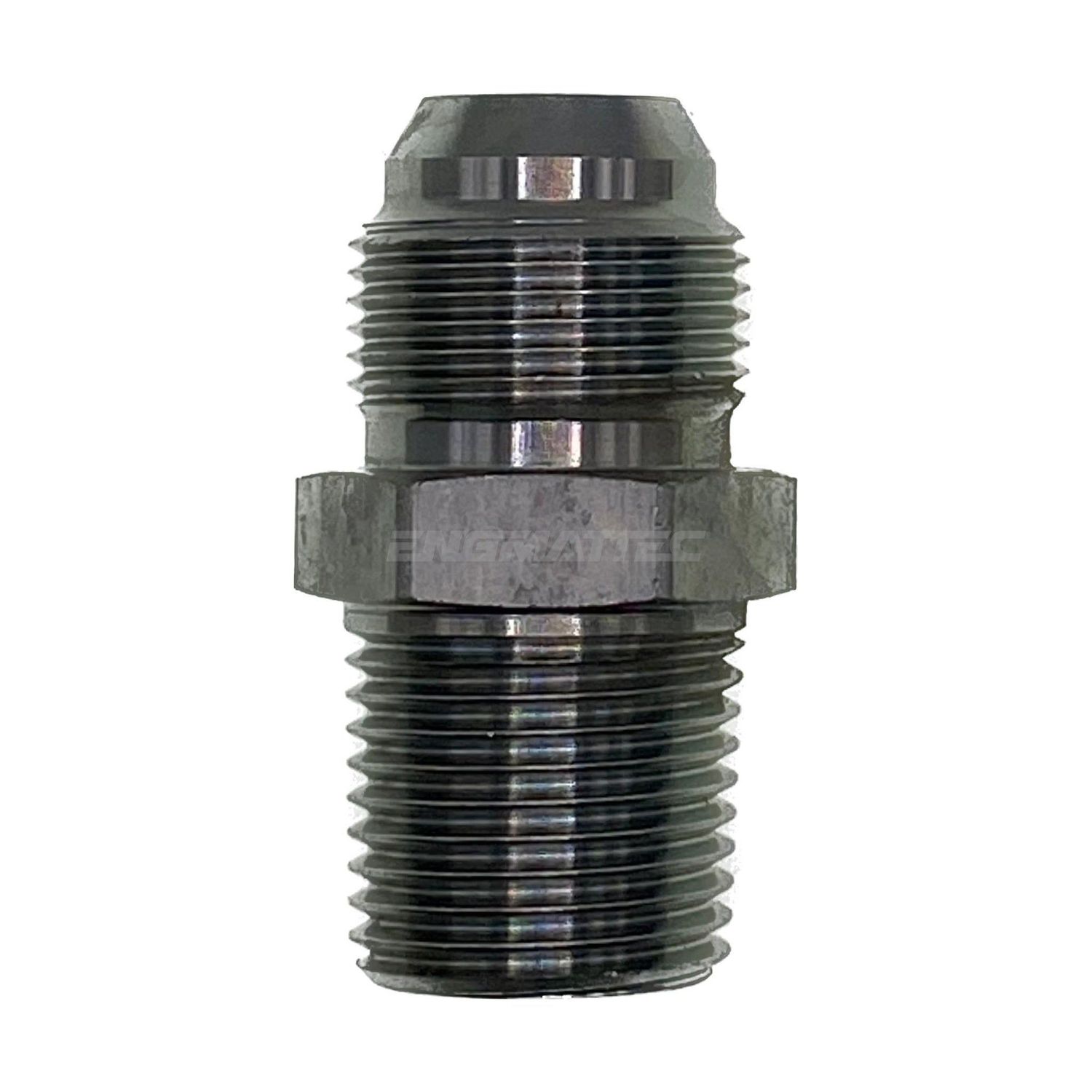

BSP Tapered Male x Metric Komatsu Male Straight Adaptor

BSPT into an Australian port, Komatsu metric flare out to the machine. The Komatsu pattern uses a 30° flare, a different angle again to JIC 37° and DIN metric 24°, and none of the three interchange.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• BSP Tapered Male – BSPT to ISO 7 / BS 21. It seals on the tapered thread itself, so it needs PTFE tape or a liquid thread sealant.
• Metric Komatsu Male (JIS metric) – JIS metric 30° flare pattern used by Komatsu. It seals on the 30° flare seat, which is a different angle again to JIC or metric 24°.

How to Choose

• Check the flare angle, not just the thread. Komatsu metric is 30°, JIC is 37°, DIN metric is 24°.
• Tape or sealant on the BSPT end only. The Komatsu flare seals on its seat.
• Komatsu metric turns up alongside JIS BSP on the same machine, so identify each port rather than assuming.

Technicians Advice

Three flare angles that all look similar at a glance is exactly how the wrong part gets fitted. If a Komatsu joint weeps after a repair, put the old and new fittings nose to nose and look along the cones - a 7 degree difference is visible when you compare them directly.

Where You’ll Find It

• BSP Tapered Male – Older Australian and British pipework, gauge ports, tank and return lines, and cast pump and gearbox housings.
• Metric Komatsu Male (JIS metric) – Komatsu excavators, dozers and loaders, and other Japanese plant using the JIS metric flare.

Cross-Reference

• BSP Tapered Male – BSPT to ISO 7 / BS 21, written R for male. Sometimes labelled PT or BSP taper.
• Metric Komatsu Male (JIS metric) – JIS metric 30° flare, commonly called Komatsu metric. Not interchangeable with DIN 2353 24° cone or JIC 37°.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H1	Material	Finish
BTM-MKM-0414	M14x1.5	1/4" BSPT	38mm	17mm	Mild steel	Plated finish
BTM-MKM-0616	M16x1.5	3/8" BSPT	39mm	19mm	Mild steel	Plated finish
BTM-MKM-0618	M18x1.5	3/8" BSPT	41mm	19mm	Mild steel	Plated finish
BTM-MKM-0818	M18x1.5	1/2" BSPT	46mm	24mm	Mild steel	Plated finish
BTM-MKM-0820	M20x1.5	1/2" BSPT	47mm	24mm	Mild steel	Plated finish
BTM-MKM-0822	M22x1.5	1/2" BSPT	48mm	24mm	Mild steel	Plated finish
BTM-MKM-0824	M24x1.5	1/2" BSPT	51mm	32mm	Mild steel	Plated finish
BTM-MKM-1224	M24x1.5	3/4" BSPT	54mm	32mm	Mild steel	Plated finish
BTM-MKM-1230	M30x1.5	3/4" BSPT	57mm	32mm	Mild steel	Plated finish
BTM-MKM-1633	M33x1.5	1" BSPT	66mm	36mm	Mild steel	Plated finish

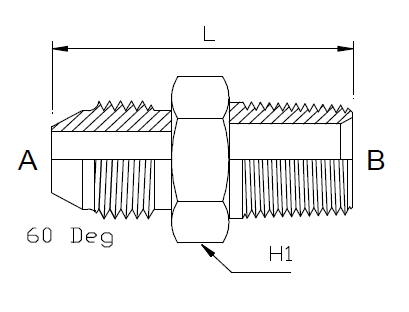

Key: L overall length, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
