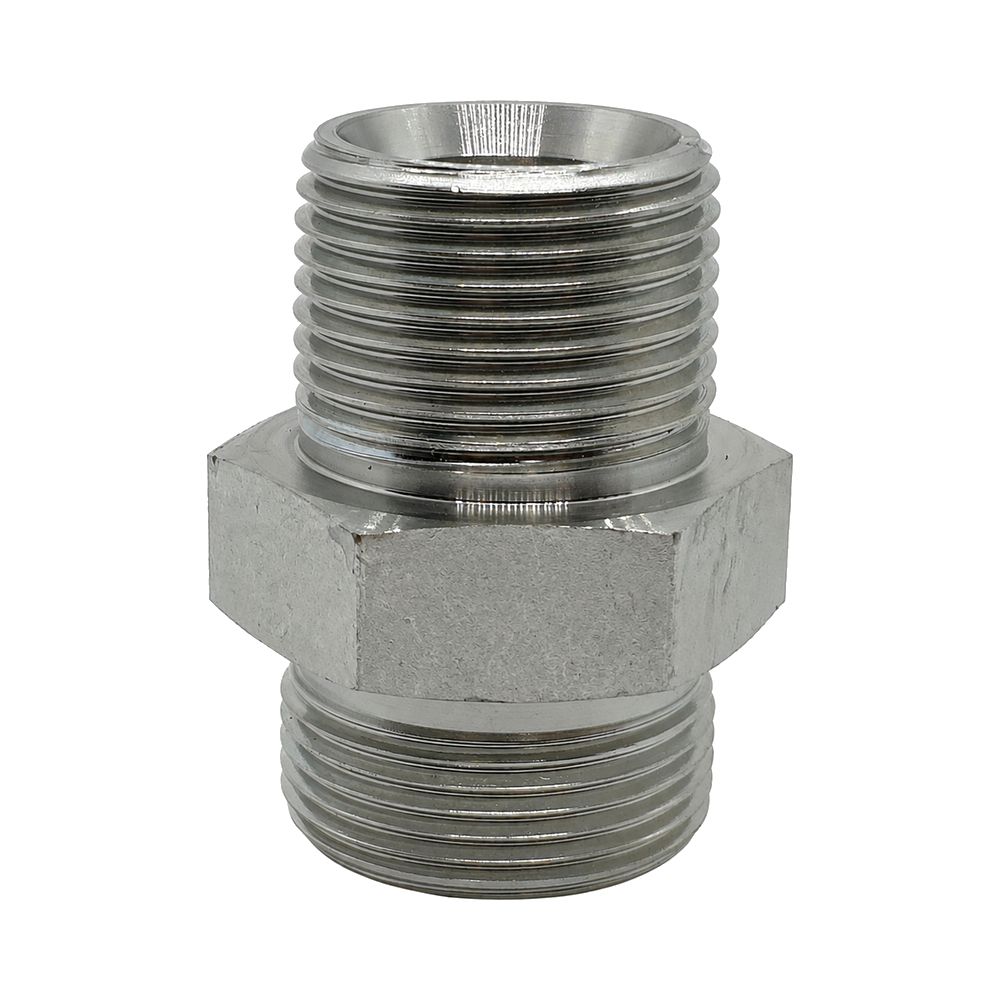

BSP Tapered Male x Metric Heavy (S) Male Straight Adaptor

BSPT into the local port, DIN 2353 heavy-series 24° cone out to European tube or hose. Heavy series is specified where pressures are high, so this is a pressure-line fitting.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• BSP Tapered Male – BSPT to ISO 7 / BS 21. It seals on the tapered thread itself, so it needs PTFE tape or a liquid thread sealant.
• Metric Heavy (S) Male – DIN 2353 / ISO 8434-1 24° cone, heavy series. It seals on the 24° cone and is built for higher pressures than the light series.

How to Choose

• Heavy (S) and light (L) overlap on some threads but differ in tube diameter and pressure rating. Confirm the series first.
• Metric 24° sizes are given by tube outside diameter, so 16S suits 16mm heavy-series tube.
• Tape or sealant on the BSPT end only. The metric cone seals on itself.

Technicians Advice

If the original was heavy series, replace it with heavy series. A light-series body that threads on will feel perfectly normal on the bench and then split at the thinnest section under working pressure, usually without warning.

Where You’ll Find It

• BSP Tapered Male – Older Australian and British pipework, gauge ports, tank and return lines, and cast pump and gearbox housings.
• Metric Heavy (S) Male – European machinery on the pressure side, where working pressures exceed the light series rating.

Cross-Reference

• BSP Tapered Male – BSPT to ISO 7 / BS 21, written R for male. Sometimes labelled PT or BSP taper.
• Metric Heavy (S) Male – DIN 2353 / ISO 8434-1 24° cone, heavy (S) series. Parker EO / EO-2.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	F1	F2	L	S	C1	C2	D1	D2	P	Material	Finish
BTM-MHM-0414	M14x1.5 - 6S	1/4" BSPT	M14x1.5 - 6S	1/4" BSPT	33mm	17mm	12mm	14mm	4mm	5.94mm	6mm	Mild steel	Plated finish
BTM-MHM-0416	M16x1.5 - 8S	1/4" BSPT	M16x1.5 - 8S	1/4" BSPT	32mm	17mm	12mm	14mm	5mm	5mm	8mm	Mild steel	Plated finish
BTM-MHM-0618	M18x1.5 - 10S	3/8" BSPT	M18x1.5 - 10S	3/8" BSPT	35mm	19mm	12mm	15mm	7mm	7mm	10mm	Mild steel	Plated finish
BTM-MHM-0620	M20x1.5 - 12S	3/8" BSPT	M20x1.5 - 12S	3/8" BSPT	35mm	22mm	12mm	15mm	8mm	8mm	12mm	Mild steel	Plated finish
BTM-MHM-0622	M22x1.5 - 14S	3/8" BSPT	M22x1.5 - 14S	3/8" BSPT	38mm	24mm	14mm	15mm	9mm	9mm	14mm	Mild steel	Plated finish
BTM-MHM-0624	M24x1.5 - 16S	3/8" BSPT	M24x1.5 - 16S	3/8" BSPT	39.5mm	27mm	14mm	15mm	12mm	9mm	16mm	Mild steel	Plated finish
BTM-MHM-0816	M16x1.5 - 8S	1/2" BSPT	M16x1.5 - 8S	1/2" BSPT	40mm	22mm	12mm	14mm	5mm	12mm	8mm	Mild steel	Plated finish
BTM-MHM-0818	M18x1.5 - 10S	1/2" BSPT	M18x1.5 - 10S	1/2" BSPT	41mm	22mm	12mm	19mm	7mm	12mm	10mm	Mild steel	Plated finish
BTM-MHM-0820	M20x1.5 - 12S	1/2" BSPT	M20x1.5 - 12S	1/2" BSPT	36mm	22mm	12mm	14mm	8mm	12mm	12mm	Mild steel	Plated finish
BTM-MHM-0822	M22x1.5 - 14S	1/2" BSPT	M22x1.5 - 14S	1/2" BSPT	43mm	24mm	14mm	19mm	10mm	12mm	14mm	Mild steel	Plated finish
BTM-MHM-0824	M24x1.5 - 16S	1/2" BSPT	M24x1.5 - 16S	1/2" BSPT	40mm	27mm	14mm	16mm	12mm	12mm	16mm	Mild steel	Plated finish
BTM-MHM-0830	M30x2 - 20S	1/2" BSPT	M30x2 - 20S	1/2" BSPT	46mm	32mm	16mm	19mm	16mm	12mm	20mm	Mild steel	Plated finish
BTM-MHM-1230	M30x2 - 20S	3/4" BSPT	M30x2 - 20S	3/4" BSPT	48mm	32mm	16mm	20mm	16mm	16mm	20mm	Mild steel	Plated finish
BTM-MHM-1236	M36x2 - 25S	3/4" BSPT	M36x2 - 25S	3/4" BSPT	51mm	41mm	18mm	20mm	20mm	16.7mm	25mm	Mild steel	Plated finish
BTM-MHM-1636	M36x2 - 25S	1" BSPT	M36x2 - 25S	1" BSPT	56mm	41mm	18mm	24mm	20mm	22.2mm	25mm	Mild steel	Plated finish
BTM-MHM-1642	M42x2 - 30S	1" BSPT	M42x2 - 30S	1" BSPT	58mm	46mm	20mm	24mm	25mm	22.2mm	30mm	Mild steel	Plated finish
BTM-MHM-2042	M42x2 - 30S	1.1/4" BSPT	M42x2 - 30S	1.1/4" BSPT	60mm	46mm	20mm	25mm	25mm	28.6mm	30mm	Mild steel	Plated finish
BTM-MHM-2452	M52x2 - 38S	1.1/2" BSPT	M52x2 - 38S	1.1/2" BSPT	64mm	55mm	22mm	25mm	32mm	32mm	38.3mm	Mild steel	Plated finish

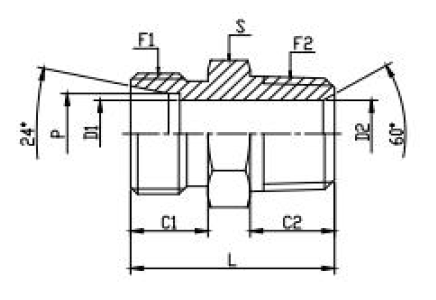

Key: L overall length, S hex across flats, C1 across corners 1, C2 across corners 2, D1 bore 1, D2 bore 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
