BSP Tapered Male x JIC 37° Male x JIC 37° Male Run Tee

A BSPT male in the middle of the run with a JIC male at each end. Screws into a BSPT port and carries a JIC line past it.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• JIC 37° Male – SAE J514 37° flare. It seals metal-to-metal on the 37° cone, so it takes no tape at all.
• BSP Tapered Male – BSPT to ISO 7 / BS 21. It seals on the tapered thread itself, so it needs PTFE tape or a liquid thread sealant.

How to Choose

• On a run tee the odd port sits in the middle of the run and the two matching ports are the ends. It is the opposite layout to a branch tee, so check which one the job needs before you order.
• The BSPT leg seals on the thread and needs sealant. The two JIC ends seal dry.
• Confirm the port is BSPT and not NPT before you wind it in.

Technicians Advice

Wind the tapered leg in hand tight plus two or three turns and stop, then do the cones. Chasing a weep on that leg with more torque cracks the port it is screwed into.

Where You’ll Find It

• JIC 37° Male – Hose ends and ports on imported US and Asian machinery – Caterpillar, John Deere, Case IH, New Holland, Bobcat, Kubota, Takeuchi.
• BSP Tapered Male – Older Australian and British pipework, gauge ports, tank and return lines, and cast pump and gearbox housings.

Cross-Reference

• JIC 37° Male – SAE J514 / ISO 8434-2 37° flare. Parker call this series Triple-Lok. The industrial cousin of the AN 37° flare used in aviation and motorsport.
• BSP Tapered Male – BSPT to ISO 7 / BS 21, written R for male. Sometimes labelled PT or BSP taper.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	S1	C	Material	Finish
BTM-JIM-JIM-020707	7/16" JIC	1/8" BSPT	11mm	7/16" JIC	Mild steel	Plated finish
BTM-JIM-JIM-040707	7/16" JIC	1/4" BSPT	14mm	7/16" JIC	Mild steel	Plated finish
BTM-JIM-JIM-040909	9/16" JIC	1/4" BSPT	14mm	9/16" JIC	Mild steel	Plated finish
BTM-JIM-JIM-060909	9/16" JIC	3/8" BSPT	19mm	9/16" JIC	Mild steel	Plated finish
BTM-JIM-JIM-061212	3/4" JIC	3/8" BSPT	19mm	3/4" JIC	Mild steel	Plated finish
BTM-JIM-JIM-081212	3/4" JIC	1/2" BSPT	22mm	3/4" JIC	Mild steel	Plated finish
BTM-JIM-JIM-081414	7/8" JIC	1/2" BSPT	22mm	7/8" JIC	Mild steel	Plated finish
BTM-JIM-JIM-121717	1.1/16" JIC	3/4" BSPT	27mm	1.1/16" JIC	Mild steel	Plated finish
BTM-JIM-JIM-162121	1.5/16" JIC	1" BSPT	33mm	1.5/16" JIC	Mild steel	Plated finish

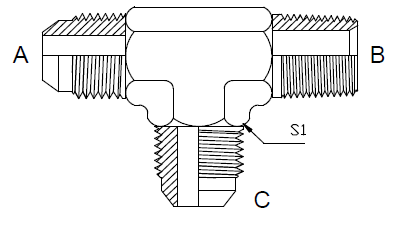

Key: S1 hex across flats 2, C across corners. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
