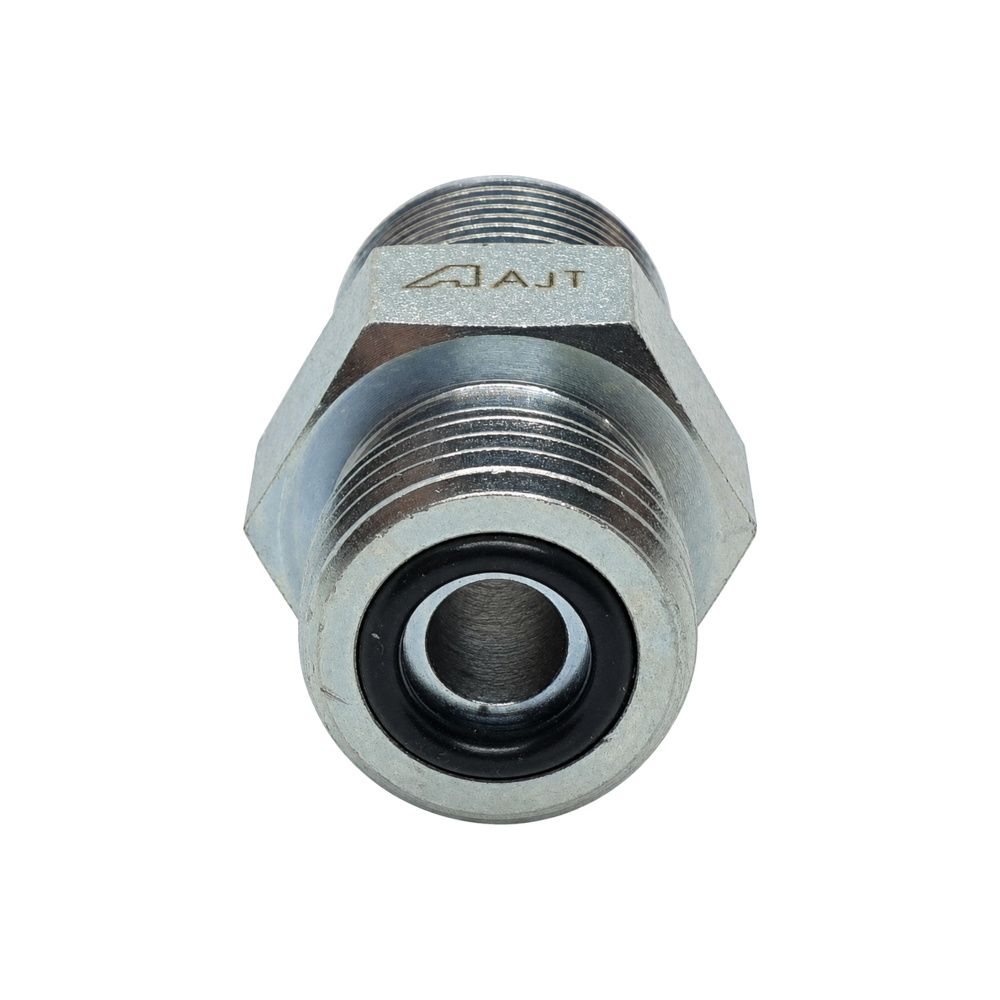

BSP Tapered Male x Chinese Flat Face Male Straight Adaptor

BSPT into an Australian port, Chinese flat-face male out to the machine. The crossover for Chinese-built plant working locally, where the port pattern looks familiar but is not ORFS.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• BSP Tapered Male – BSPT to ISO 7 / BS 21. It seals on the tapered thread itself, so it needs PTFE tape or a liquid thread sealant.
• Chinese Flat Face Male – metric flat-face pattern used on Chinese-built equipment. It seals on a flat face with an O-ring rather than a cone.

How to Choose

• The flat face is not ORFS. It looks similar and will not seal against it, so check the face diameter and thread against the port.
• Tape or sealant on the BSPT end only. The flat face seals on its O-ring.
• Confirm the O-ring is present in the face before assembly.

Technicians Advice

The trap here is assuming Chinese flat face and ORFS are the same because both seal on a flat face with an O-ring. Thread and face sizes differ. If a joint pulls up but weeps straight away, measure the face rather than reaching for a bigger spanner.

Where You’ll Find It

• BSP Tapered Male – Older Australian and British pipework, gauge ports, tank and return lines, and cast pump and gearbox housings.
• Chinese Flat Face Male – Chinese-built excavators, loaders and attachments – SANY, XCMG, LiuGong, Lovol and similar.

Cross-Reference

• BSP Tapered Male – BSPT to ISO 7 / BS 21, written R for male. Sometimes labelled PT or BSP taper.
• Chinese Flat Face Male – Metric flat-face pattern. Not an ORFS substitute despite the similar look – confirm the face and thread against the port.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H1	Material	Finish
BTM-MCM-0414	M14x1.5	1/4" BSPT	33mm	17mm	Mild steel	Plated finish
BTM-MCM-0416	M16x1.5	1/4" BSPT	34mm	17mm	Mild steel	Plated finish
BTM-MCM-0614	M14x1.5	3/8" BSPT	35mm	19mm	Mild steel	Plated finish
BTM-MCM-0616	M16x1.5	3/8" BSPT	36mm	19mm	Mild steel	Plated finish
BTM-MCM-0618	M18x1.5	3/8" BSPT	37mm	19mm	Mild steel	Plated finish
BTM-MCM-0816	M16x1.5	1/2" BSPT	40mm	22mm	Mild steel	Plated finish
BTM-MCM-0818	M18x1.5	1/2" BSPT	41mm	22mm	Mild steel	Plated finish

Key: L overall length, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
