BSP Tapered Male x BSP Swivel Female x BSP Tapered Male Run Tee

A BSP swivel female in the middle with a BSPT male at each end. Puts a hose take-off into a threaded BSP run without twisting it.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• BSP Tapered Male – BSPT to ISO 7 / BS 21. It seals on the tapered thread itself, so it needs PTFE tape or a liquid thread sealant.
• BSP Swivel Female – BSPP to ISO 228 with a 60° internal cone seat. It seals on the cone and swivels, so it needs no tape or sealant.

How to Choose

• On a run tee the odd port sits in the middle of the run and the two matching ports are the ends. It is the opposite layout to a branch tee, so check which one the job needs before you order.
• The two tapered males seal on the thread and need sealant. The swivel female seals on its cone and does not.
• Do the tapered ends first, then wipe your hands before touching the cone.

Technicians Advice

Sealant carried onto the swivel cone is the classic tee mistake. It passes a pressure test and seeps in service. Two ends sealed, one clean, and clean hands in between.

Where You’ll Find It

• BSP Tapered Male – Older Australian and British pipework, gauge ports, tank and return lines, and cast pump and gearbox housings.
• BSP Swivel Female – Hose ends across Australian-built assemblies, and anywhere a joint has to be broken and remade repeatedly.

Cross-Reference

• BSP Tapered Male – BSPT to ISO 7 / BS 21, written R for male. Sometimes labelled PT or BSP taper.
• BSP Swivel Female – BSPP body to ISO 228 with a 60° cone seat. Commonly called a BSP swivel or BSP female cone seat.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	H	S1	C	Material	Finish
BTM-BSF-BTM-040404	1/4" BSPT	1/4" BSPP	19mm	14mm	1/4" BSPT	Mild steel	Plated finish
BTM-BSF-BTM-060606	3/8" BSPT	3/8" BSPP	22mm	16mm	3/8" BSPT	Mild steel	Plated finish
BTM-BSF-BTM-080808	1/2" BSPT	1/2" BSPP	27mm	22mm	1/2" BSPT	Mild steel	Plated finish
BTM-BSF-BTM-121212	3/4" BSPT	3/4" BSPP	32mm	27mm	3/4" BSPT	Mild steel	Plated finish
BTM-BSF-BTM-161616	1" BSPT	1" BSPP	38mm	33mm	1" BSPT	Mild steel	Plated finish
BTM-BSF-BTM-202020	1.1/4" BSPT	1.1/4" BSPP	50mm	41mm	1.1/4" BSPT	Mild steel	Plated finish
BTM-BSF-BTM-242424	1.1/2" BSPT	1.1/2" BSPP	50mm	41mm	1.1/2" BSPT	Mild steel	Plated finish

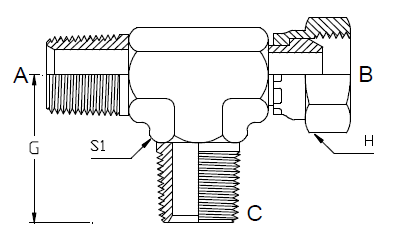

Key: H centre to face, S1 hex across flats 2, C across corners. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
