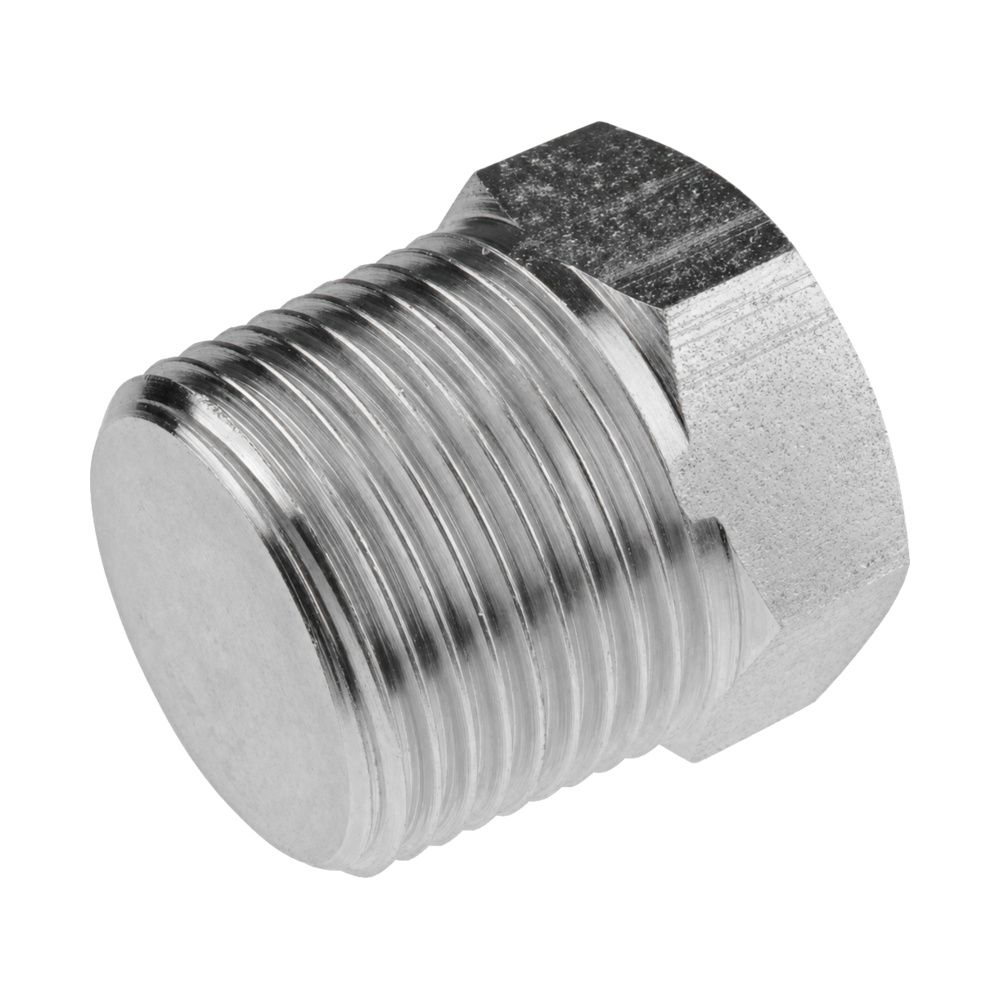

BSP Tapered Male Solid Blanking Plug

A solid BSP tapered plug with an external hex head. No internal drive, just a solid body, for permanently blanking a BSPT port.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Why You Need JIC Plugs Caps & O Ring Kit When Doing Hydraulic Repairs

Thread Standards

• BSP Tapered Male – BSPT to ISO 7 / BS 21. It seals on the tapered thread itself, so it needs PTFE tape or a liquid thread sealant.

How to Choose

• A plug is male and blocks a female port. A cap is female and covers a male end. Work out which one the open connection is before you order.
• Solid means there is no hollow through the middle and no internal hex. It is the strongest form of the plug.
• Seals on the tapered thread and needs sealant.

Technicians Advice

A solid plug is the one to use where the port is going to stay blanked. It has no socket to round out and no thin wall to split, so it is the right choice on a high-pressure gallery you do not intend to open again.

Where You’ll Find It

• BSP Tapered Male – Older Australian and British pipework, gauge ports, tank and return lines, and cast pump and gearbox housings.

Cross-Reference

• BSP Tapered Male – BSPT to ISO 7 / BS 21, written R for male. Sometimes labelled PT or BSP taper.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.
