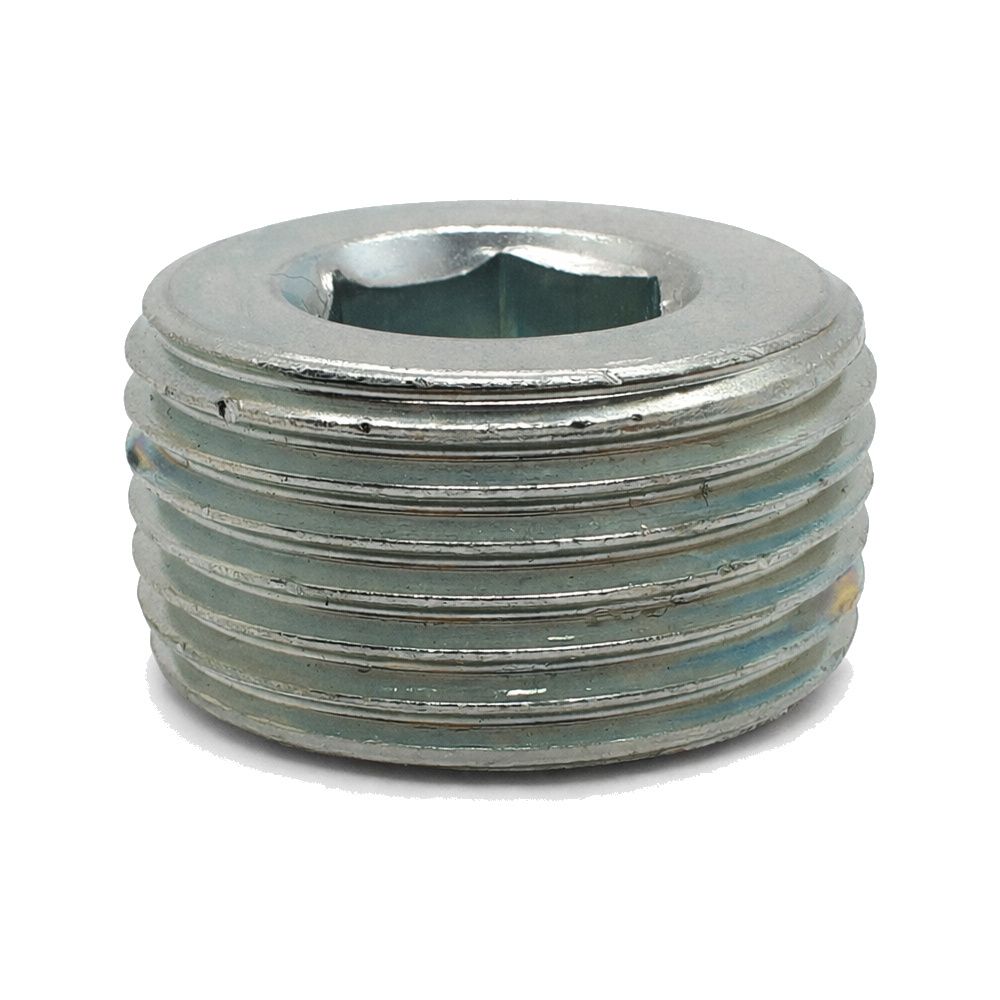

BSP Tapered Male Countersunk Blanking Plug

A BSP tapered plug with an internal hex head that sits flush. For blanking a BSPT port in a tight spot.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Why You Need JIC Plugs Caps & O Ring Kit When Doing Hydraulic Repairs

Thread Standards

• BSP Tapered Male – BSPT to ISO 7 / BS 21. It seals on the tapered thread itself, so it needs PTFE tape or a liquid thread sealant.

How to Choose

• A plug is male and blocks a female port. A cap is female and covers a male end. Work out which one the open connection is before you order.
• Countersunk means the head takes an internal hex key and sits flush or below the port face. Handy where there is no room for a spanner, but you need the right allen key on the truck.
• The tapered thread still seals on itself and still needs sealant.

Technicians Advice

Keep the tape back off the first two threads. On a countersunk plug the tail has nowhere to go but into the port, and a strip of PTFE loose in a valve is a far bigger job than the plug ever was.

Where You’ll Find It

• BSP Tapered Male – Older Australian and British pipework, gauge ports, tank and return lines, and cast pump and gearbox housings.

Cross-Reference

• BSP Tapered Male – BSPT to ISO 7 / BS 21, written R for male. Sometimes labelled PT or BSP taper.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	L	Material	Finish
BTM-CS-02	1/8" BSPT	8mm	Mild steel	Plated finish
BTM-CS-04	1/4" BSPT	12mm	Mild steel	Plated finish
BTM-CS-06	3/8" BSPT	12mm	Mild steel	Plated finish
BTM-CS-08	1/2" BSPT	15mm	Mild steel	Plated finish
BTM-CS-12	3/4" BSPT	16mm	Mild steel	Plated finish
BTM-CS-16	1" BSPT	20mm	Mild steel	Plated finish

Key: L overall length. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)
