BSP Tapered Female x JIC 37° Male Straight Adaptor

BSP tapered female one end, JIC 37° male the other. The converter for landing a JIC line into a BSPT-threaded fitting or manifold.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• BSP Tapered Female – BSPT to ISO 7 / BS 21. It seals on the thread interference and must be taped or sealed.
• JIC 37° Male – SAE J514 37° flare. It seals metal-to-metal on the 37° cone, so it takes no tape at all.

How to Choose

• The tapered female seals on the thread and needs sealant. The JIC male seals dry on its 37° cone.
• BSPT is 55° and NPT is 60°. They start together and tear, so confirm what the mating male actually is.
• Keep sealant well clear of the JIC cone.

Technicians Advice

Hand tight plus two or three turns on the tapered end and stop. A tapered thread wedges as it goes, and the extra torque people put in chasing a weep is what cracks a cast housing.

Where You’ll Find It

• BSP Tapered Female – Female side of local pipework, adaptor blocks and gauge manifolds.
• JIC 37° Male – Hose ends and ports on imported US and Asian machinery – Caterpillar, John Deere, Case IH, New Holland, Bobcat, Kubota, Takeuchi.

Cross-Reference

• BSP Tapered Female – BSPT to ISO 7 / BS 21, written Rc for female.
• JIC 37° Male – SAE J514 / ISO 8434-2 37° flare. Parker call this series Triple-Lok. The industrial cousin of the AN 37° flare used in aviation and motorsport.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H1	Material	Finish
BTF-JIM-0207	7/16" JIC	1/8" BSPT	30mm	14mm	Mild steel	Plated finish
BTF-JIM-0407	7/16" JIC	1/4" BSPT	36mm	19mm	Mild steel	Plated finish
BTF-JIM-0409	9/16" JIC	1/4" BSPT	36mm	19mm	Mild steel	Plated finish
BTF-JIM-0609	9/16" JIC	3/8" BSPT	37mm	22mm	Mild steel	Plated finish
BTF-JIM-0612	3/4" JIC	3/8" BSPT	40mm	22mm	Mild steel	Plated finish
BTF-JIM-0809	9/16" JIC	1/2" BSPT	43mm	27mm	Mild steel	Plated finish
BTF-JIM-0812	3/4" JIC	1/2" BSPT	46mm	27mm	Mild steel	Plated finish
BTF-JIM-0814	7/8" JIC	1/2" BSPT	48mm	27mm	Mild steel	Plated finish
BTF-JIM-0817	1.1/16" JIC	1/2" BSPT	52mm	30mm	Mild steel	Plated finish
BTF-JIM-1217	1.1/16" JIC	3/4" BSPT	53mm	36mm	Mild steel	Plated finish
BTF-JIM-1621	1.5/16" JIC	1" BSPT	60mm	41mm	Mild steel	Plated finish

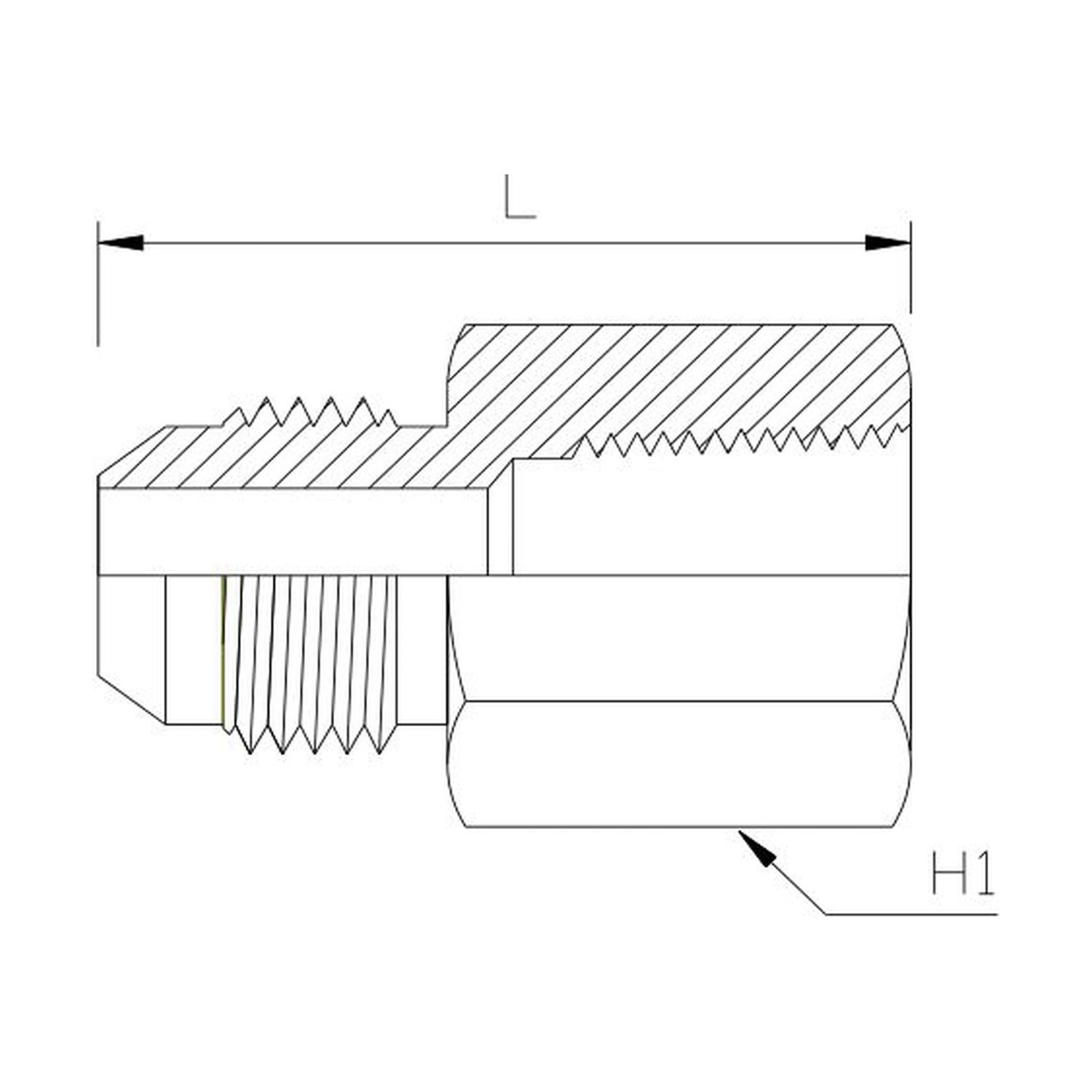

Key: L overall length, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
