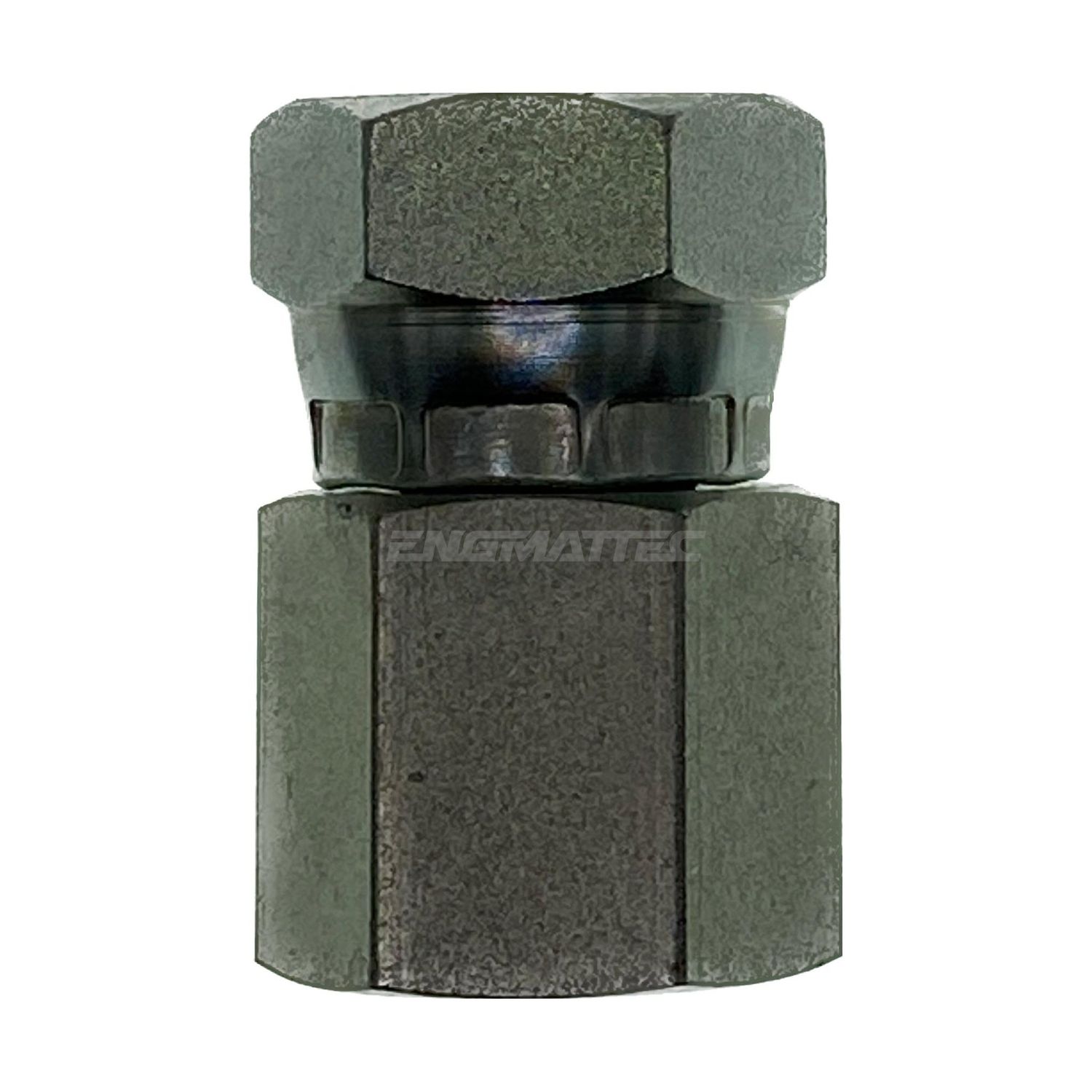

BSP Swivel Female x BSP Tapered Female Straight Adaptor

BSP swivel female one end, BSP tapered female the other. Joins a BSP hose end to a BSPT male fitting, with the swivel end taking the twist out of assembly.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• BSP Swivel Female – BSPP to ISO 228 with a 60° internal cone seat. It seals on the cone and swivels, so it needs no tape or sealant.
• BSP Tapered Female – BSPT to ISO 7 / BS 21. It seals on the thread interference and must be taped or sealed.

How to Choose

• The swivel female seals on its 60° cone and turns. Nothing goes on that thread.
• The tapered female needs sealant on whatever male winds into it.
• Two females on one part, so both mating parts are males. Check both sizes before you order.

Technicians Advice

Because the tapered end is a female here, it is the part that splits if the male going in is over-tightened. Hand tight plus two or three turns on that male and stop, and let the sealant close the joint rather than the torque.

Where You’ll Find It

• BSP Swivel Female – Hose ends across Australian-built assemblies, and anywhere a joint has to be broken and remade repeatedly.
• BSP Tapered Female – Female side of local pipework, adaptor blocks and gauge manifolds.

Cross-Reference

• BSP Swivel Female – BSPP body to ISO 228 with a 60° cone seat. Commonly called a BSP swivel or BSP female cone seat.
• BSP Tapered Female – BSPT to ISO 7 / BS 21, written Rc for female.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H	H1	Material	Finish
BSF-BTF-0404	1/4" BSPT	1/4" BSPP	31mm	19mm	19mm	Mild steel	Plated finish
BSF-BTF-0606	3/8" BSPT	3/8" BSPP	33mm	22mm	22mm	Mild steel	Plated finish
BSF-BTF-0808	1/2" BSPT	1/2" BSPP	40mm	27mm	27mm	Mild steel	Plated finish
BSF-BTF-1212	3/4" BSPT	3/4" BSPP	42mm	36mm	36mm	Mild steel	Plated finish
BSF-BTF-1616	1" BSPT	1" BSPP	48mm	41mm	41mm	Mild steel	Plated finish

Key: L overall length, H centre to face, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)
