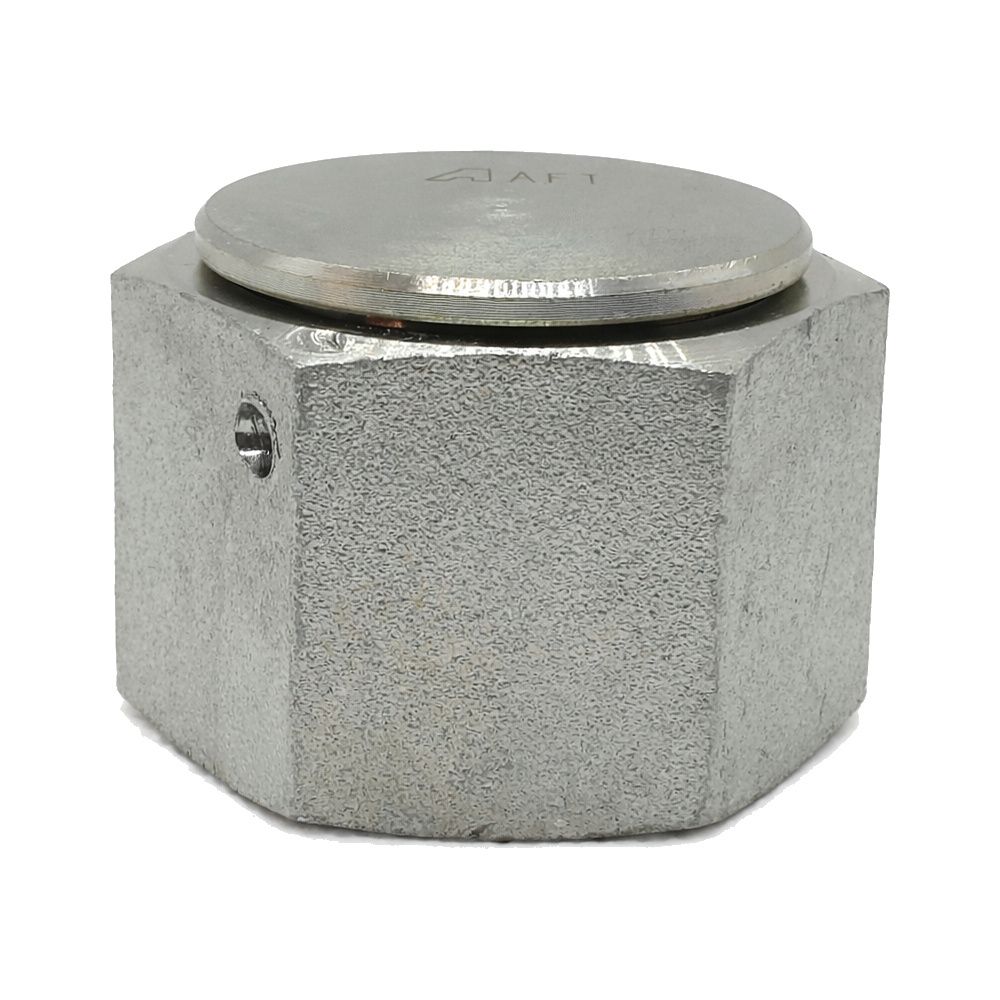

BSP Swivel Female Cap

A BSP swivel female cap for covering an exposed BSP male end or hose tail. Screws on and seals on the internal cone.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Why You Need JIC Plugs Caps & O Ring Kit When Doing Hydraulic Repairs

Thread Standards

• BSP Swivel Female – BSPP to ISO 228 with a 60° internal cone seat. It seals on the cone and swivels, so it needs no tape or sealant.

How to Choose

• A cap is female and covers a male end. A plug is male and blocks a female port. Check which the open connection is before you order.
• Seals on the 60° internal cone and swivels, so nothing goes on the thread.
• Do not use it on a BSPT tapered male expecting a thread seal. The cone does the sealing here.

Technicians Advice

Cap a hose the moment it comes off the machine. It keeps the oil in the hose and the dirt out of the bore, and a capped hose can go back on later instead of being flushed or binned.

Where You’ll Find It

• BSP Swivel Female – Hose ends across Australian-built assemblies, and anywhere a joint has to be broken and remade repeatedly.

Cross-Reference

• BSP Swivel Female – BSPP body to ISO 228 with a 60° cone seat. Commonly called a BSP swivel or BSP female cone seat.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	H	Material	Finish
BSF-02	1/8" BSPP	14mm	Mild steel	Plated finish
BSF-04	1/4" BSPP	19mm	Mild steel	Plated finish
BSF-06	3/8" BSPP	22mm	Mild steel	Plated finish
BSF-08	1/2" BSPP	27mm	Mild steel	Plated finish
BSF-10	5/8" BSPP	32mm	Mild steel	Plated finish
BSF-12	3/4" BSPP	32mm	Mild steel	Plated finish
BSF-16	1" BSPP	41mm	Mild steel	Plated finish
BSF-20	1.1/4" BSPP	50mm	Mild steel	Plated finish
BSF-24	1.1/2" BSPP	55mm	Mild steel	Plated finish
BSF-32	2" BSPP	70mm	Mild steel	Plated finish

Key: H centre to face. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)
