BSP Parallel Male x Tubeweld Female Straight Weld-On Adaptor

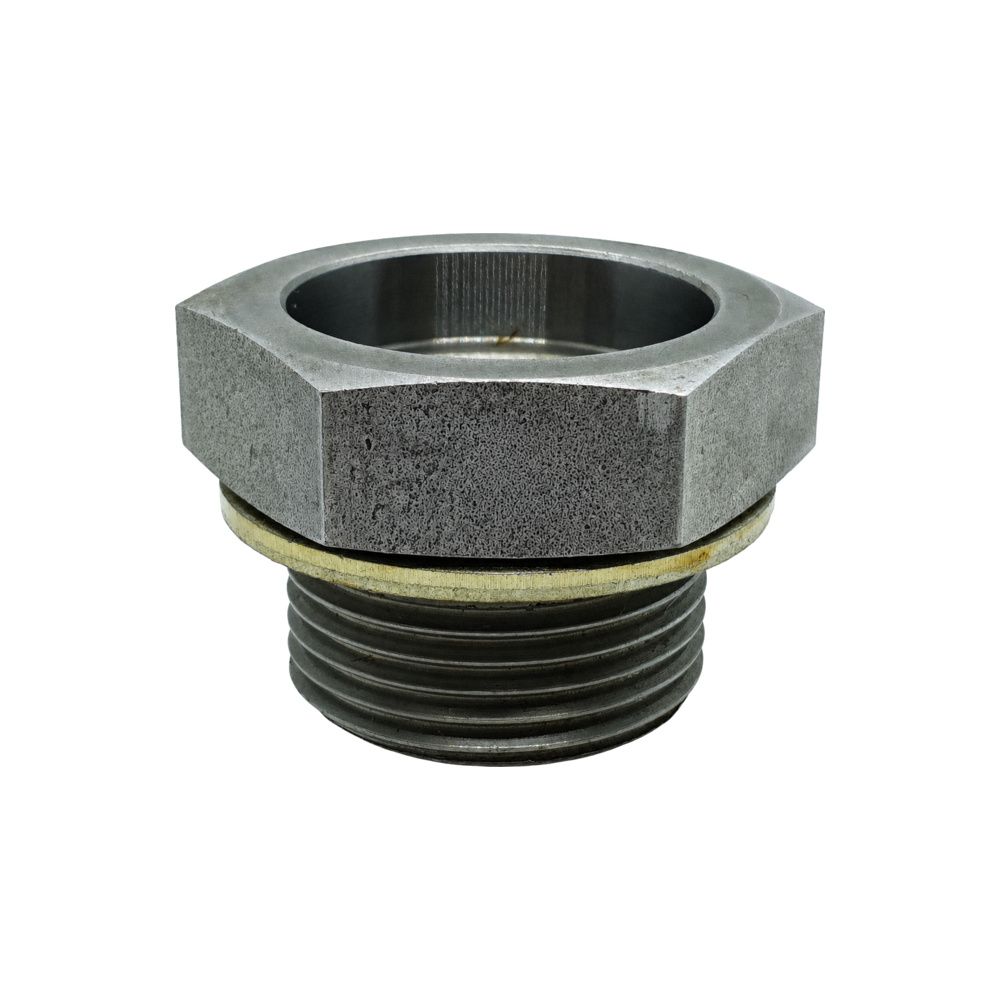

A BSP parallel male one end and a plain weld socket the other. Puts a threaded BSPP connection onto a fabricated tube run.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• BSP Parallel Male – BSPP to ISO 228. It seals on a bonded washer against the port face or on a 60° cone, never on the thread itself.
• Tubeweld Female (weld-on socket) – plain-bore socket sized to a tube OD, joined by welding rather than a thread. It has no seal of its own – the weld is the joint, so the tube must be clean, square and correctly prepared.

How to Choose

• Sized by tube outside diameter, not by thread. Measure the tube with vernier calipers rather than going by what the old fitting says.
• The BSPP end needs a bonded washer or a cone seat in the port. The weld end has no seal at all.
• Once welded it is permanent, so check the orientation and reach before you strike an arc.

Technicians Advice

Weld quality is the joint here. Clean the tube back to bright metal, get it square in the socket, and tack it in two or three places before you run the full weld so it does not pull out of line. Pressure test before it goes back into service.

Where You’ll Find It

• BSP Parallel Male – Valve and manifold ports on Australian, British and Asian-built equipment, and most locally made hose ends. The default port thread on Australian truck and agricultural hydraulics.
• Tubeweld Female (weld-on socket) – fabricated tube runs on machinery builds, tank and reservoir plumbing, and repairs where a threaded connection is not wanted or there is no room for one.

Cross-Reference

• BSP Parallel Male – BSPP to ISO 228 / BS 2779, written G. Also called BSP parallel or gas thread.
• Tubeweld Female (weld-on socket) – Weld-on socket, also called a weld nipple, weld boss or tubeweld end. Sized by tube outside diameter, not by thread.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H1	Material	Finish
BPM-TWF-0404	1/4" BSPP	1/4" Tube	20mm	19mm	Mild steel	Plated finish
BPM-TWF-0406	1/4" BSPP	3/8" Tube	20mm	19mm	Mild steel	Plated finish
BPM-TWF-0606	3/8" BSPP	3/8" Tube	23mm	22mm	Mild steel	Plated finish
BPM-TWF-0608	3/8" BSPP	1/2" Tube	23mm	22mm	Mild steel	Plated finish
BPM-TWF-0808	1/2" BSPP	1/2" Tube	25mm	27mm	Mild steel	Plated finish
BPM-TWF-0810	1/2" BSPP	5/8" Tube	25mm	27mm	Mild steel	Plated finish
BPM-TWF-0812	1/2" BSPP	3/4" Tube	25mm	27mm	Mild steel	Plated finish
BPM-TWF-1212	3/4" BSPP	3/4" Tube	29mm	32mm	Mild steel	Plated finish
BPM-TWF-1216	3/4" BSPP	1" Tube	29mm	32mm	Mild steel	Plated finish
BPM-TWF-1616	1" BSPP	1" Tube	35mm	41mm	Mild steel	Plated finish
BPM-TWF-1620	1" BSPP	1.1/4" Tube	35mm	41mm	Mild steel	Plated finish
BPM-TWF-2020	1.1/4" BSPP	1.1/4" Tube	37mm	50mm	Mild steel	Plated finish
BPM-TWF-2420	1.1/2" BSPP	1.1/4" Tube	40mm	55mm	Mild steel	Plated finish
BPM-TWF-2432	1.1/2" BSPP	2" Tube	*mm	*mm	Mild steel	Plated finish

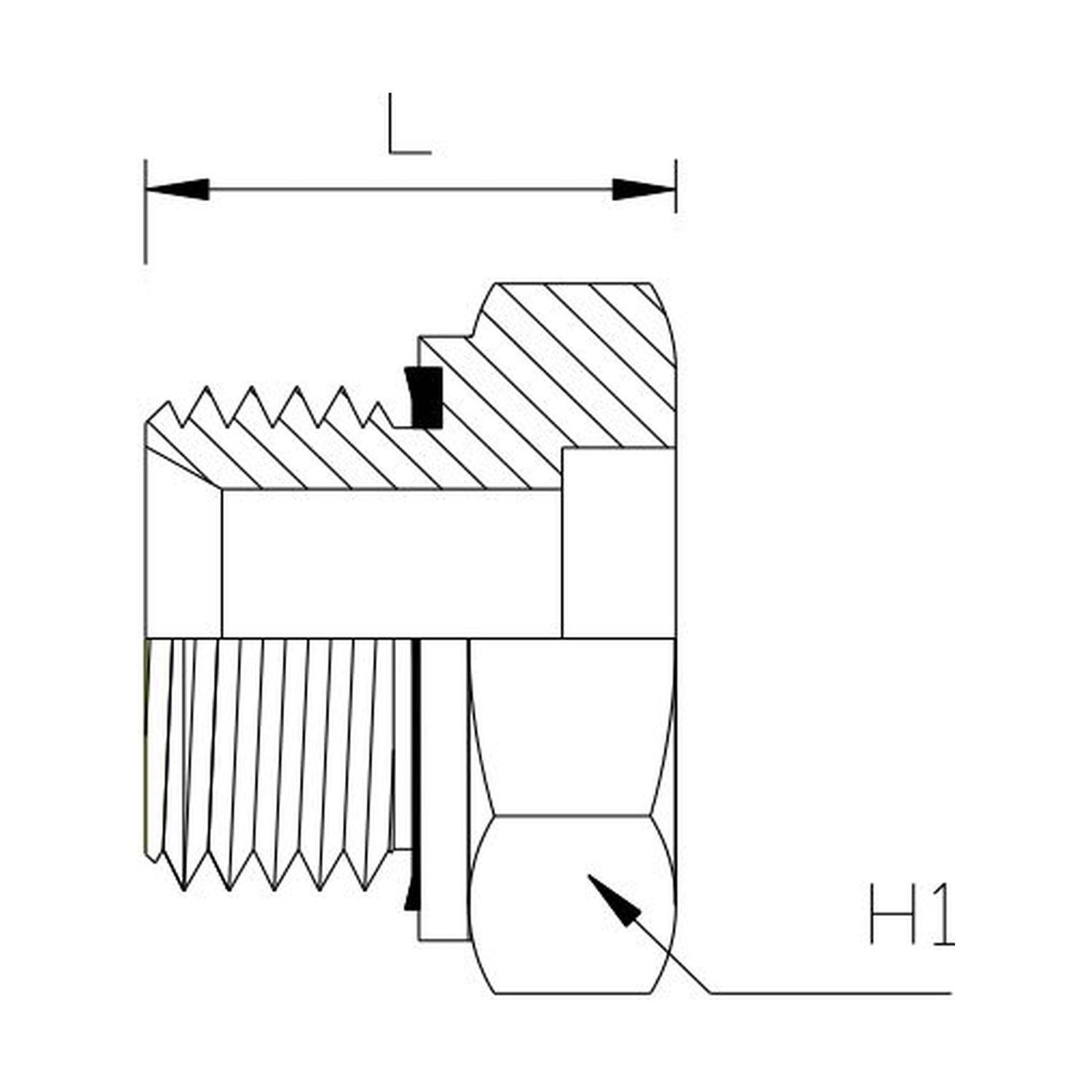

Key: L overall length, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
