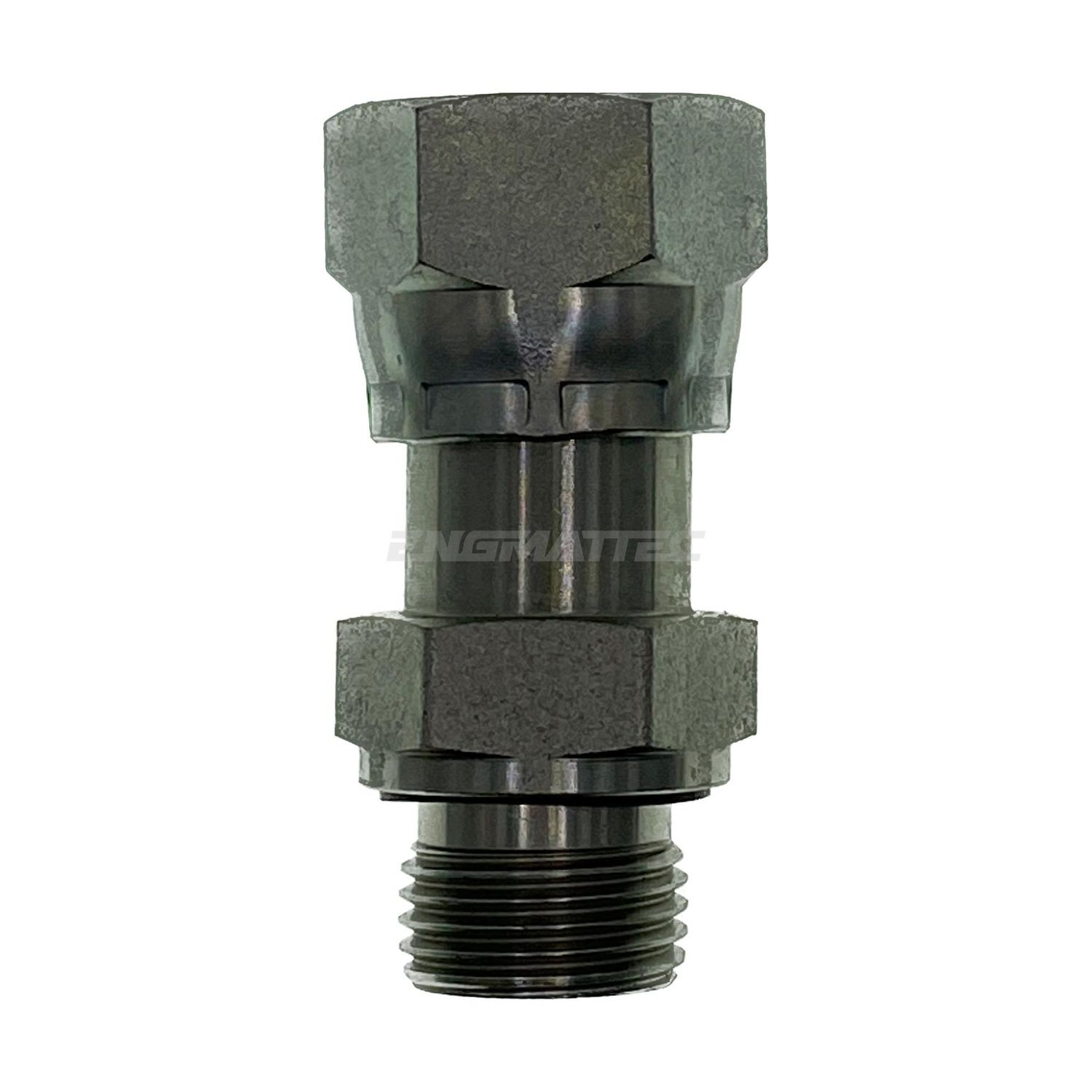

BSP Parallel Male x ORFS Swivel Female Straight Adaptor

BSP parallel male one end, O-ring face seal swivel female the other. Puts a flat-face ORFS hose onto a BSPP port, which is the pairing you want where a machine shakes hard.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• BSP Parallel Male – BSPP to ISO 228. It seals on a bonded washer against the port face or on a 60° cone, never on the thread itself.
• ORFS Swivel Female – SAE J1453 O-ring face seal. It clamps down onto the male flat face O-ring and swivels for alignment.

How to Choose

• The ORFS female seals on the O-ring in the mating flat face. Check that ring is seated square before you offer it up.
• The BSPP male seals on a bonded washer or a cone in the port. Two different methods on one part.
• ORFS thread size and line size are different numbers. Go by the dash size on the hose.

Technicians Advice

If the face seal weeps, pull it apart and look at the O-ring before touching the spanner. Nine times out of ten it has been nicked going on or left out. More torque on a flat face just flattens the ring.

Where You’ll Find It

• BSP Parallel Male – Valve and manifold ports on Australian, British and Asian-built equipment, and most locally made hose ends. The default port thread on Australian truck and agricultural hydraulics.
• ORFS Swivel Female – Hose ends on modern high-pressure plant where a cone joint would fret loose under vibration.

Cross-Reference

• BSP Parallel Male – BSPP to ISO 228 / BS 2779, written G. Also called BSP parallel or gas thread.
• ORFS Swivel Female – SAE J1453 / ISO 8434-3 O-ring face seal. Parker series Seal-Lok.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H	H1	Material	Finish
BPM-ORF-0409	1/4" BSPP	9/16" ORFS	38mm	17.5mm	19mm	Mild steel	Plated finish
BPM-ORF-0411	1/4" BSPP	11/16" ORFS	40mm	20.6mm	19mm	Mild steel	Plated finish
BPM-ORF-0611	3/8" BSPP	11/16" ORFS	40mm	20.6mm	22mm	Mild steel	Plated finish
BPM-ORF-0613	3/8" BSPP	13/16" ORFS	44mm	23.8mm	22mm	Mild steel	Plated finish
BPM-ORF-0813	1/2" BSPP	13/16" ORFS	48mm	23.8mm	27mm	Mild steel	Plated finish
BPM-ORF-0816	1/2" BSPP	1" ORFS	51mm	28.6mm	27mm	Mild steel	Plated finish
BPM-ORF-1219	3/4" BSPP	1.3/16" ORFS	56mm	34.9mm	32mm	Mild steel	Plated finish
BPM-ORF-1623	1" BSPP	1.7/16" ORFS	62mm	41.3mm	38mm	Mild steel	Plated finish

Key: L overall length, H centre to face, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
