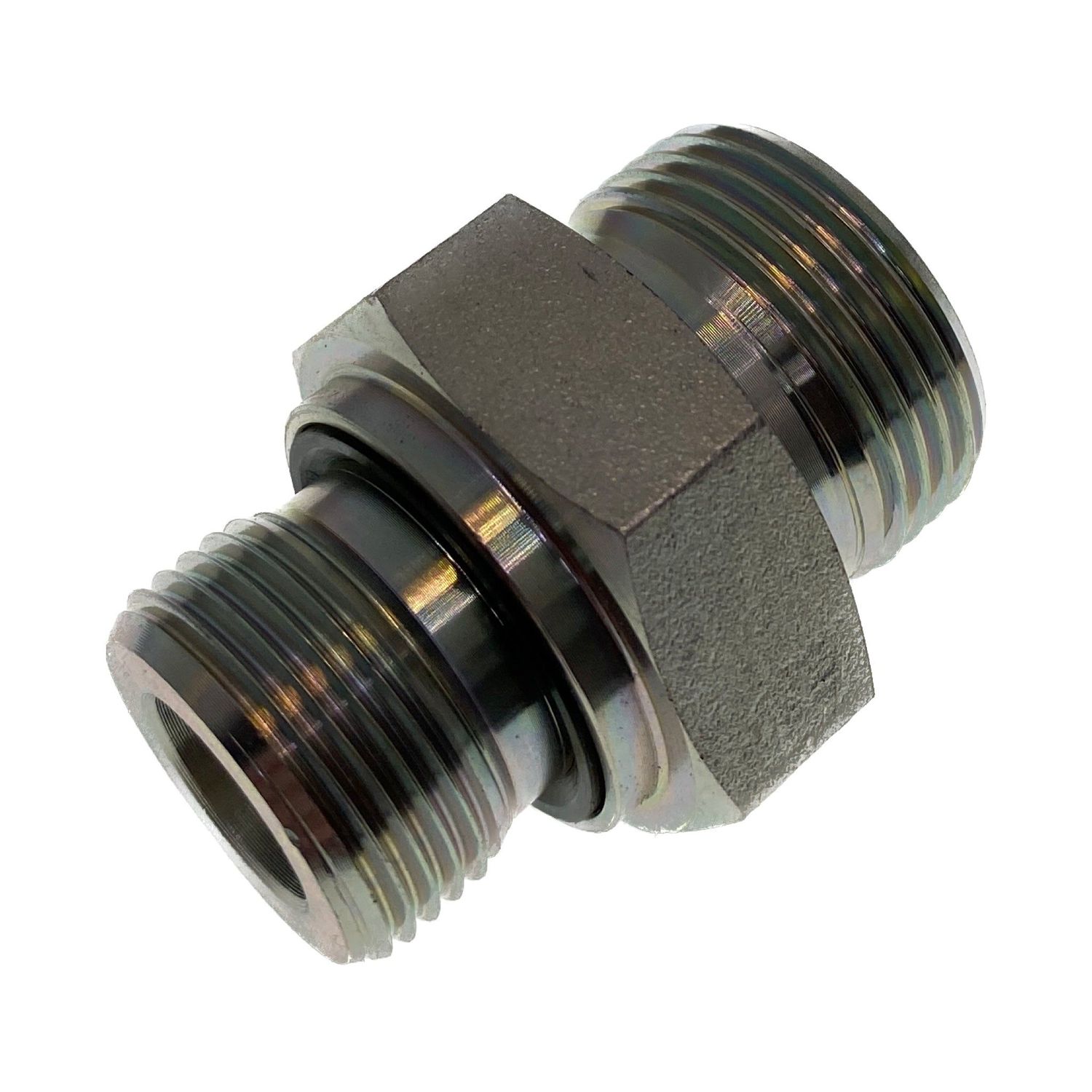

BSP Parallel Male x Metric Stud Male Straight Adaptor

BSPP one end, metric stud the other. Both ends seal on a soft washer under the shoulder rather than on the thread, which makes this a clean crossover between British and European port standards.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• BSP Parallel Male – BSPP to ISO 228. It seals on a bonded washer against the port face or on a 60° cone, never on the thread itself.
• Metric Stud Male – metric straight thread with a captive soft seal. It seals on a bonded washer or O-ring under the stud shoulder, not on the thread.

How to Choose

• Both ends need their seal. A bonded washer at the BSPP end, a bonded washer or O-ring under the metric stud shoulder.
• Confirm the metric thread pitch against the port - metric ports of the same diameter come in more than one pitch.
• Neither end takes tape.

Technicians Advice

The soft seal is the whole joint on both ends. Fit new ones and check both port faces are clean and flat. A reused washer that has already been crushed will not take up the gap a second time, and no amount of torque will make it.

Where You’ll Find It

• BSP Parallel Male – Valve and manifold ports on Australian, British and Asian-built equipment, and most locally made hose ends. The default port thread on Australian truck and agricultural hydraulics.
• Metric Stud Male – European valve blocks and manifolds using a metric port with a soft seal under the shoulder.

Cross-Reference

• BSP Parallel Male – BSPP to ISO 228 / BS 2779, written G. Also called BSP parallel or gas thread.
• Metric Stud Male – Metric straight thread with a bonded washer or O-ring. Confirm the port series against the block before ordering.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	F1	F2	L	S	C1	C2	D1	D2	Material	Finish
BPM-MSM-0414	1/4" BSPP	M14x1.5	1/4" BSPP	M14x1.5	32mm	19mm	11mm	11mm	4.7mm	4.7mm	Mild steel	Plated finish
BPM-MSM-0416	1/4" BSPP	M16x1.5	1/4" BSPP	M16x1.5	33.5mm	22mm	11mm	12mm	4.7mm	8.0mm	Mild steel	Plated finish
BPM-MSM-0418	1/4" BSPP	M18x1.5	1/4" BSPP	M18x1.5	33.5mm	24mm	11mm	12.5mm	4.7mm	10mm	Mild steel	Plated finish
BPM-MSM-0614	3/8" BSPP	M14x1.5	3/8" BSPP	M14x1.5	34mm	24mm	12mm	11mm	7.9mm	4.7mm	Mild steel	Plated finish
BPM-MSM-0616	3/8" BSPP	M16x1.5	3/8" BSPP	M16x1.5	34mm	24mm	12mm	11mm	7.9mm	4.7mm	Mild steel	Plated finish
BPM-MSM-0618	3/8" BSPP	M18x1.5	3/8" BSPP	M18x1.5	35mm	24mm	12mm	12.5mm	7.9mm	10mm	Mild steel	Plated finish
BPM-MSM-0818	1/2" BSPP	M18x1.5	1/2" BSPP	M18x1.5	36mm	27mm	14mm	12.5mm	11.1mm	10mm	Mild steel	Plated finish
BPM-MSM-1222	3/4" BSPP	M22x1.5	3/4" BSPP	M22x1.5	43.5mm	32mm	16mm	14mm	16mm	12mm	Mild steel	Plated finish
BPM-MSM-1230	3/4" BSPP	M30x2	3/4" BSPP	M30x2	–	–	–	–	–	–	Mild steel	Plated finish

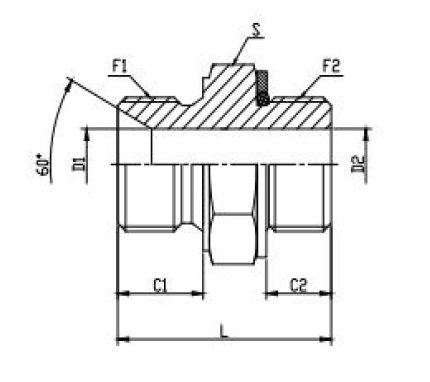

Key: L overall length, S hex across flats, C1 across corners 1, C2 across corners 2, D1 bore 1, D2 bore 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
