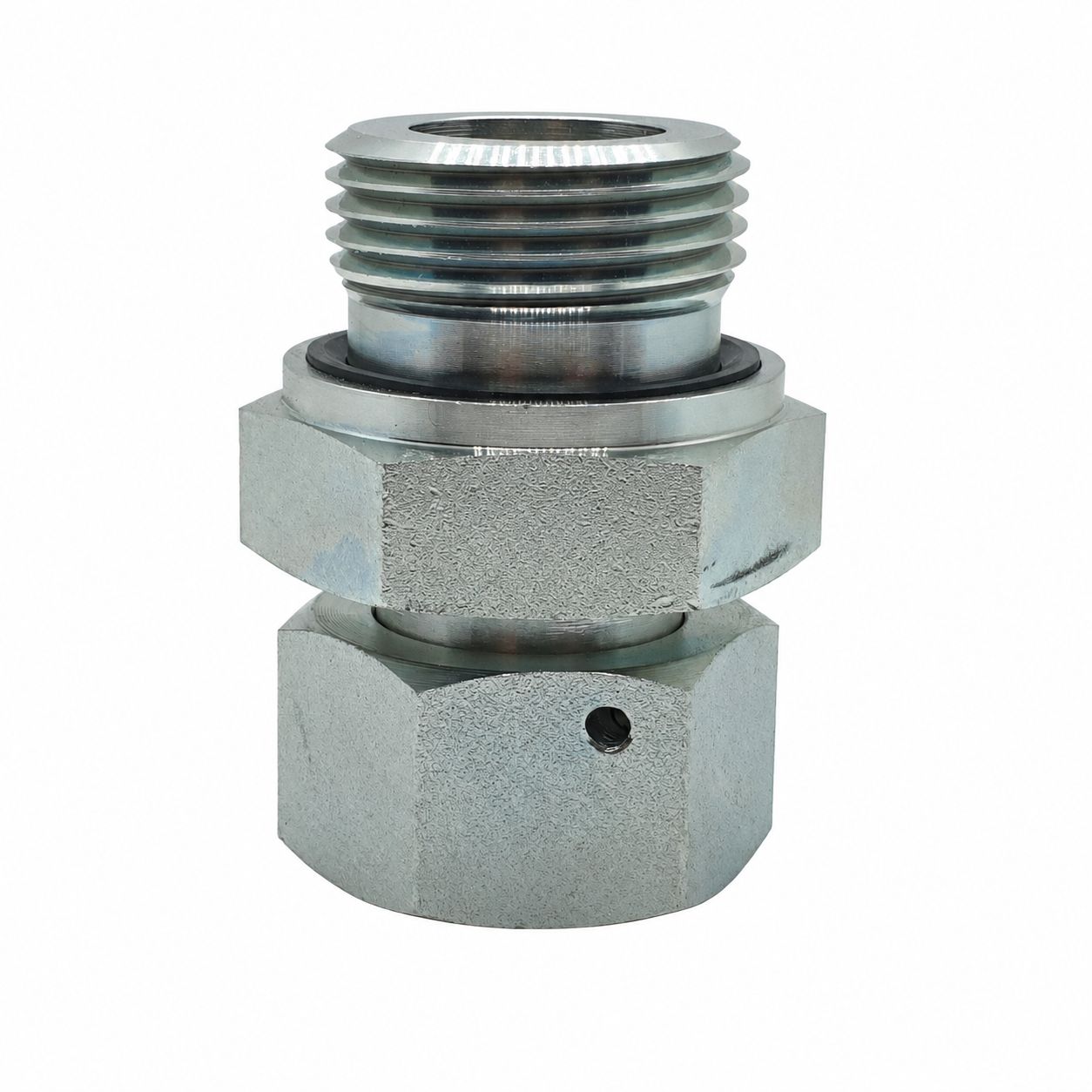

BSP Parallel Male x Metric Light (L) Swivel Female Straight Adaptor

BSP parallel male one end, light series metric swivel female the other. The usual joiner for landing European return, drain and pilot lines into a BSPP port.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• BSP Parallel Male – BSPP to ISO 228. It seals on a bonded washer against the port face or on a 60° cone, never on the thread itself.
• Metric Light (L) Swivel Female – DIN 2353 / ISO 8434-1 24° cone, light series. It pulls onto the mating 24° cone and swivels so the tube is not twisted.

How to Choose

• The swivel end turns as you tighten, so an assembled tube run is not twisted.
• Light series suits lower pressure work. Step up to heavy (S) where the circuit warrants it.
• The BSPP male needs a bonded washer or cone seat. No sealant on that thread.

Technicians Advice

Look into the mating cone with a torch first. Plain 24° and O-ring cones are not interchangeable, and telling them apart at the bench is far cheaper than finding out on the machine.

Where You’ll Find It

• BSP Parallel Male – Valve and manifold ports on Australian, British and Asian-built equipment, and most locally made hose ends. The default port thread on Australian truck and agricultural hydraulics.
• Metric Light (L) Swivel Female – European tube and hose assemblies on the lower-pressure side.

Cross-Reference

• BSP Parallel Male – BSPP to ISO 228 / BS 2779, written G. Also called BSP parallel or gas thread.
• Metric Light (L) Swivel Female – DIN 2353 / ISO 8434-1 24° cone, light (L) series. Parker EO / EO-2.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	F1	F2	L	S	S1	C	D1	D2	Material	Finish
BPM-MLF-0212	M12x1.5 - 6L Female	1/8" BSPP Male	M12x1.5 - 6L Female	1/8" BSPP Male	30.5mm	14mm	14mm	8mm	3mm	3mm	Mild steel	Plated finish
BPM-MLF-0412	M12x1.5 - 6L Female	1/4" BSPP Male	M12x1.5 - 6L Female	1/4" BSPP Male	37mm	19mm	14mm	12mm	3mm	3mm	Mild steel	Plated finish
BPM-MLF-0414	M14x1.5 - 8L Female	1/4" BSPP Male	M14x1.5 - 8L Female	1/4" BSPP Male	41.5mm	19mm	17mm	12mm	4mm	4mm	Mild steel	Plated finish
BPM-MLF-0416	M16x1.5 - 10L Female	1/4" BSPP Male	M16x1.5 - 10L Female	1/4" BSPP Male	39.5mm	19mm	19mm	12mm	6mm	6mm	Mild steel	Plated finish
BPM-MLF-0418	M18x1.5 - 12L Female	1/4" BSPP Male	M18x1.5 - 12L Female	1/4" BSPP Male	39.5mm	19mm	22mm	12mm	7.5mm	7.5mm	Mild steel	Plated finish
BPM-MLF-0614	M14x1.5 - 8L Female	3/8" BSPP Male	M14x1.5 - 8L Female	3/8" BSPP Male	37.1mm	17mm	22mm	12mm	4mm	9mm	Mild steel	Plated finish
BPM-MLF-0616	M16x1.5 - 10L Female	3/8" BSPP Male	M16x1.5 - 10L Female	3/8" BSPP Male	36mm	22mm	19mm	12mm	6mm	9mm	Mild steel	Plated finish
BPM-MLF-0618	M18x1.5 - 12L Female	3/8" BSPP Male	M18x1.5 - 12L Female	3/8" BSPP Male	46mm	22mm	22mm	12mm	7.5mm	7.5mm	Mild steel	Plated finish
BPM-MLF-0622	M22x1.5 - 15L Female	3/8" BSPP Male	M22x1.5 - 15L Female	3/8" BSPP Male	42.5mm	22mm	27mm	12mm	6mm	10mm	Mild steel	Plated finish
BPM-MLF-0818	M18x1.5 - 12L Female	1/2" BSPP Male	M18x1.5 - 12L Female	1/2" BSPP Male	43.5mm	27mm	22mm	14mm	8mm	8mm	Mild steel	Plated finish
BPM-MLF-0822	M22x1.5 - 15L Female	1/2" BSPP Male	M22x1.5 - 15L Female	1/2" BSPP Male	46mm	27mm	27mm	14mm	12mm	12mm	Mild steel	Plated finish
BPM-MLF-0826	M26x1.5 - 18L Female	1/2" BSPP Male	M26x1.5 - 18L Female	1/2" BSPP Male	45.5mm	27mm	32mm	14mm	12.5mm	12.5mm	Mild steel	Plated finish
BPM-MLF-1222	M22x1.5 - 15L Female	3/4" BSPP Male	M22x1.5 - 15L Female	3/4" BSPP Male	46mm	32mm	27mm	16mm	10mm	18mm	Mild steel	Plated finish
BPM-MLF-1226	M26x1.5 - 18L Female	3/4" BSPP Male	M26x1.5 - 18L Female	3/4" BSPP Male	45.9mm	32mm	32mm	16mm	12.5mm	12.5mm	Mild steel	Plated finish
BPM-MLF-1230	M30x2 - 22L Female	3/4" BSPP Male	M30x2 - 22L Female	3/4" BSPP Male	47.5mm	32mm	36mm	16mm	17mm	17mm	Mild steel	Plated finish
BPM-MLF-1236	M36x2 - 28L Female	3/4" BSPP Male	M36x2 - 28L Female	3/4" BSPP Male	52.9mm	32mm	41mm	16mm	18mm	18mm	Mild steel	Plated finish
BPM-MLF-1630	M30x2 - 22L Female	1" BSPP Male	M30x2 - 22L Female	1" BSPP Male	52.8mm	41mm	36mm	18mm	17mm	23mm	Mild steel	Plated finish
BPM-MLF-1636	M36x2 - 28L Female	1" BSPP Male	M36x2 - 28L Female	1" BSPP Male	53mm	41mm	41mm	18mm	22mm	22mm	Mild steel	Plated finish
BPM-MLF-1645	M45x2 - 35L Female	1" BSPP Male	M45x2 - 35L Female	1" BSPP Male	57.2mm	41mm	50mm	18mm	28mm	20mm	Mild steel	Plated finish
BPM-MLF-2045	M45x2 - 5L Female	1.1/4" BSPP Male	M45x2 - 5L Female	1.1/4" BSPP Male	60mm	50mm	50mm	20mm	27.5mm	27.5mm	Mild steel	Plated finish
BPM-MLF-2445	M45x2 - 35L Female	1.1/2" BSPP Male	M45x2 - 35L Female	1.1/2" BSPP Male	63.7mm	55mm	50mm	22mm	28mm	36mm	Mild steel	Plated finish
BPM-MLF-2452	M52x2 - 42L Female	1.1/2" BSPP Male	M52x2 - 42L Female	1.1/2" BSPP Male	63mm	55mm	60mm	22mm	34mm	29mm	Mild steel	Plated finish

Key: L overall length, S hex across flats, S1 hex across flats 2, C across corners, D1 bore 1, D2 bore 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
