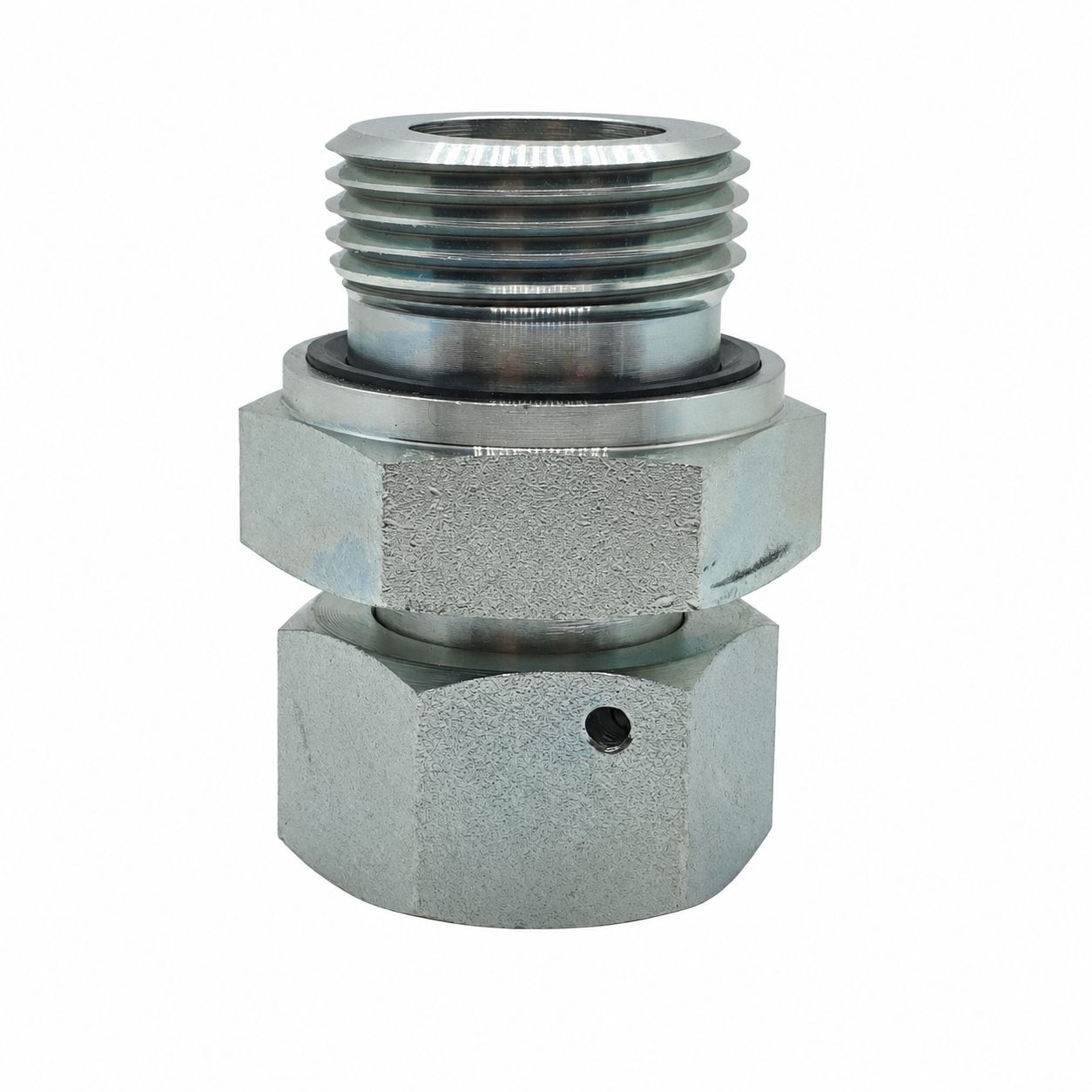

BSP Parallel Male x Metric Heavy (S) Swivel Female Straight Adaptor

BSP parallel male one end, heavy series metric swivel female the other. Lands a high-pressure European tube or hose end into a BSPP port without twisting the run.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• BSP Parallel Male – BSPP to ISO 228. It seals on a bonded washer against the port face or on a 60° cone, never on the thread itself.
• Metric Heavy (S) Swivel Female – DIN 2353 / ISO 8434-1 24° cone, heavy series. It pulls onto the mating 24° cone and swivels so the tube is not twisted.

How to Choose

• The metric swivel female pulls onto the mating 24° cone and turns, so the tube is not wound up during assembly.
• Heavy (S) series is built for the pressures the light series runs out of. Match it to the circuit, not just the thread.
• The BSPP male seals on a bonded washer or a cone in the port, never on the thread.

Technicians Advice

Check the mating male cone for a captured O-ring before you commit. An O-ring cone pulled into a plain seat will hold for a shift then let go, and it looks like a torque problem when it is a parts problem.

Where You’ll Find It

• BSP Parallel Male – Valve and manifold ports on Australian, British and Asian-built equipment, and most locally made hose ends. The default port thread on Australian truck and agricultural hydraulics.
• Metric Heavy (S) Swivel Female – Pressure-side European tube assemblies needing a re-breakable joint.

Cross-Reference

• BSP Parallel Male – BSPP to ISO 228 / BS 2779, written G. Also called BSP parallel or gas thread.
• Metric Heavy (S) Swivel Female – DIN 2353 / ISO 8434-1 24° cone, heavy (S) series. Parker EO / EO-2.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	F1	F2	L	S	S1	C	D1	D2	Material	Finish
BPM-MHF-0214	M14x1.5 - 6S Female	1/8" BSPP Male	M14x1.5 - 6S Female	1/8" BSPP Male	28.9mm	14mm	17mm	8mm	3mm	3mm	Mild steel	Plated finish
BPM-MHF-0414	M14x1.5 - 6S Female	1/4" BSPP Male	M14x1.5 - 6S Female	1/4" BSPP Male	36.5mm	19mm	17mm	12mm	3mm	3mm	Mild steel	Plated finish
BPM-MHF-0416	M16x1.5 - 8S Female	1/4" BSPP Male	M16x1.5 - 8S Female	1/4" BSPP Male	41.5mm	19mm	19mm	12mm	4mm	4mm	Mild steel	Plated finish
BPM-MHF-0418	M18x1.5 - 10S Female	1/4" BSPP Male	M18x1.5 - 10S Female	1/4" BSPP Male	38.5mm	19mm	22mm	12mm	6mm	6mm	Mild steel	Plated finish
BPM-MHF-0420	M20x1.5 - 12S Female	1/4" BSPP Male	M20x1.5 - 12S Female	1/4" BSPP Male	42.5mm	19mm	24mm	12mm	7mm	7mm	Mild steel	Plated finish
BPM-MHF-0616	M16x1.5 - 8S Female	3/8" BSPP Male	M16x1.5 - 8S Female	3/8" BSPP Male	37.9mm	22mm	19mm	12mm	4mm	8mm	Mild steel	Plated finish
BPM-MHF-0618	M18x1.5 - 10S Female	3/8" BSPP Male	M18x1.5 - 10S Female	3/8" BSPP Male	42.5mm	22mm	22mm	12mm	6mm	9.9mm	Mild steel	Plated finish
BPM-MHF-0620	M20x1.5 - 12S Female	3/8" BSPP Male	M20x1.5 - 12S Female	3/8" BSPP Male	44mm	22mm	24mm	12mm	8mm	8mm	Mild steel	Plated finish
BPM-MHF-0622	M22x1.5 - 14S Female	3/8" BSPP Male	M22x1.5 - 14S Female	3/8" BSPP Male	41.2mm	22mm	27mm	12mm	8mm	8mm	Mild steel	Plated finish
BPM-MHF-0624	M24x1.5 - 16S Female	3/8" BSPP Male	M24x1.5 - 16S Female	3/8" BSPP Male	42.5mm	22mm	30mm	12mm	7mm	7mm	Mild steel	Plated finish
BPM-MHF-0818	M18x1.5 - 10S Female	1/2" BSPP Male	M18x1.5 - 10S Female	1/2" BSPP Male	41mm	27mm	22mm	12mm	6mm	12mm	Mild steel	Plated finish
BPM-MHF-0820	M20x1.5 - 12S Female	1/2" BSPP Male	M20x1.5 - 12S Female	1/2" BSPP Male	40.5mm	27mm	24mm	14mm	8mm	12mm	Mild steel	Plated finish
BPM-MHF-0822	M22x1.5 - 14S Female	1/2" BSPP Male	M22x1.5 - 14S Female	1/2" BSPP Male	44.5mm	27mm	27mm	14mm	10mm	10mm	Mild steel	Plated finish
BPM-MHF-0824	M24x1.5 - 16S Female	1/2" BSPP Male	M24x1.5 - 16S Female	1/2" BSPP Male	49mm	27mm	30mm	14mm	10mm	10mm	Mild steel	Plated finish
BPM-MHF-0830	M30x2 - 20S Female	1/2" BSPP Male	M30x2 - 20S Female	1/2" BSPP Male	50.6mm	32mm	36mm	16mm	12mm	12mm	Mild steel	Plated finish
BPM-MHF-0836	M36x2 - 25S Female	1/2" BSPP Male	M36x2 - 25S Female	1/2" BSPP Male	52.3mm	27mm	46mm	14mm	18mm	12mm	Mild steel	Plated finish
BPM-MHF-1224	M24x2 - 16S Female	3/4" BSPP Male	M24x2 - 16S Female	3/4" BSPP Male	45.5mm	32mm	30mm	16mm	10mm	16mm	Mild steel	Plated finish
BPM-MHF-1230	M30x2 - 20S Female	3/4" BSPP Male	M30x2 - 20S Female	3/4" BSPP Male	50mm	32mm	36mm	16mm	14mm	14mm	Mild steel	Plated finish
BPM-MHF-1236	M36x2 - 25S Female	3/4" BSPP Male	M36x2 - 25S Female	3/4" BSPP Male	54.5mm	32mm	46mm	16mm	16mm	16mm	Mild steel	Plated finish
BPM-MHF-1630	M30x2 - 20S Female	1" BSPP Male	M30x2 - 20S Female	1" BSPP Male	56.5mm	41mm	36mm	18mm	14mm	20mm	Mild steel	Plated finish
BPM-MHF-1636	M36x2 - 25S Female	1" BSPP Male	M36x2 - 25S Female	1" BSPP Male	60mm	41mm	46mm	18mm	18mm	18mm	Mild steel	Plated finish
BPM-MHF-1642	M42x2 - 30S Female	1" BSPP Male	M42x2 - 30S Female	1" BSPP Male	55.8mm	41mm	50mm	18mm	20mm	20mm	Mild steel	Plated finish
BPM-MHF-2036	M36x2 - 25S Female	1.1/4" BSPP Male	M36x2 - 25S Female	1.1/4" BSPP Male	63mm	50mm	46mm	20mm	18mm	25mm	Mild steel	Plated finish
BPM-MHF-2042	M42x2 - 30S Female	1.1/4" BSPP Male	M42x2 - 30S Female	1.1/4" BSPP Male	65.5mm	50mm	50mm	20mm	22mm	27.5mm	Mild steel	Plated finish
BPM-MHF-2052	M52x2 - 38S Female	1.1/4" BSPP Male	M52x2 - 38S Female	1.1/4" BSPP Male	69.3mm	50mm	60mm	20mm	30mm	25mm	Mild steel	Plated finish
BPM-MHF-2442	M42x2 - 30S Female	1.1/2" BSPP Male	M42x2 - 30S Female	1.1/2" BSPP Male	65.2mm	55mm	50mm	22mm	32mm	22mm	Mild steel	Plated finish
BPM-MHF-2452	M52x2 - 38S Female	1.1/2" BSPP Male	M52x2 - 38S Female	1.1/2" BSPP Male	82mm	55mm	60mm	22mm	29mm	29mm	Mild steel	Plated finish

Key: L overall length, S hex across flats, S1 hex across flats 2, C across corners, D1 bore 1, D2 bore 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
