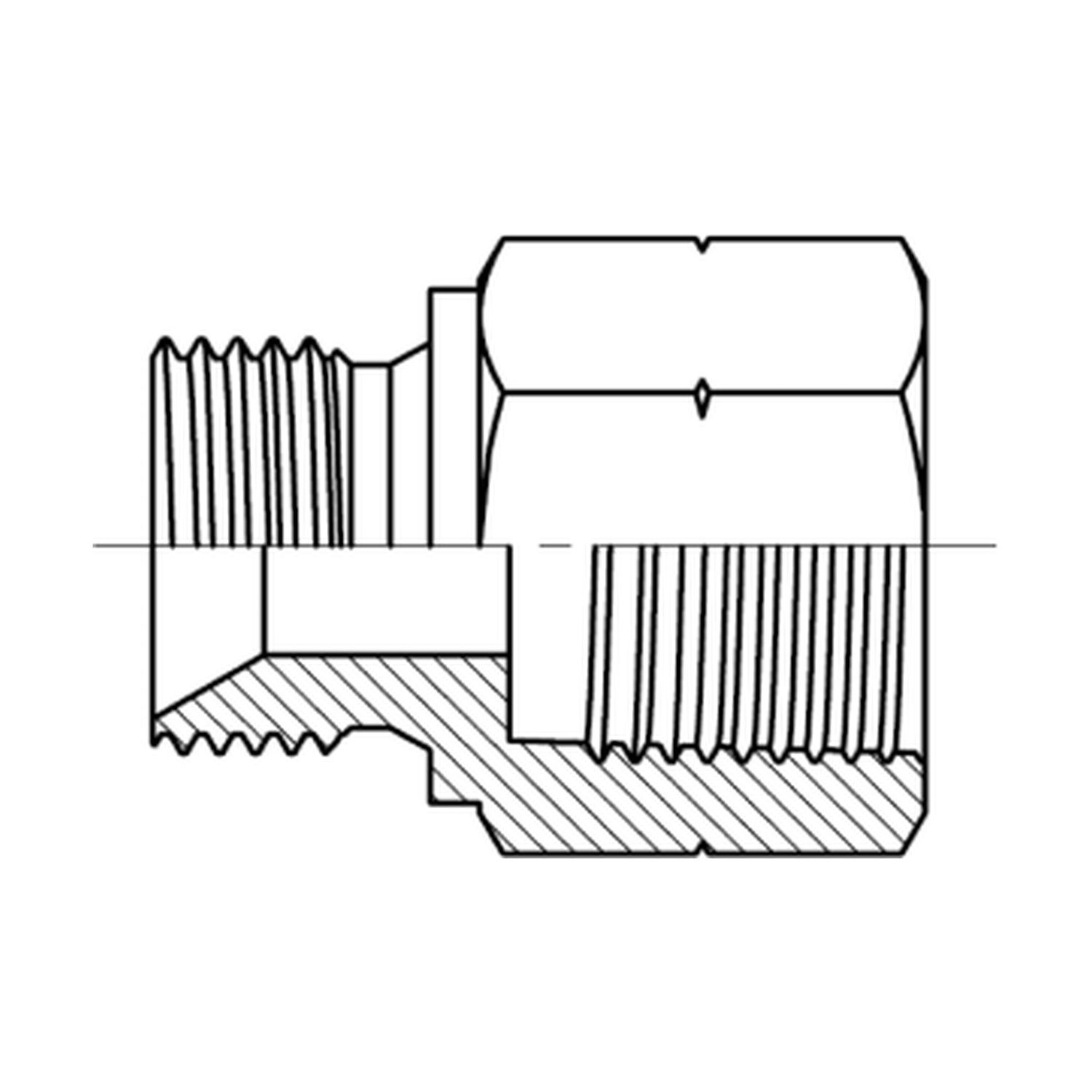

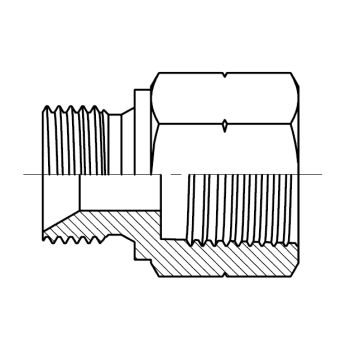

BSP Parallel Male x BSP Tapered Female Straight Adaptor

Parallel BSP male one end, tapered BSP female the other. The converter for the awkward case where a BSPP fitting has to go into a line built around BSPT.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• BSP Parallel Male – BSPP to ISO 228. It seals on a bonded washer against the port face or on a 60° cone, never on the thread itself.
• BSP Tapered Female – BSPT to ISO 7 / BS 21. It seals on the thread interference and must be taped or sealed.

How to Choose

• Two different BSP families on one part. Parallel seals on a washer or cone, tapered seals on the thread with sealant.
• Do not treat both ends the same. Sealant belongs on the tapered end only.
• BSPT and BSPP share thread sizes and pitches but not sealing method, which is exactly why this adaptor exists.

Technicians Advice

Wind the tapered female onto its male hand tight plus two or three turns and stop. A tapered joint wedges as it goes, and chasing a weep with more torque splits the female rather than sealing it.

Where You’ll Find It

• BSP Parallel Male – Valve and manifold ports on Australian, British and Asian-built equipment, and most locally made hose ends. The default port thread on Australian truck and agricultural hydraulics.
• BSP Tapered Female – Female side of local pipework, adaptor blocks and gauge manifolds.

Cross-Reference

• BSP Parallel Male – BSPP to ISO 228 / BS 2779, written G. Also called BSP parallel or gas thread.
• BSP Tapered Female – BSPT to ISO 7 / BS 21, written Rc for female.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	Material	Finish
BPM-BTF-1616	1" BSPP Male	1" BSPT Female	Mild steel	Plated finish

Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)
