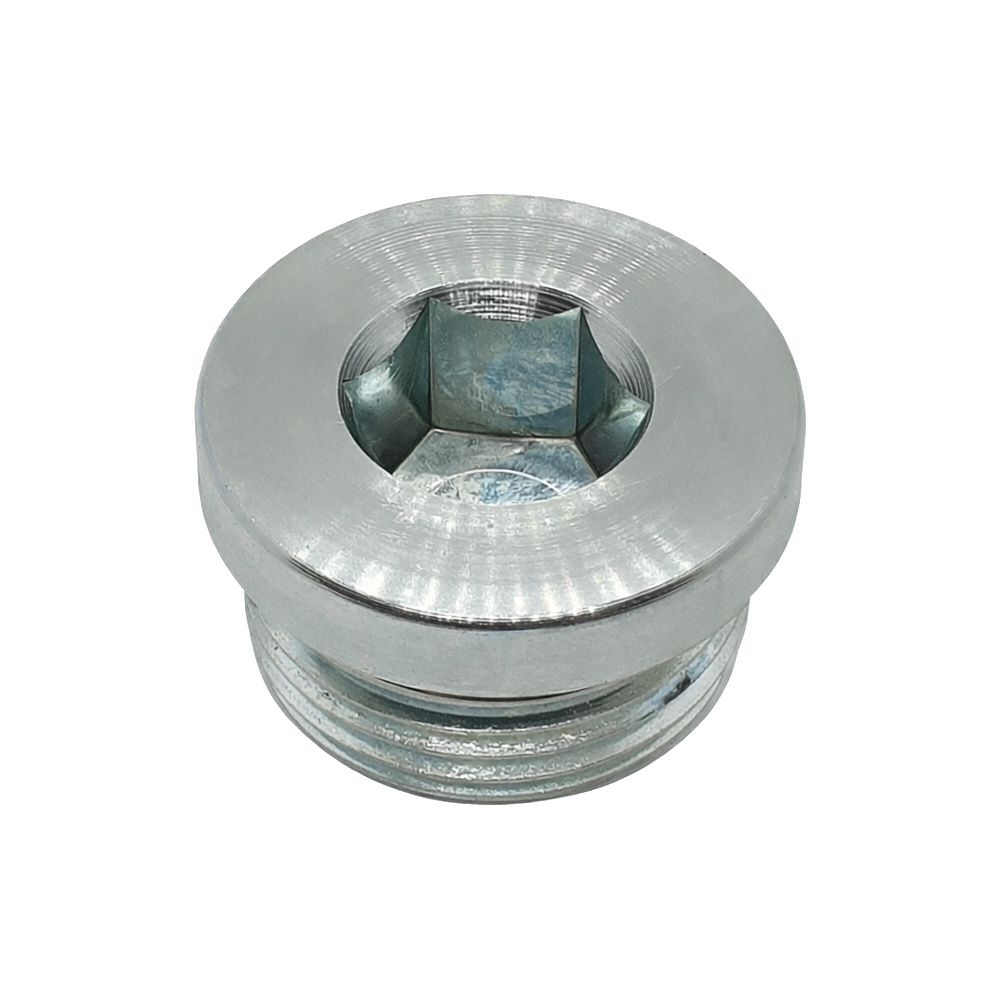

BSP Parallel Male Countersunk Blanking Plug

A BSP parallel plug with an internal hex head that sits flush in the port. For blanking a BSPP port where a hex head would foul something.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Why You Need JIC Plugs Caps & O Ring Kit When Doing Hydraulic Repairs

Thread Standards

• BSP Parallel Male – BSPP to ISO 228. It seals on a bonded washer against the port face or on a 60° cone, never on the thread itself.

How to Choose

• A plug is male and blocks a female port. A cap is female and covers a male end. Work out which one the open connection is before you order.
• Countersunk means the head takes an internal hex key and sits flush or below the port face. Handy where there is no room for a spanner, but you need the right allen key on the truck.
• Still needs a bonded washer or cone seat. Countersunk changes the head, not the sealing method.

Technicians Advice

Countersunk plugs get rounded out by a worn allen key more than any other fitting, because there is no flat to grab if the socket goes. Use a good key, seated fully, and do not run it in on a rattle gun.

Where You’ll Find It

• BSP Parallel Male – Valve and manifold ports on Australian, British and Asian-built equipment, and most locally made hose ends. The default port thread on Australian truck and agricultural hydraulics.

Cross-Reference

• BSP Parallel Male – BSPP to ISO 228 / BS 2779, written G. Also called BSP parallel or gas thread.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	L	Material	Finish
BPM-CS-02	1/8" BSPP	12mm	Mild steel	Plated finish
BPM-CS-04	1/4" BSPP	17mm	Mild steel	Plated finish
BPM-CS-06	3/8" BSPP	17mm	Mild steel	Plated finish
BPM-CS-08	1/2" BSPP	19mm	Mild steel	Plated finish
BPM-CS-12	3/4" BSPP	21mm	Mild steel	Plated finish
BPM-CS-16	1" BSPP	22mm	Mild steel	Plated finish
BPM-CS-20	1.1/4" BSPP	22mm	Mild steel	Plated finish
BPM-CS-24	1.1/2" BSPP	22mm	Mild steel	Plated finish

Key: L overall length. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)
