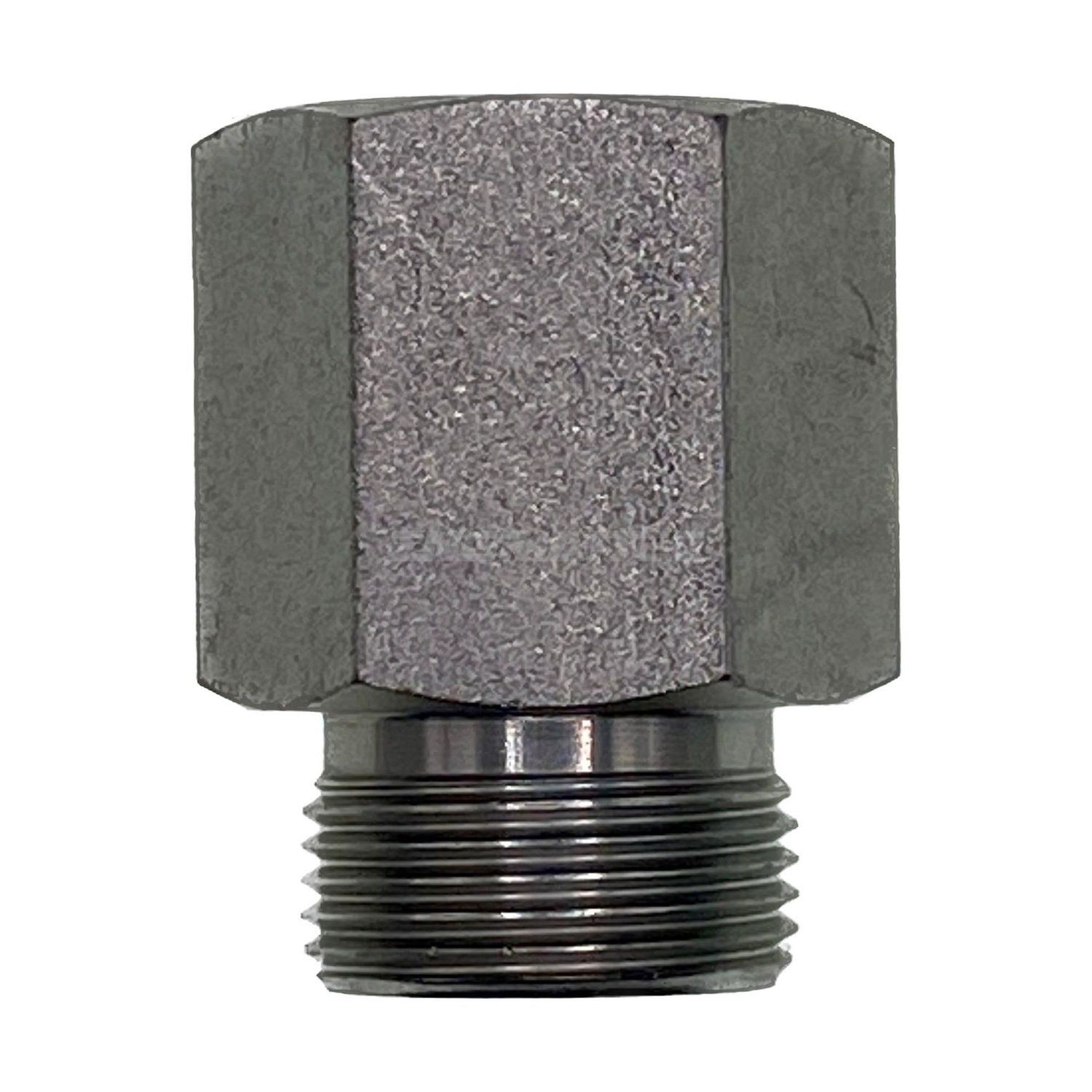

BSP Parallel Female x Metric Light (L) Male Straight Adaptor

BSP parallel female one end, light series metric 24° cone male the other. The usual way an L series return, drain or pilot line lands in a BSPP port.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• BSP Parallel Female – BSPP to ISO 228. It needs a bonded washer or a cone seat to seal, because a parallel thread cannot seal on itself.
• Metric Light (L) Male – DIN 2353 / ISO 8434-1 24° cone, light series. It seals on the 24° cone, normally with an O-ring captured in the cone.

How to Choose

• Light (L) series is the lower rated metric range. Check the circuit before using it on a pump outlet.
• The BSPP female seals on a bonded washer or a 60° cone in the mating part, not on the thread.
• L and S series share some thread sizes and the cones differ. Go by the series on the tube nut.

Technicians Advice

Small metric cones take very little torque to seal and very little more to ruin. Bring it up until the cone loads and stop. If it still weeps, the fault is the cone face or the tube flare, not the torque.

Where You’ll Find It

• BSP Parallel Female – Female side of BSPP manifolds, adaptor blocks and gauge assemblies on local equipment.
• Metric Light (L) Male – European-built machinery – Liebherr, Wacker Neuson, Atlas, Sennebogen, Manitou – and imported tube assemblies. Light series suits return, drain and pilot lines.

Cross-Reference

• BSP Parallel Female – BSPP to ISO 228 / BS 2779, written G.
• Metric Light (L) Male – DIN 2353 / ISO 8434-1 24° cone, light (L) series. Parker call this range EO and EO-2, historically branded Ermeto. Also called bite type.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	F1	F2	L	S	C	D	Material	Finish
BPF-MLM-0212	M12x1.5 Metric - 6L	1/8" BSPP	M12x1.5 Metric - 6L	1/8" BSPP	26mm	14mm	10mm	4mm	Mild steel	Plated finish
BPF-MLM-0414	M14x1.5 Metric - 8L	1/4" BSPP	M14x1.5 Metric - 8L	1/4" BSPP	31mm	19mm	10mm	6mm	Mild steel	Plated finish
BPF-MLM-0822	212x1.5 Metric - 15L	1/2" BSPP	212x1.5 Metric - 15L	1/2" BSPP	38mm	27mm	12mm	12mm	Mild steel	Plated finish
BPF-MLM-0826	M26x1.5 Metric - 18L	1/2" BSPP	M26x1.5 Metric - 18L	1/2" BSPP	38mm	27mm	12mm	15mm	Mild steel	Plated finish
BPF-MLM-1230	M30x2 Metric - 22L	3/4" BSPP	M30x2 Metric - 22L	3/4" BSPP	43mm	36mm	14mm	19mm	Mild steel	Plated finish
BPF-MLM-1636	M36x2 Metric - 28L	1" BSPP	M36x2 Metric - 28L	1" BSPP	45.5mm	41mm	14mm	24mm	Mild steel	Plated finish
BPF-MLM-2045	M45x2 Metric - 35L	1.1/4" BSPP	M45x2 Metric - 35L	1.1/4" BSPP	51.5mm	55mm	16mm	30mm	Mild steel	Plated finish
BPF-MLM-2452	M52x2 Metric - 42L	1.1/2" BSPP	M52x2 Metric - 42L	1.1/2" BSPP	53.5mm	60mm	16mm	36mm	Mild steel	Plated finish
BPF-MLM-0416	M16x1.5 Metric - 10L	1/4" BSPP	M16x1.5 Metric - 10L	1/4" BSPP	32mm	19mm	11mm	8mm	Mild steel	Plated finish
BPF-MLM-0618	M18x1.5 Metric - 12L	3/8" BSPP	M18x1.5 Metric - 12L	3/8" BSPP	33mm	22mm	11mm	10mm	Mild steel	Plated finish

Key: L overall length, S hex across flats, C across corners, D outside diameter. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
