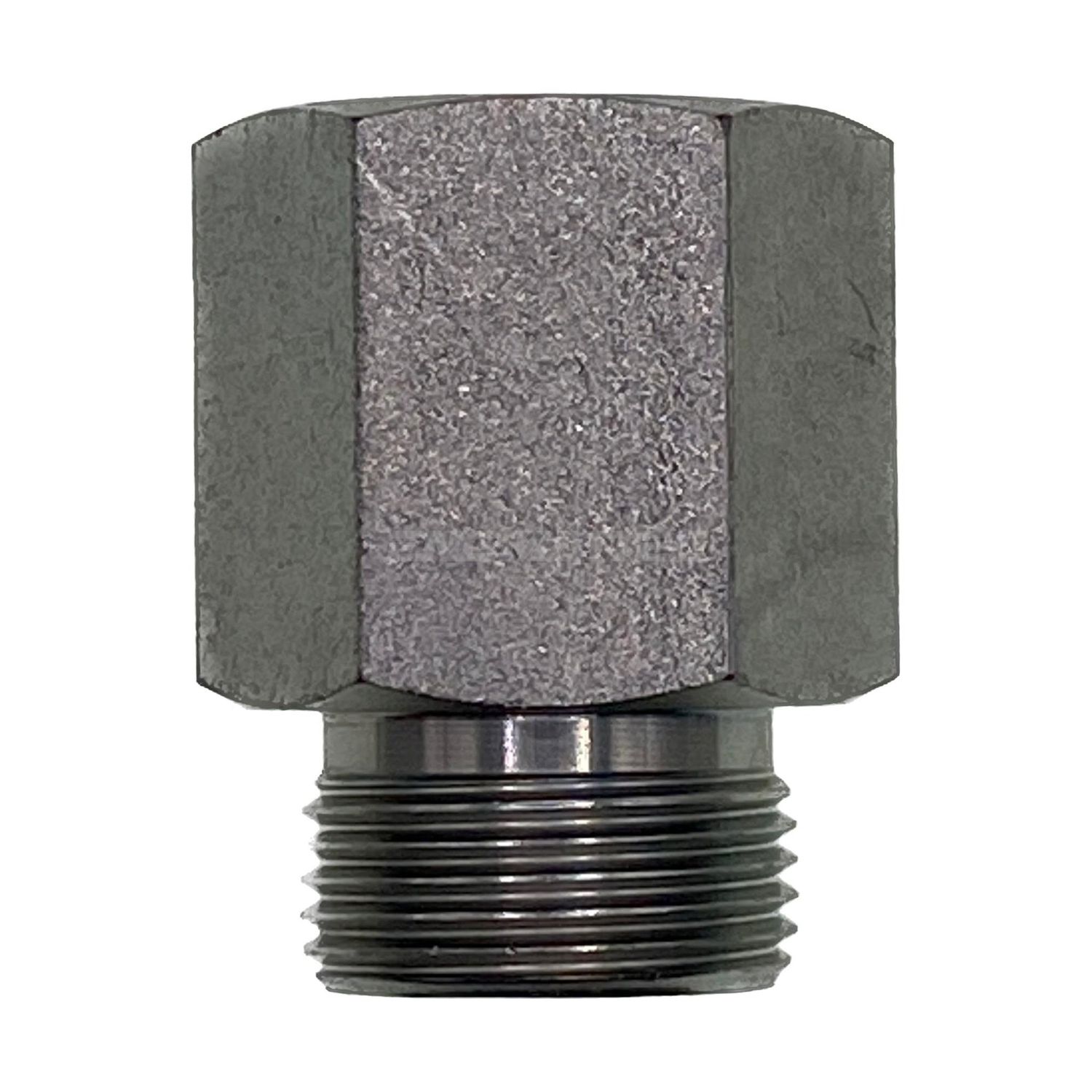

BSP Parallel Female x Metric Heavy (S) Male Straight Adaptor

BSP parallel female one end, heavy series metric 24° cone male the other. Lets a European S series tube run terminate in a BSPP port on Australian or British-built gear.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• BSP Parallel Female – BSPP to ISO 228. It needs a bonded washer or a cone seat to seal, because a parallel thread cannot seal on itself.
• Metric Heavy (S) Male – DIN 2353 / ISO 8434-1 24° cone, heavy series. It seals on the 24° cone and is built for higher pressures than the light series.

How to Choose

• The BSPP female needs a bonded seal washer or a 60° cone in the mating male. A parallel thread does not seal on itself.
• The metric end is heavy (S) series. An S body will not seal in a light (L) port even where the thread starts.
• Check the mating 24° cone for a captured O-ring before you fit. Plain and O-ring cones both exist on the same machine.

Technicians Advice

On the BSPP side, a fresh bonded washer every time. On the metric side, the cone does the sealing and the nut only supplies the load. If it weeps, look at the cone face before you reach for a longer bar.

Where You’ll Find It

• BSP Parallel Female – Female side of BSPP manifolds, adaptor blocks and gauge assemblies on local equipment.
• Metric Heavy (S) Male – European machinery on the pressure side, where working pressures exceed the light series rating.

Cross-Reference

• BSP Parallel Female – BSPP to ISO 228 / BS 2779, written G.
• Metric Heavy (S) Male – DIN 2353 / ISO 8434-1 24° cone, heavy (S) series. Parker EO / EO-2.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	F1	F2	L	S	C	D	Material	Finish
BPF-MHM-0414	M14x1.5 Metric - 6S	1/4" BSPP	M14x1.5 Metric - 6S	1/4" BSPP	33mm	19mm	12mm	4mm	Mild steel	Plated finish
BPF-MHM-0416	M16x1.5 Metric - 8S	1/4" BSPP	M16x1.5 Metric - 8S	1/4" BSPP	33mm	19mm	12mm	5mm	Mild steel	Plated finish
BPF-MHM-0618	M18x1.5 Metric - 10S	3/8" BSPP	M18x1.5 Metric - 10S	3/8" BSPP	34mm	22mm	12mm	7mm	Mild steel	Plated finish
BPF-MHM-0620	M20x1.5 Metric - 12S	3/8" BSPP	M20x1.5 Metric - 12S	3/8" BSPP	34mm	24mm	12mm	8mm	Mild steel	Plated finish
BPF-MHM-0822	M22x1.5 Metric 14S	1/2" BSPP	M22x1.5 Metric 14S	1/2" BSPP	40mm	30mm	14mm	10mm	Mild steel	Plated finish
BPF-MHM-0824	M24x1.5 Metric - 16S	1/2" BSPP	M24x1.5 Metric - 16S	1/2" BSPP	40mm	30mm	14mm	12mm	Mild steel	Plated finish
BPF-MHM-1230	M30x2 Metric - 20S	3/4" BSPP	M30x2 Metric - 20S	3/4" BSPP	45mm	36mm	16mm	16mm	Mild steel	Plated finish
BPF-MHM-1636	M36x2 Metric - 25S	1" BSPP	M36x2 Metric - 25S	1" BSPP	49mm	41mm	18mm	20mm	Mild steel	Plated finish
BPF-MHM-2042	M42x2 Metric - 30S	1.1/4" BSPP	M42x2 Metric - 30S	1.1/4" BSPP	55.5mm	55mm	20mm	25mm	Mild steel	Plated finish
BPF-MHM-2452	M52x2 Metric - 38S	1.1/2" BSPP	M52x2 Metric - 38S	1.1/2" BSPP	60mm	60mm	22mm	32mm	Mild steel	Plated finish

Key: L overall length, S hex across flats, C across corners, D outside diameter. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
