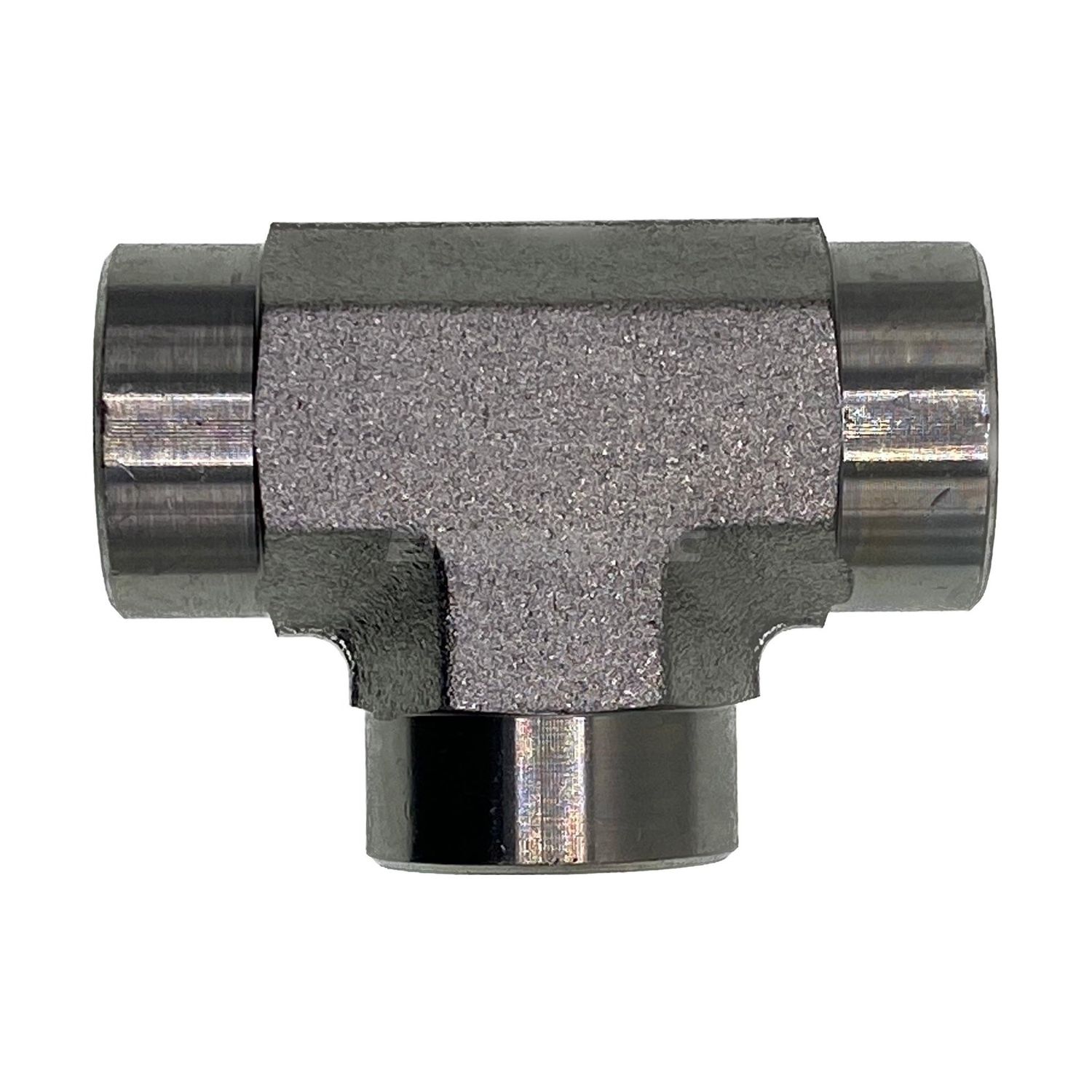

BSP Parallel Female Equal Socket Tee

Three BSP parallel female ports. The socket tee for joining three BSPP male fittings, used to split a line without changing thread standard.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• BSP Parallel Female – BSPP to ISO 228. It needs a bonded washer or a cone seat to seal, because a parallel thread cannot seal on itself.

How to Choose

• All three ports are the same size and thread, so it does not matter which way the tee goes in.
• A parallel female does not seal on the thread. Each male going in needs a bonded washer or a 60° cone seat.
• A BSPT tapered male will bottom part way in and never seal.

Technicians Advice

Three males in, three fresh bonded washers. It is a few dollars of parts holding three joints, so do not reuse a flattened one to save a trip to the drawer.

Where You’ll Find It

• BSP Parallel Female – Female side of BSPP manifolds, adaptor blocks and gauge assemblies on local equipment.

Cross-Reference

• BSP Parallel Female – BSPP to ISO 228 / BS 2779, written G.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	S1	Material	Finish
BPF-BPF-BPF-040404	19mm	Mild steel	Plated finish
BPF-BPF-BPF-060606	24mm	Mild steel	Plated finish
BPF-BPF-BPF-080808	27mm	Mild steel	Plated finish
BPF-BPF-BPF-121212	33mm	Mild steel	Plated finish
BPF-BPF-BPF-161616	41mm	Mild steel	Plated finish

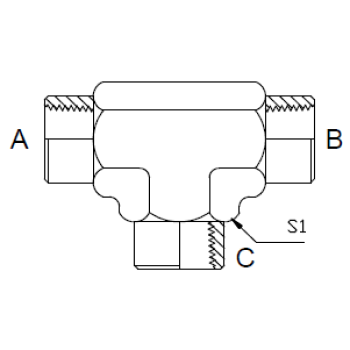

Key: S1 hex across flats 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)
