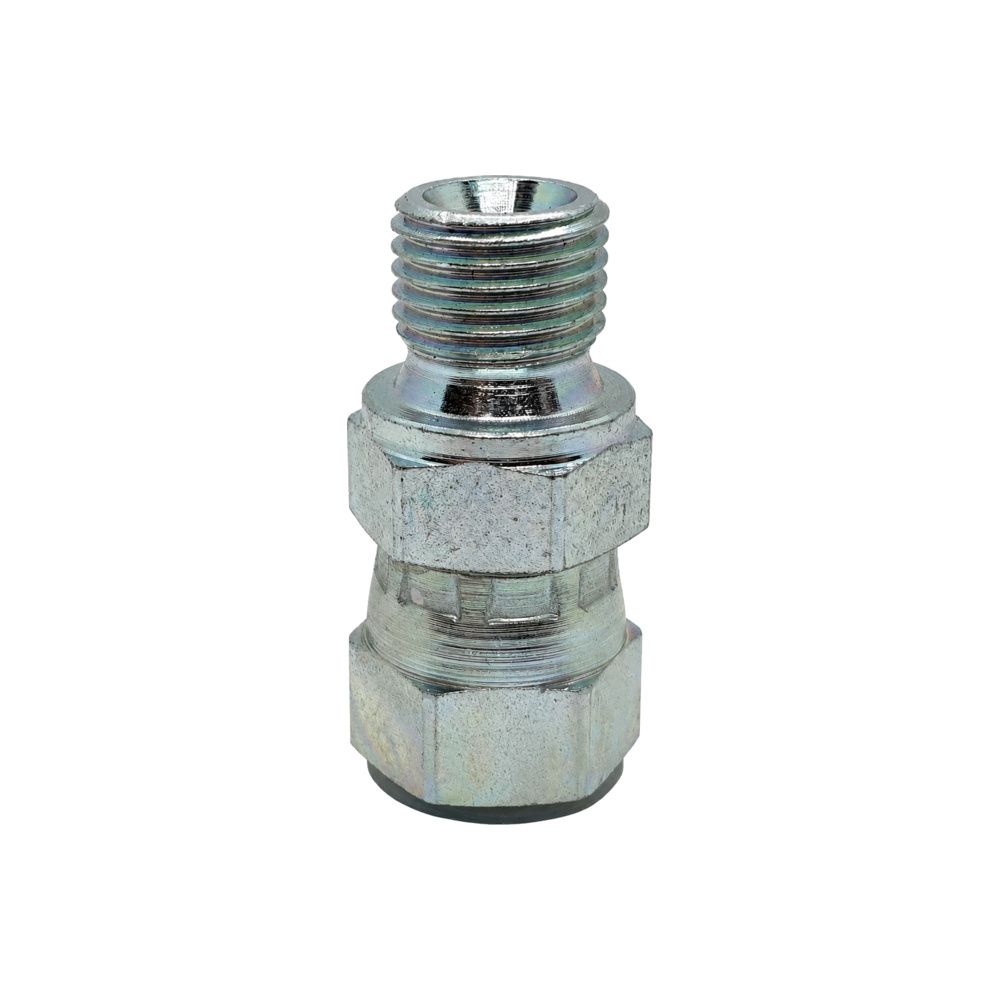

BSP Test Gauge Female x BSP Parallel Male Straight Gauge Adaptor

A BSP gauge port one end and a BSP parallel male the other. Puts a pressure gauge onto a BSPP port for testing or permanent monitoring.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• BSP Test Gauge Female – BSP female sized for a pressure gauge or test point. It seals on the gauge’s own seat or a bonded washer, depending on the gauge fitted.
• BSP Parallel Male – BSPP to ISO 228. It seals on a bonded washer against the port face or on a 60° cone, never on the thread itself.

How to Choose

• The BSPP male end needs a bonded washer or a cone seat in the port.
• Check whether your gauge is a parallel thread with a washer or a tapered thread, because both are sold as BSP gauge.
• Cap the gauge port when no gauge is fitted.

Technicians Advice

Fit the gauge before you pressurise, not by cracking a live port. And take the gauge off once testing is done unless it is rated for continuous service, because a gauge left on a working machine is a failure point that will eventually let go.

Where You’ll Find It

• BSP Test Gauge Female – pressure testing and diagnostics – permanent gauge ports on valve banks and power packs, and temporary test connections during commissioning or fault-finding.
• BSP Parallel Male – Valve and manifold ports on Australian, British and Asian-built equipment, and most locally made hose ends. The default port thread on Australian truck and agricultural hydraulics.

Cross-Reference

• BSP Test Gauge Female – BSP gauge port. Check whether the gauge is a parallel thread with a washer or a tapered thread before you fit it, because both are sold as “BSP gauge”.
• BSP Parallel Male – BSPP to ISO 228 / BS 2779, written G. Also called BSP parallel or gas thread.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.
