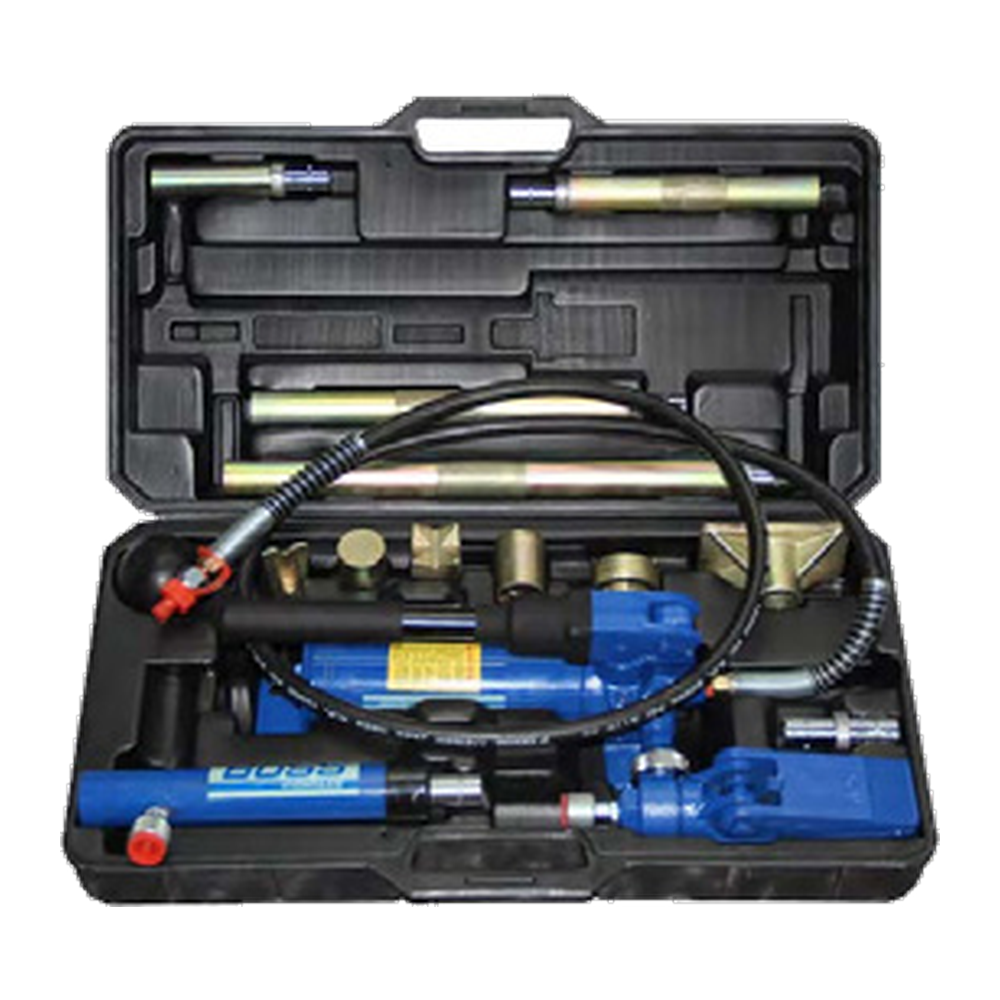

BOSS Porta Power Kit – 4, 10 or 20 Tonne, Hand Pump, Ram, Extensions and Attachments in a Case

One case, one pump, one ram and everything you bolt on the end of it. A porta power kit is the tool that pushes a chassis rail back, spreads a jammed door, straightens a bucket ear or lifts a load in a place a bottle jack will never fit. Three sizes – 4, 10 and 20 tonne – each with the hand pump, hose, cylinder, extension tubes and the full set of heads, bases and toes, packed in a blow moulded case so nothing walks off the bench. Pick the capacity below.

Ways to buy

• PPK4 – 4 tonne, 16 pieces – 4" stroke cylinder, four extension tubes, spreader and the full head set. The panel shop kit.
• PPK10 – 10 tonne, 16 pieces – 6" stroke cylinder and longer tubes. The general workshop kit and the one most people should buy.
• PPK20 – 20 tonne, 15 pieces – two speed hand pump, 5" stroke cylinder, tubes out to 27.5" and a threaded coupling system. Truck, plant and heavy fabrication.
• Need more stroke or more tonnes? – a separate 700 bar hand pump, cylinder and hose will do anything a kit will and go further. See the links at the bottom of this page.
• Spares and extra heads – call us with the kit model and the item number off the diagram on this page.

Pick your porta power kit

Drawings and dimensions

Click any drawing to open it full size.

What is in the box

• PPK4 (16 pieces) – heavy duty hand pump; 6 ft hose; 4 tonne cylinder with 4" stroke; 1/2 tonne spreader; 16", 12", 8" and 4" extension tubes; male connector; flat base; 90 degree V base; wedge head; plunger toe; cylinder toe; rubber flex head; serrated saddle; blow moulded case.
• PPK10 (16 pieces) – heavy duty hand pump; 6 ft hose; 10 tonne cylinder with 6" stroke; 1/2 tonne spreader; 19", 14", 10" and 5" extension tubes; male connector; flat base; 90 degree V base; wedge head; plunger toe; cylinder toe; rubber flex head; serrated saddle; blow moulded case.
• PPK20 (15 pieces) – two speed hand pump; 5 ft hose; 20 tonne cylinder with 5" stroke; 27.5", 20", 10" and 5" extension tubes; lock pin; male connector; threaded coupling; plunger base; toe lift; V head; wedge head; serrated saddle.
• Hydraulic oil is in the pump. Nothing else is required to start work.

Specifications

How to choose

• Panel and light vehicle work? PPK4. It is the lightest to carry and 4 tonne moves more sheet metal than people expect.
• One kit for the whole workshop? PPK10. Ten tonne and a 6 inch stroke covers vehicle, trailer and general fabrication work.
• Trucks, plant, heavy fab? PPK20. The two speed pump takes up the slack fast and then changes over under load, which saves a lot of handle strokes.
• Pushing, not lifting? Remember a porta power ram is single acting – it pushes out under pressure and returns on its spring. Set the job up so gravity is not fighting the return.
• Need more than 20 tonne, or a longer stroke? Buy a separate pump, hose and cylinder. Links at the bottom of this page.

Technicians Advice

The kit lives or dies on the extension tubes. Every join is a hinge, and the more tubes you screw together the more the whole assembly wants to fold in the middle under load – so build the shortest column that will do the job, put the fattest tube nearest the ram, and never leave a partly engaged thread. Get the tubes square to the work before you pump, not after: a column that is out of line will spit a head across the workshop the moment it takes real pressure, and at four tonne that is a serious injury.

Two habits worth building.

Always fit the base that suits the surface – a flat base on flat steel, the 90 degree V base in a corner or on a rail, the serrated saddle where you need bite. Half the porta power accidents in a workshop are a ram slipping off a smooth surface because someone could not be bothered swapping the head.

Crack the release valve slowly. A single acting ram under a spread load comes back fast if you dump it, and whatever you have wedged apart will move.

And the same rule as everywhere else: this is a pushing and spreading tool, not a support. If something has to stay where you pushed it, put steel or cribbing in behind it before you let the pressure off.
