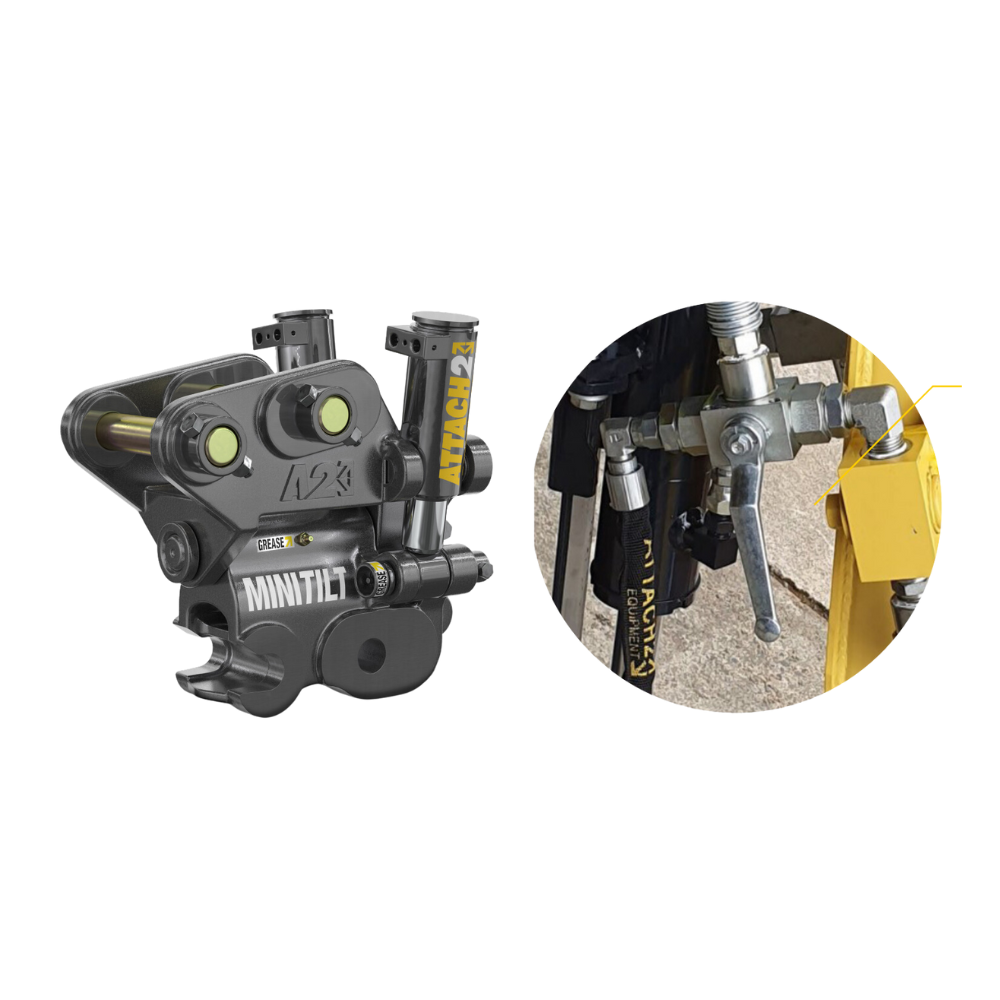

Attach2 Equipment Tilt Hitch Adaptor Valve and Hose Kit.

This kit contains all of the components (listed on page 12 of the user manual) required to plumb the hitch to your machine.

Please note the auxiliary connection is for 1/2" BSPP, if your existing connections are different you may require additional/different adaptors.

Includes:

• 2 x 1.5m, 1/4" 2 Wire Hoses
• 2 x 3 way (L Port) 1/2" BSPP Ball Valves
• 1 x 1/2" BSPP Male/Female Quick Connect Poppet Couplers (Pair)
• 2 x 1/2" BSPT Male x BSPT Male Nipples (ball valve to poppet couplers for third function/boom block)
• 2 x 1/2" BSPP Male x BSPT Male 90° Elbow (ball valve to main auxiliary connection)
• 2 x 1/2" BSPP Male x 1/4" BSPP Male Flow Restriction Nipples (ball valve to tilt hitch hoses)
• 2 x 1/4" BSPP Male x 1/8" BSPP Male Nipple (tilt hitch hoses to tilt hitch cylinders)
• Optional burst sleeve on hoses (+$99) - OPTION NO LONGER AVAILABLE*
