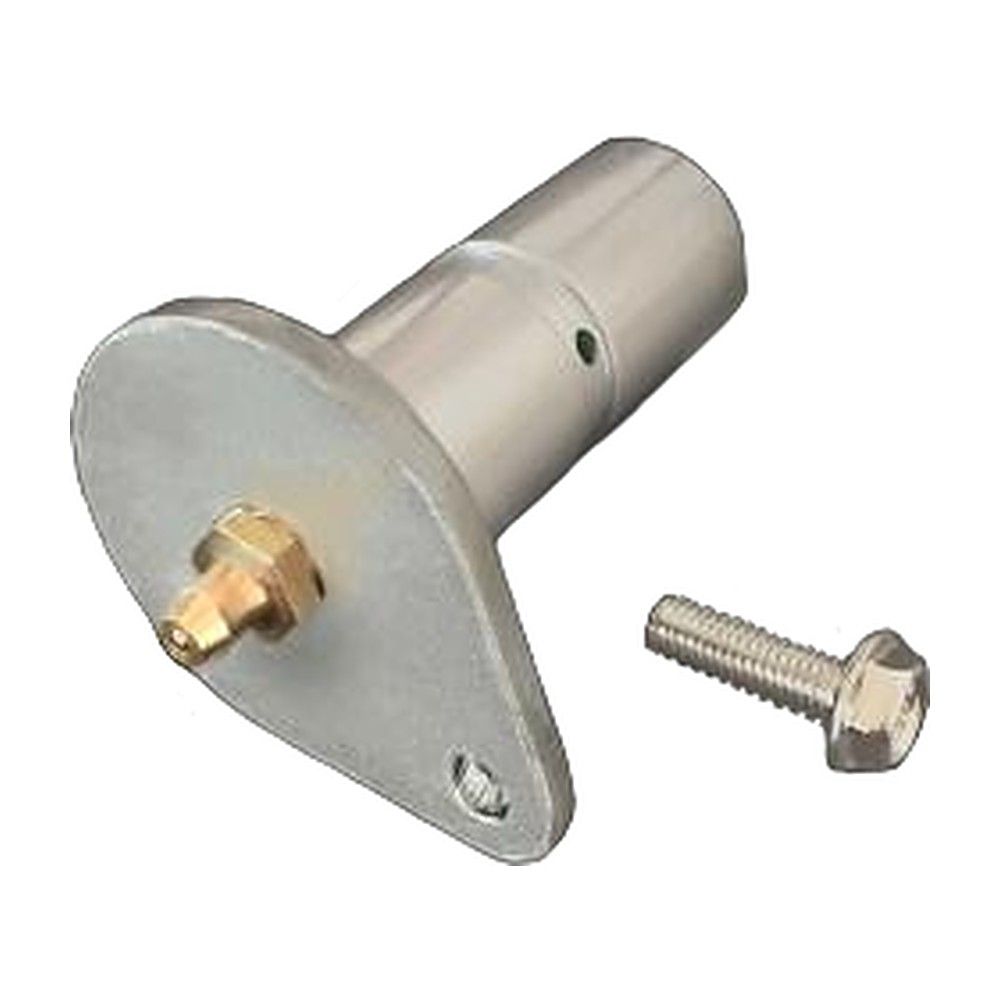

Anti-Rotation Clevis Pin for AG Hydraulic Cylinders, 1" and 1-1/4", Greaseable

A pin with a flanged head that bolts to the clevis so it cannot turn in its bore, and a grease nipple so it can be greased in place. Use it on pivots that move constantly, where a loose pin would spin and wear the clevis holes out.

Ways to buy this part:

• Two sizes off the shelf.
• For a simple pin and clip, see the standard clevis pin listing.

Pick your pin

What is in the box

• 1 x anti-rotation pin with flanged head.
• 1 x grease nipple.
• 1 x M6 x 20 retaining screw.

Specifications

How to choose

• Match the pin to the clevis hole and check the max clevis width.
• You need to drill and tap an M6 thread in the clevis for the retaining screw. This is not done for you.

Technicians Advice

Fit the pin, rotate the flange to where the screw hole clears the clevis ear, and spot through the flange hole before you drill. Drill 5 mm and tap M6, keeping clear of the pin bore. A drop of thread locker on the screw stops it vibrating out. Then grease the pin through the nipple until fresh grease shows at both sides of the eye.

Complete your setup
