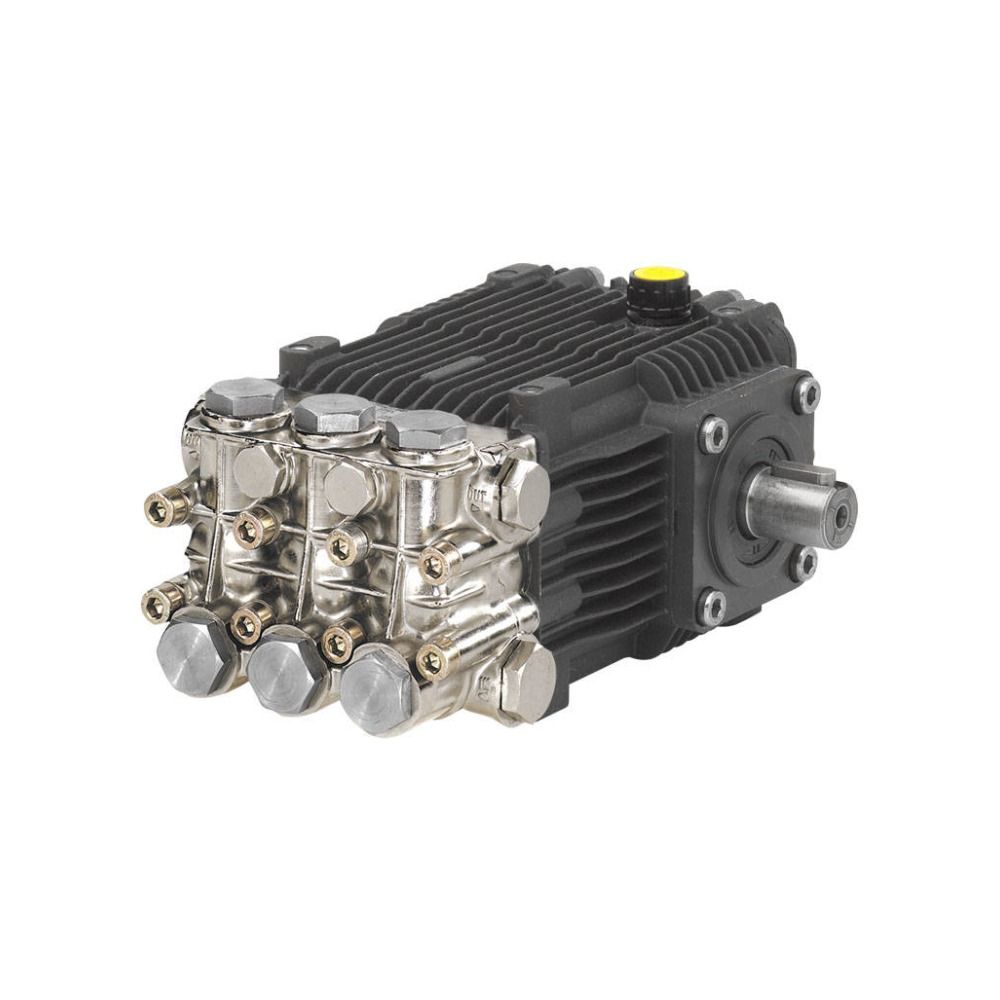

AR RK15.20HN Low Speed Triplex Pump - 15 L/min, 2,900 psi (200 bar)

Compact 1,450 rpm triplex pumps from Annovi Reverberi, sized for single phase and small three phase electric motors. The hollow shaft versions slide straight onto the motor shaft and bolt to the motor face, so there is no belt, no pulley alignment and no guard to build - the pump and motor become one unit. The solid shaft version is belt or coupling driven.

Ways to buy this pump:

The AR RK15.20HN delivers 15 L/min at 2,900 psi (200 bar) running at 1,450 rpm, with a hollow shaft.

Specifications

What is in the box

• Hollow shaft pumps mount directly to the motor face. The flange size and the motor shaft diameter both have to match - a B14 flanged pump will not bolt to a B3 foot mounted motor.
• The RC08.15C suits a MEC100 frame motor and the RC12.10C suits MEC100 to MEC112. Check the frame size stamped on your motor before ordering.
• These are bare pumps. Unloader, gauge, motor and mounting hardware are separate.
• The RC10.12N DX is a solid shaft pump and needs a pulley or coupling - it will not slide onto a motor shaft.

Specifications and drawings

Manufacturer documents for this model, free to download.

Spare parts list (PDF)Manufacturer data sheet (PDF)

Technicians Advice

Tell us the motor you have, or send a photo of the pump you are replacing, and we will confirm which of these bolts up.
