55 piece Hydraulic Hose Emergency Repair Kit for Bobcat "Combos" Skid Steer, Track Loaders, and Excavators.

This Hydraulic Hose Emergency Repair Kit is also Compatible for use with

These kits are essential If you are operating in remote locations far from home be it on the Land or Out at Sea.

If you are fairly handy on the tools this comprehensive DIY Breakdown Repair Kit will save you

time and money, because it will allow you to repair most of the common failures
you will encounter during your day-to-day earthmoving operations.

This Kit may just pay for itself within one or two service callouts.

We have put this kit together based on nearly two decades of experience providing breakdown and callout services to all types of Bobcat Construction Machinery and the attachments they use.

Skid Steer and Track Loaders
S70, S100, T100, S450, T450, S550,
S590, T590, S66, T66.

Mini Excavators
E10, E17, E20, E26, E30, E32, E35, E50.

This Comprehensive Kit Will allow you to

• Disconnect and Plug or Cap the open Ports, on Pumps, Cylinders, Attachments, Hoses & Pipes.
• Remove and replace a hose end or,
• Make a completely new hose assembly or,
• Cut out a damaged or pinched section and join it back together or,
• Replace a Leaking or Damaged Quick Connect Coupler
• All for a fraction of the price of an expensive callout
• and most important of all
• Get you quickly back to work so that you can charge out your operating hours.

• Tilt Bucket and Tilt and Hitch Hoses (excavators)
• 4 in 1 Bucket Hoses (Loaders Internal on the Bucket and also from the Machine to the Bucket)
• Bucket Tilt Hoses (Loaders and excavators)
• Auxiliary Supply and Return Hoses for Augers, Brooms, Rock Breakers, and Trenchers (Loaders and Excavators).
• Dipper Arm Hoses (excavators)
• Boom Lift Hoses (loaders and excavators)
• Pump to Valve Hoses (excavators)
• Drive Hoses (Loaders and Excavators)

High Pressure Two Wire Hydraulic Hose

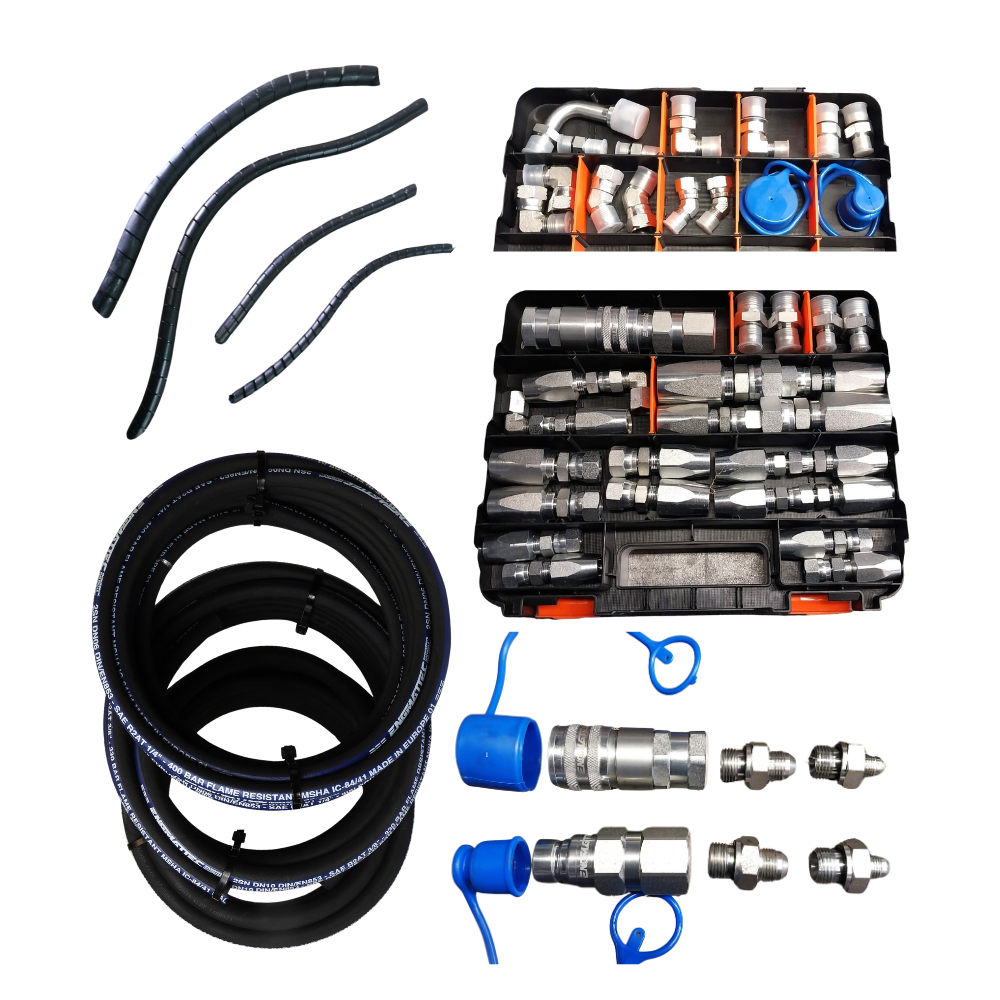

Contents of the 55-Piece Kit

Hydraulic Hose (total of 14 Meters)

• 4 meters 100R2 1/4 inch 5800 psi (400 bar) Two Wire Hydraulic Hose
• 4 meters 100R2 3/8 inch 4800 psi (330 bar) Two Wire Hydraulic Hose
• 4 meters 100R2 1/2 inch 4000 psi (275 bar) Two Wire Hydraulic Hose
• 2 meters 100R2 / 19 3/4 inch 4100 psi (280 bar) Two Wire Hydraulic Hose

Hose Wrap for Extra Protection (total of 14 meters)

(made from HDPE, High-Density Polyethylene)
Hose Wrap Provides Extra protection from Rubbing, Abrasion, and UV Light.

• 4 meters R16SSG HDPE Hose Wrap for 1/4 inch Two Wire Hydraulic Hose
• 4 meters R20SSG HDPE Hose Wrap for 3/8 inch Two Wire Hydraulic Hose
• 4 meters R25SSG HDPE Hose Wrap for 1/2 inch Two Wire Hydraulic Hose
• 2 meters R32SSG HDPE Hose Wrap for 3/4 inch Two Wire Hydraulic Hose

• 4 x 1/4" Hose x 9/16 JIC Female,
• 3 x 3/8" Hose x 9/16 JIC Female,
• 1 x 3/8" Hose x 9/16 JIC Male,
• 2 x 1/2" Hose x 3/4 JIC Female,
• 2 x 1/2" Hose x 7/8 JIC Female,
• 2 x 3/4" Hose x 1-1/16 JIC Female,

• 2 x 9/16 JIC x 1/2 BSPP Male / Male Nipples (for Flat Face Couplers)
• 2 x 3/4 JIC x 1/2 BSPP Male / Male Nipples (for Flat Face Couplers)
• 2 x 9/16 JIC / UNO Male / Male Nipples
• 1 x 9/16 x 3/4 JIC / UNO Male / Male Nipple
• 1 x 3/4 JIC / UNO Male / Male Nipple
• 2 x 9/16 JIC Male / Female 45 Elbows
• 2 x 9/16 JIC Male / Female 90 Elbows
• 2 x 3/4 JIC Male / Female 45 Elbows
• 2 x 3/4 JIC Male / Female 90 Elbows
• 1 x 3/4 JIC Male / Female Long Drop 90 Elbow
• 1 x 9/16 x 3/4 JIC / UNO M/M 90 Elbow
• 1 x 3/4 x 3/4 JIC / UNO M/M 90 Elbow
• 2 x Sets of 9/16 JIC Plugs and Caps (
• 2 x Sets of 3/4 JIC Plugs and Caps
• 2 x Sets of 7/8 JIC Plugs and Caps
• 2 x Sets of 1-1/16 JIC Plugs and Caps

Couplings (Quick Connect) (1 Set = 4 pc )
1 x Pair 1/2 inch Flat Face Dry Break Quick Connect Couplers with Dust Caps
