3 Way Electronic Adjustable Proportional Flow Valve 0 - 113 lt/min

Store/Valves for Controlling and Directing Oil Flow and Pressure

Product Details

Brand: BRAND Hydraulics

Weight: 5.00 kg

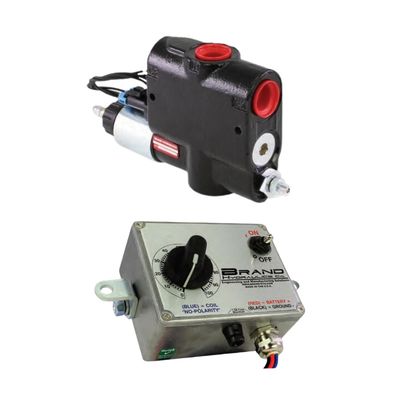

Hydraulic 3 Way Electronic Proportional and Adjustable Flow Control Valve

Made in the USA with Various Flow Options up to 113 LPM

This Hydraulic Pressure Compensated Adjustable Flow control valve ,suits 12V DC or 24V DC

This item would suit any application where there is the need to vary the flow of the oil, thereby adjusting the speed of the function.

A spinning Broom, Blade, Fan or Winch that runs from a hydraulic motor.

The function can be switched on, and controlled remotely with a potentiometer (Optional Item) from your control / operating Position without having to physically go to the valve and physically make the correction to speed up or slow down the function.

FEATURES:

• DIAMOND HONED SPOOL BORE provides consistent spool fit with low leakage.

• O’RING PORTS to eliminate leakage.

• EVERY EFC IS TESTED for shutoff, linearity, max. flow, crack open and pressure compensation.

• STANDARD 3-PORT allows for pressure compensated flow out of the CF and EX ports.

• MANUAL OVERRIDE when electrical power is lost.

• OPTIONAL 2-PORT allows for pressure compensated flow out of CF port.

• OPTIONAL FREE REVERSE FLOW allows fluid to move from the CF port to the inlet.

• OPTIONAL HIGH LIFT RELIEF.

The US made valve has three ports, pressure in, controlled flow out, & the 3rd 'EX port' be plumbed either to a secondary function, or back to tank to drop excess flow.

The "Brand Hydraulics", electronically adjustable proportional pressure compensated flow control is an electronically controlled version of the original FC51 style flow control valve.

The EFC performance as a flow control is very similar to the FC51 because they both use the same spring and compensator spool.

Thus, the control flow port (CF) and the excess flow port (EX) remain usable and is pressure compensated.

The main advantage of the EFC over the FC51 is that the flow can be adjusted proportionally with a solenoid instead of manually.

As the current to the solenoid increases the variable orifice moves proportionally similar to positioning the rotary side lever on the manual FC’s. The solenoid is connected to our EC – series controls which can be sold with the EFC. We also give the choice of a dashpot size, which allows the customer to select a valve that responds to the

It is best to use correct flow range for best results.(please see options from drop down menu)

Please note, this valve DOES NOT have a inbuilt relief valve it is an optional Extra.

Also available, adaptors hose and fittings to assist in your installation please see our other listings.

Please send us a message if you have any questions.(See photos for contacts)

Flow out of the controlled "Flow Port" can be varied between 0 and ... lit/minute depending on model. (Please select from drop down menu. )

Any remaining flow will be bypassed to the " E, Excess Flow" port

This "Excess Flow" can just return to tank.

Once the "R", Regulated Flow has been adjusted and set it will remain nearly constant whether pressure changes on either the regulated or Excess flow ports.

It should be noted that whenever these valves are used to bypass or restrict flow heat will be generated.

Please ensure that if oil temperature exceeds a constant 65 degrees Celsius coolers may need to be installed.

It has a 250 Bar (3750 PSI) maximum operating pressure

Once set, it maintains constant speed regardless of load variation.

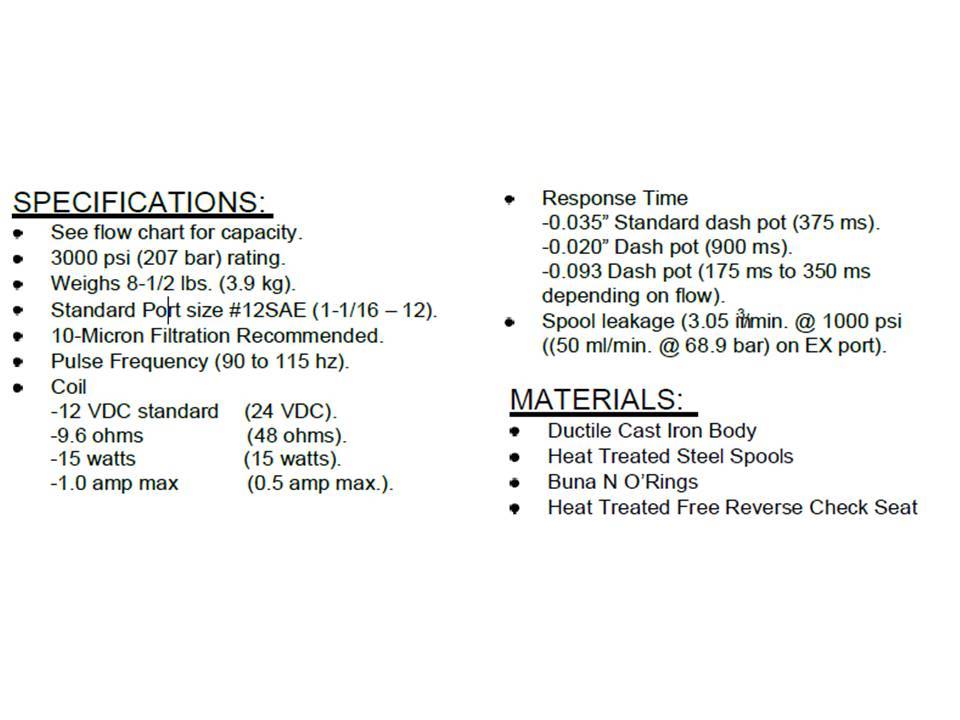

Specifications

Material of Construction = steel

O-rings made of NBR (Buna-N®)

Max Flow Rate = 0-115 liters/min (varies from model selected)

Max Working Pressure = 210 Bar (3000 PSI)

Ports Sizes (all models)

1-1/16" Uno

Operating temperature range: -20 °C to + 120°C

Weight 4.9Kg

We have many types of adaptors threads, hydraulic hose and field fit hose fittings available please see our other listings via our store.

This a High Quality Valve and has many outstanding features, including.

high performance,

high efficiency,

mass flow,

leak resistance.

Features

Compact construction.

Long service life.

Please call 07 5563 1982, or send us a question

Or Email Us at Sales@mhfgc.com.au

Many types of adaptors threads, hydraulic hose and field fit hose fittings available please see our other listings.

IMPROPER SELECTION, INSTALLATION, IMPLEMENTATION AND/OR OPERATION BY ANYONE OTHER THAN PERSONS WITH APPROPRIATE TECHNICAL AND MECHANICAL TRAINING CAN RESULT IN DAMAGE TO EQUIPMENT OR PROPERTY, SERIOUS PERSONAL INJURY OR DEATH. PROPER PRECAUTIONS AND SAFETY PROCEDURES SHOULD BE IMPLEMENTED PRIOR TO INSTALLATION AND OPERATION OF EQUIPMENT.
