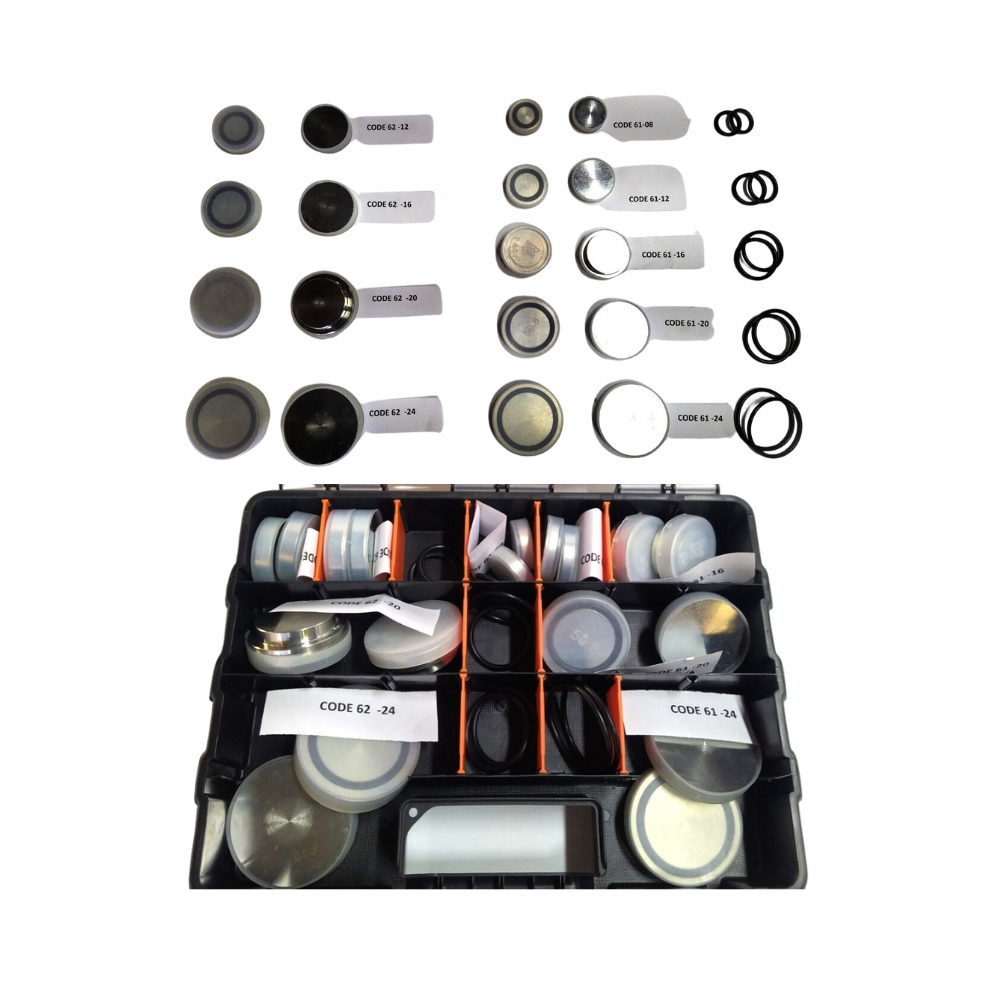

28 Piece SAE Code 61 & Code 62 Hydraulic O ring Flange Port Blanking Kit with Spare set of 90 Duro (N9) O Rings and a Strong Plastic Case.

Also known as Code 61 or Code 62 "Blank Disc", "Blind Flange", Blanking Cap.

SAE Code 61 and Code 62 O Ring Flange Blanks or Caps are used for covering Cylinder Ports, Pump and or Motor ports, stub-out header lines and maintenance work covers.

Once these Code 61 and or Code 62 O Ring Flange caps are properly installed with an O-ring and either a split or solid flange Clamps, the hydraulic system is safe from leaks and contamination and it can also be safely pressurised.

These O ring Flange Plugs and Caps come as a Kit and are packed in an Impact resistant plastic case with Bonus N9 (90 duro) Nitrile "O" rings and a Microfibre Towel.

Using these O ring Flange plugs after: removing hoses ensures that no oil leaks onto the ground or into the machine.

Flange Caps also help to prevent harmful contaminants: such as dirt, dust, rainwater, sand and dust from entering your machine's sensitive hydraulic components such as Pumps, Motors, Valves and Cylinders.

Material of Construction = Zinc Plated Cold Drawn Steel

• O Rings = Nitrile / Buna N9
• 1 x Impact and Oil Resistant Plastic Parts Case
• 1 x Microfiber Cloth

SAE Code 61 Blank Disc Contents

• ½” - 8 Code 61 O ring Flange Blank – qty 2
• ¾” - 12 Code 61 O ring Flange Blank – qty 2
• 1” - 16 Code 61 O ring Flange Blank – qty 2
• 1-1/4” - 20 Code 61 O ring Flange Blank – qty 2
• 1-1/2” - 24 Code 61 O ring Flange Blank – qty 2

SAE Code 62 Blank Disc contents

• 3/4 - 12 Code 62 Plug – qty 2
• 1'' - 16 Code 62 Plug – qty 2
• 1-1/4'' - 20 Code 62 Plug – qty 2
• 1-1/2'' - 24 Code 62 Plug – qty 2
• Full Set of 2 x Extra O Rings, Sizes -8 up to -24
