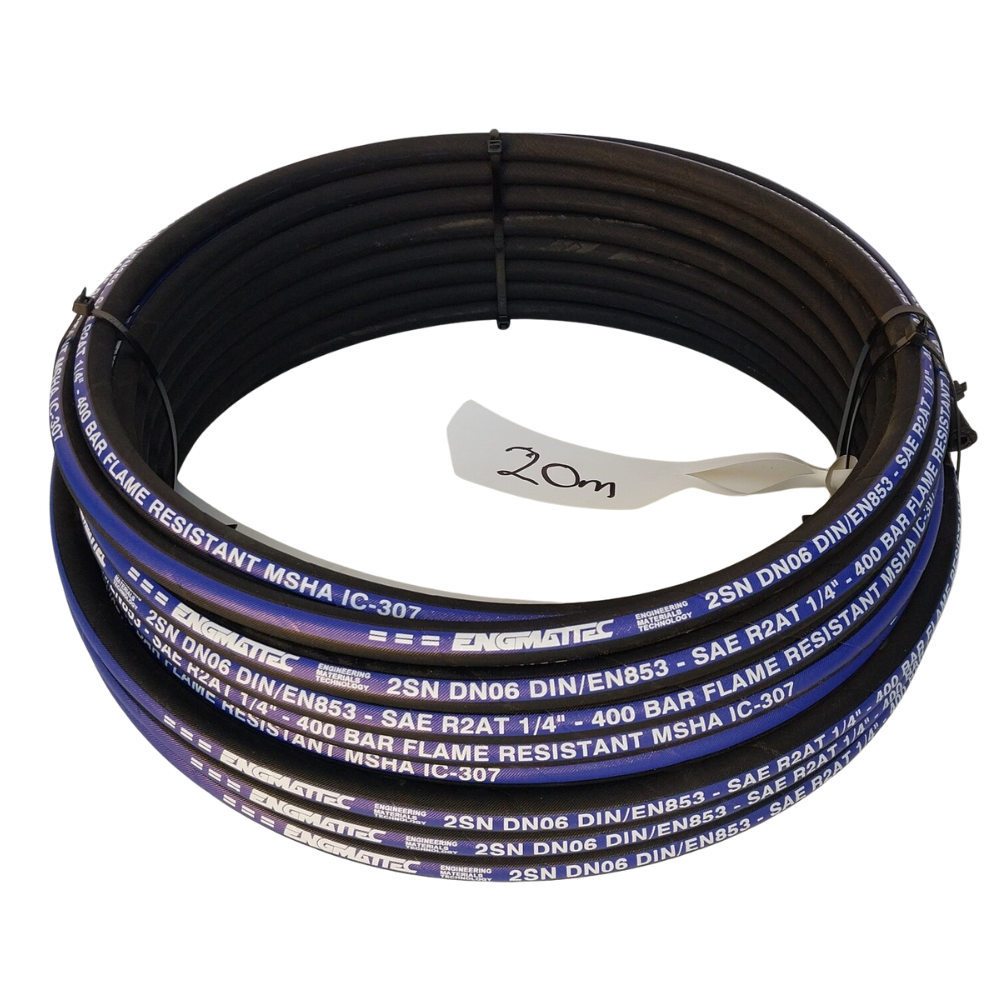

20 Metre Coil of ENGMATTEC SAE100R2 AT Two Wire Hydraulic Hose

Available in the following Hose Internal Bore Sizes, 1/4", 3/8", 1/2" and 3/4" inch.

ENGMATTEC is a High-Temperature SAE 100R2 AT Two Wire Hydraulic Hose
Made to exceed American Standard SAE 100R2AT and European DIN Standard EN853 2SN
It is Reinforced with two layers of Braided High Tensile Steel Wire.

Available in 20-meter coils in the following internal bore sizes.
1/4", 3/8", 1/2" & 3/4"
(also available in 10-m rolls, 50-meter, and 100-meter Reels)

ENGMATTEC is compatible with field fit Reusable hose tails & Crimp on Hose fittings

EngMatTec is the Abbreviation for Engineering Materials and Technology
We Insist our hose is manufactured with the Best Engineering Practices,
Is made from Materials designed for Longevity and Strength,
and the Equipment used to manufacture our hose is Technologically advanced.

EngMatTec Hose is a high-quality made to meet or exceed the performance
of other European and US made brands of two wire Hydraulic Hose.

EngMatTec Hydraulic Hose offers better abrasion resistance because
we specify and insist on a Wrapped Outer Cover
and not the Soft Smooth cover that most manufacturers now use.

EngMatTec has the same or better durability and reliability as big-name brands like Eaton Gates, Parker and Ryco at fraction of the cost.
This non-skive hose is manufactured to comply with German Standard DIN EN 853 2SN as well as
SAE 100R2AT High temp Two-Wire Hydraulic Hose and is compatible with all standard 2-wire crimp-on and Field Fit Reusable Fittings.

ENGMATTEC HYDRAULIC HOSE IS ALSO COMPATIBLE with the following Hydraulic Hose Fittings.
RYCO BITELOK ONE-PIECE CRIMP NON-SKIVE T200 FNP-12 ferrules,
and / Z Series braided hose one-piece "bite the wire" style hose fittings.

Southcott Super Crimp S series stems with FNP-04, FNP-06, FNP-08, and FNP-12 ferrules
as well as Ezi-Crimp Non-Skive One Piece Series E fittings.

CHILD FIELD FIT COUPLINGS Series RMB, RFB, RMJ, RFJ, with BN2-12 non-skive Bodies.
RYCO FIELD ATTACHABLE L00 SERIES LOO-12 FERRULES and 600 SERIES INSERTS.

TAIPAN K SERIES ONE-PIECE NON-SKIVE HOSE TAILS
K12JF, K12JM and K12BF, K12BM or
Field Attachable D Series eg D12 Tails and D2 Series Bodies eg D2-12 Body.

Construction
Synthetic rubber inner tube with Two layers of braided high tensile steel wire reinforcement
and a wrapped, Oil, Ozone, weather, and abrasion-resistant synthetic rubber outer cover.

Applications
High-pressure service with petroleum base hydraulic fluids,
Hot and Cold water, Water-glycol, water-oil, Compressed Air, Fire-resistant hydraulic fluids,
hot oil grease, lubricants, crude, and fuel oils.
For air applications above 100 PSI, the cover should be pin pricked.

Need another hose size, field fit reusable fittings couplers, and or adaptors for your application?
Contact us on

Email: sales@hydraulic.online

Phone: 07 5563 1982
Hours: QLD time 8 am to 4 pm Monday - Friday, excluding public holidays
If you have any questions please don’t hesitate to contact us
Best regards,
Hydraulic.Online

Improper Selection, Installation, Implementation, And/Or Operation By Anyone Other Than
Persons With Appropriate Technical And Mechanical Training Can Result In Damage
To Equipment Or Property, Serious Personal Injury, Or Death.
Proper Precautions And Safety Procedures Should Be Implemented
Prior To The Installation And Operation Of Equipment.
