Heavy Duty Bushed End Cylinder with 63 mm bore pressure rated to 210 Bar (3,045 PSI).
Manufactured with 1-1/2" inch (40 mm) diameter Hard Chromed Rod.

Large Machined Bushes at each end of the cylinder are designed to fit chunky
1-1/4" inch (31.75 mm) diameter hardened Steel Pins.

These 2-1/2" (63 mm Diameter) Cylinders will generate 6.7 Tons of push force: at 210 bar (3,045 psi)

Suitable for Heavy Duty Industrial and earthmoving Applications that experience continuous Shock as well as high side loads.
Available in various strokes from 6" to 24".

Why Bushed End Cylinders are better than an Agricultural Style Clevis End Cylinders.

The choice between a Bushed End and a Female Clevis End Cylinders will usually be about the type of job application, the expected stress, the required alignment accuracy, and the expected life of the machine.

Bushed End Cylinder specifications make it superior for high-demand, non-agricultural machinery applications due to its strong and tough design and greater resistance to Side Loads.

Primary Advantages of Bushed end Cylinders
Exceptional shock resistance, load holding, and longer service life under high side-load stresses.

Connection Style
Bushed End Cylinders feature precision-machined holes and some models even come with a press-fit steel bush, Bushed end Cylinders are typically designed for tighter tolerances, and accurate pin fits.

Material / Machining
Precision materials Strong Medium Carbon Steel (EN8D/C45), with all surfaces / pins machined to tighter tolerances (D9, 3.2um Ra).
Fully machined rod and barrel bushes.

Side Load/Shock
Better at handling side-load stress and shock loading due to the tight machining and manufacturing tolerances as well as strong and tough bush materials together with the provision for High Pressure Grease Lubrication.

Pin Wear
The replaceable hardened steel bushes can be inserted and replaced, extending the cylinder's life. the 1-1/4" Pin is held tightly, reducing wear.

Ideal Application
Industrial machinery, Heavy Construction, Earthmoving, Mining, Forestry, or fixed-plant applications where precision, durability, and a long service life under high stress can be expected.

Key Features & Benefits of Bushed Cylinders

Feature - Specification / Benefit

Industrial Pressure Rating: - 210 Bar (3,045 PSI) Continuous Working Pressure.

Seals: - Pressure rated for a Maximum of 415 Bar (6,000 PSI).

Superior Durability: - Toughened & Induction Hardened Chromed Rod with 20 to 30 Microns of hard chrome for superior corrosion resistance and longevity.

Precision End-Bush: - Rod End and Barrel Bush are fully machined from high-tensile Steel, designed and built to providing a precise and renewable pivot point.

Advanced Sealing: - Features Double Acting "Hallite" K-DAS Piston Seals for positive displacement and exceptional Shock and Load Holding resistance under all pressure situations.

Tube Quality: Cold Drawn High Tensile Seamless Steel Tube, accurately honed to ensure smooth, precise motion and extended seal life.

Service Access - 3-Port Design allowing for simple, easy fitting and optimal hose routing around machinery brackets and mounting points.

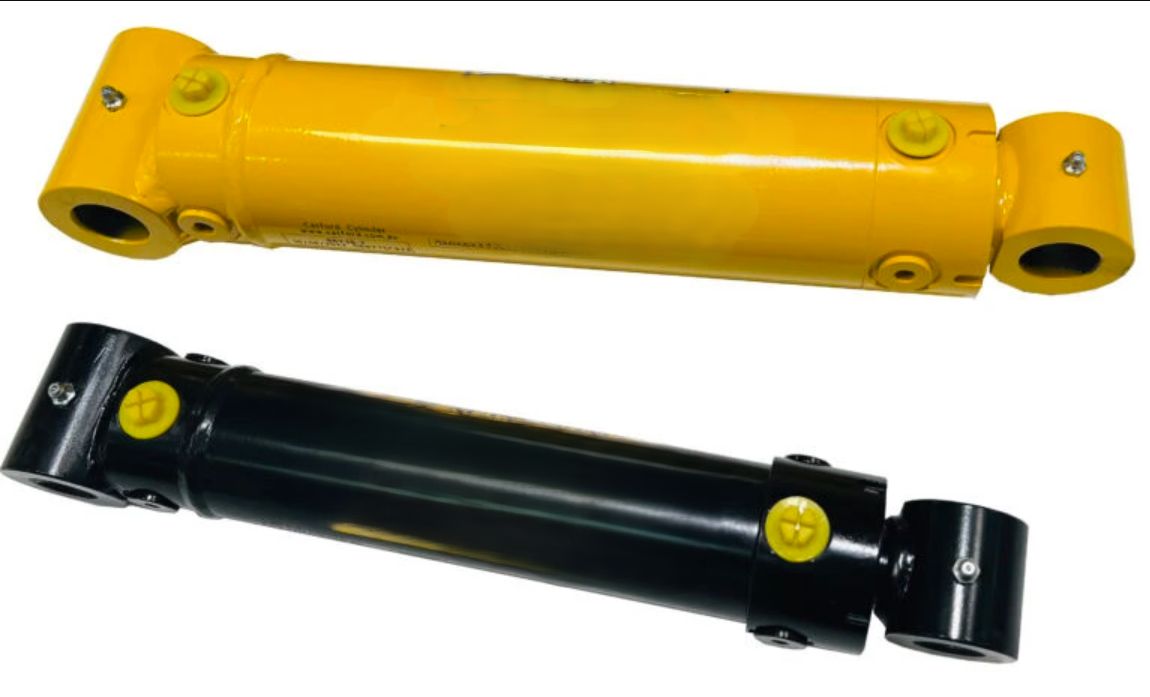

Colour Options: - Available in Industrial Gloss Yellow or Industrial Gloss Black.

Technical Specifications (2.5" Inch 63 mm Bore Range)

Parameter - Specification

Cylinder Type: - Double Acting, Bushed End (on Rod and Barrel ends)

Bore Size: - 2-1/2" Inches (63 mm)

Rod Material: - 40 mm diameter High Strength Medium Carbon Steel (EN8D/C45) - Toughened & Induction Hardened and hard Chrome plated

Tube Material: - Cold Drawn Seamless Precision Steel Tube (DS ST52/E355)

Rated Pressure: - 210 Bar (3045 PSI)

Max Seal Temp: - minus 30°C to +110°C

Machining Standards: Pin holes to D9 tolerance, Threads to 2A/B specification.

Available Stroke Lengths & Part Numbers

Ideal Applications for Bushed End Cylinders

• Mining and Earthmoving Equipment
• Heavy-Duty Industrial Presses
• Forestry Machinery
• Fixed Plant/Factory Automation
• Any application requiring maximum durability and precision under load.
