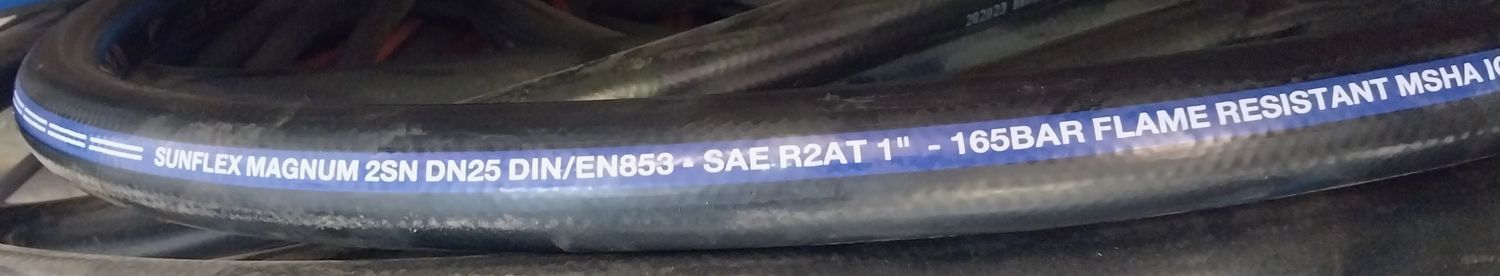

Flexible High Pressure Non Skive Two Wire Hydraulic Hose with a 1" inch bore Flame Resistant MSHA Smooth Cover .

Pressure rated to 165 bar = (2,400 psi)
Super flexible construction allows this hose to have a minimum bend radius of 300 mm

Ideal For High pressure service this compact hose has the Strength and Flexibility MAGNUM.

Construction

Synthetic rubber inner tube with Two layers of braided high tensile steel wire reinforcement
and a Smooth Extruded, Oil, Ozone, weather and abrasion resistant synthetic rubber outer cover.

We are also able to make custom hose assemblies with crimp or 'swage' on hose fittings.

Applications
High pressure service with petroleum base hydraulic fluids, water,
Air, Water-glycol,water-oil, fire resistant hydraulic fluids, hot oil grease, lubricants,
crude and fuel oils.
Please note for Compressed air applications above 100 psi
(8 bar) the outer cover should be pin pricked.

Specifications

Pressure Range

• Working Pressure: 2,400 PSI / 165 bar
• Minimum Burst Pressure: 9,600 PSI (Minimum)
• Range of Temperature: -40⁰C to + 100⁰C (intermittent to 120⁰C)
• Minimum Bend Radius: 300 mm
• Weight: 1.2 KG/Mtr
